A1410 Blade

The following list specifies features of the A1410 blade.
• Intel® Q965 Intel Express Chipset.
• Two Ethernet ports.
• One 15-pin D-subminiature female video port (DA15F).
• Two USB ports.
• Chassis and standalone operation.
• Four DIMM sockets supporting:
– 8 GB maximum total system memory using DDR2 667 or DDR2 533 DIMMs.
– 4 GB maximum total system memory using DDR2 800 DIMMs.
– Minimum total system memory: 512 MB.
– Non-ECC DIMMs.
– DDR2 800, DDR2 667, or DDR2 533 MHz SDRAM DIMMs.
– DDR2 800 DIMMs with SPD timings of only 5-5-5 or 6-6-6 (tCL-tRCD-tRP).
• Supports user ports compatible with PC–over–IP® (PCoIP®) technology.
• Front-mounted LCD:
– Displays last three number of serial number by default.
– Capable of displaying user-specified text through ClearCube Sentral.
– Backlight blinking to enable blade identification.

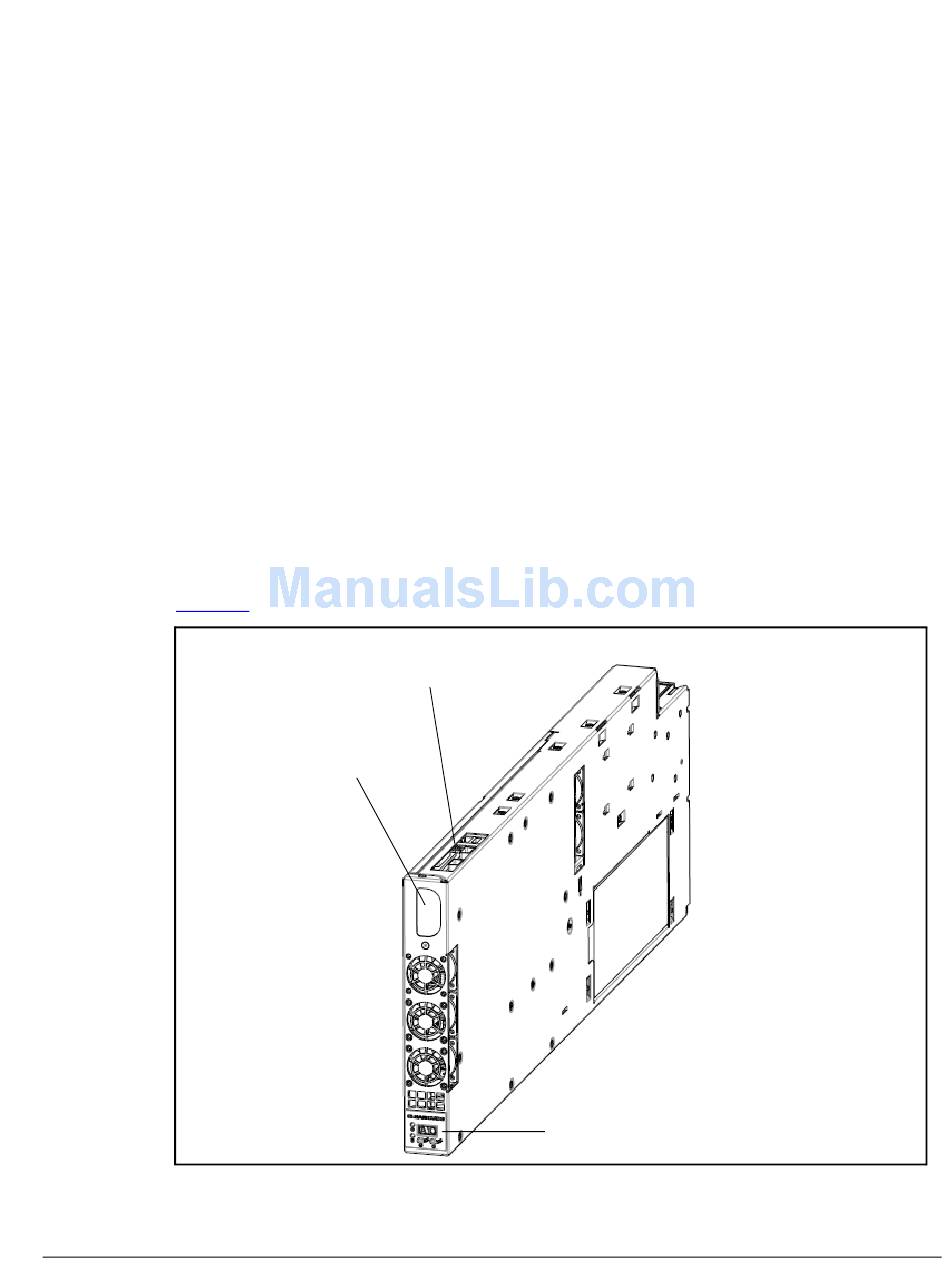

Figure 4.on page 5 shows the side view of an A1410 blade.
Connectors for Configuration
Handle
PS/2, VGA and USB
outside of Chassis
Figure 2. A1410 blade
LCD Bezel
A–Series PC Blades • 3
