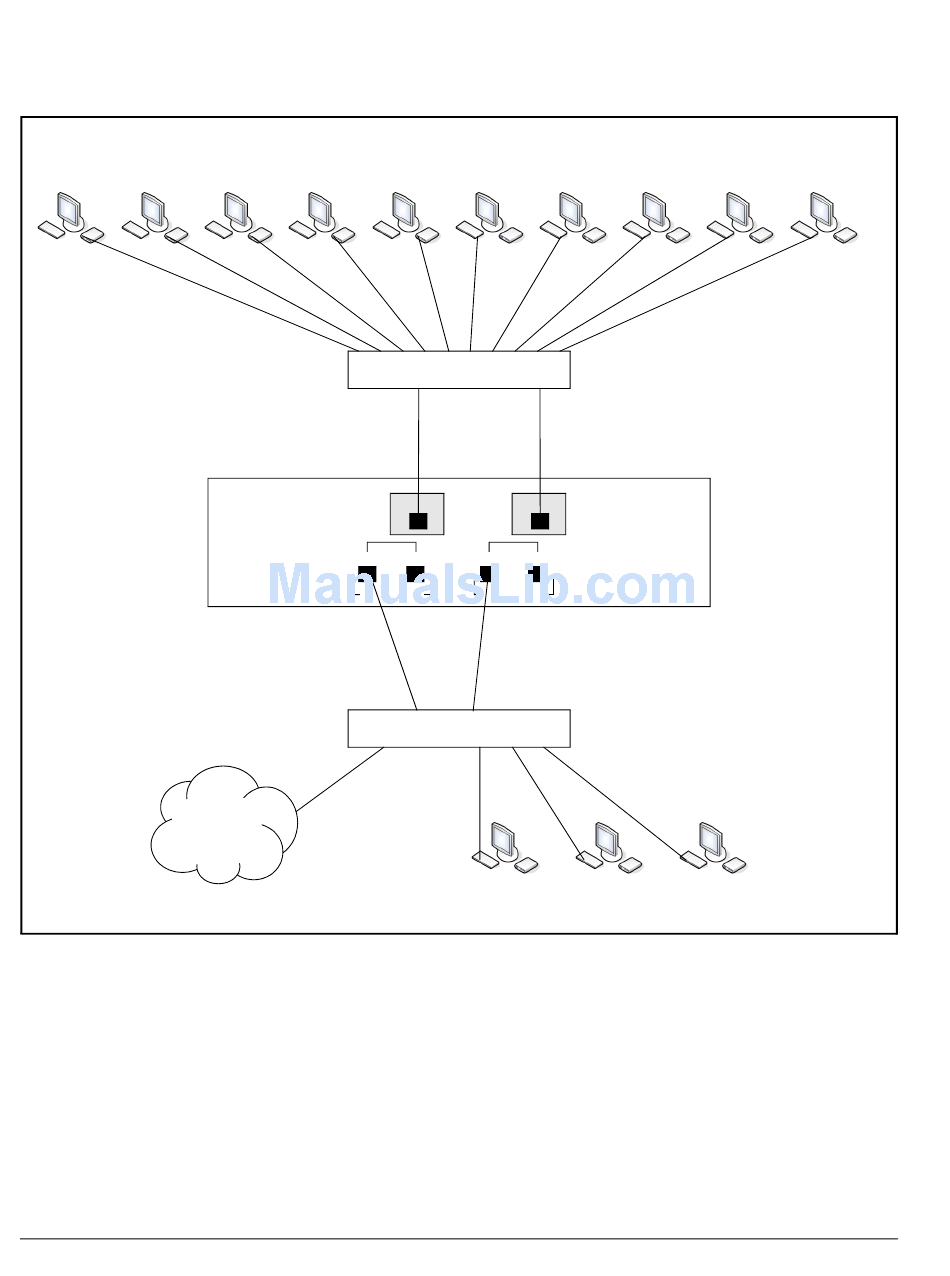

The following figure shows typical cabling configuration between an A3100 chassis with A1410
blades that is optimized for I94x0 user ports, taking advantage of the PCoIP ports on the A1410
blades (A1410 blades do not support the secondary Ethernet ports on A3100 chassis).
I94x0 User Ports and Peripherals
PCoIP Network Switch
A3100 Chassis with
10 A1410 Blades
PCoIP PCoIP
. . . . . . . .
PRI SEC PRI SEC
BLADE 5 BLADE 6
Data Network Switch
Non–PCoIP–Based User Ports
Data
Network
I8x20 I8330 e100
Figure 12. A3100 chassis cabling optimized for I94x0 user ports
