Installing a Blade in Chassis
To install an A–Series blade, perform the following steps.
1. Remove the front bezel on the chassis by pressing in on the latch located on the
upper-right side of the chassis.
2. Tilt the bezel forward and lift it free from the chassis.
3. Orient each blade right-side up with the D-shaped cutout in the front panel facing up, and
then slowly insert the blades into the chassis by lining up the blade edges with both the top
and bottom guides in the chassis.

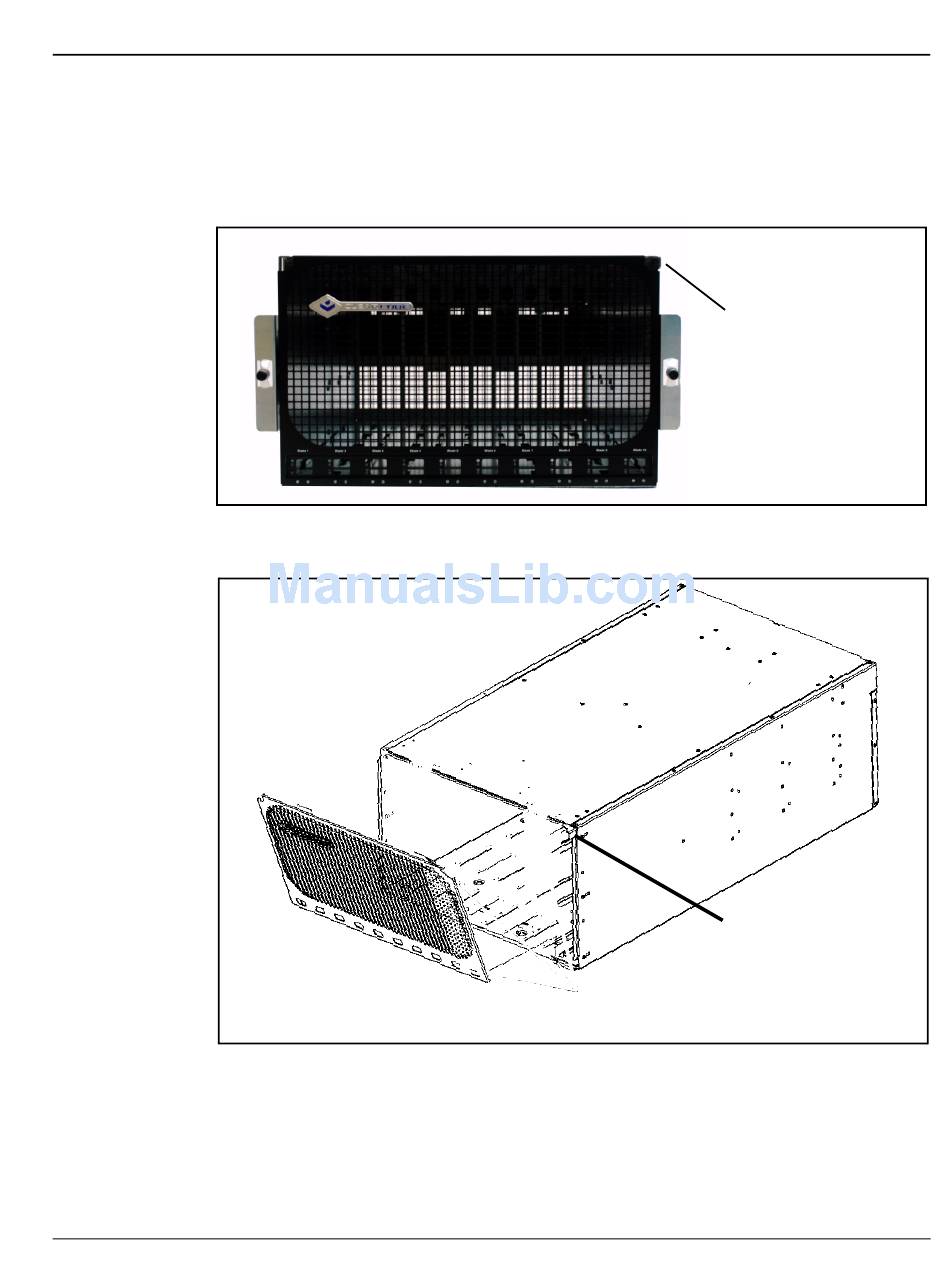

Figure 25. A3100 chassis and front bezel latch
Figure 26. A3000 chassis and front bezel latch
Front bezel latch
Front Bezel latch
Installing a Blade in Chassis
• 39
