The following figure shows a rack containing A3000 chassis and A1010 blades.

User Ports

ClearCube user ports connect to PC blades over a standard Ethernet network. User ports
deliver video and peripheral signals to a user (that is, to the monitor and other peripherals
connected to the user port) from a PC blade using Ethernet protocol, allowing them to work
over standard switched networks. A–Series blades support the following user ports:
• I/9440
• I/9420
• I/8330
• I/8x20
• C7420 Fiber C/Port and F6150 Media Converter
• Eon e100
• Capio One
• I8800
• I8010

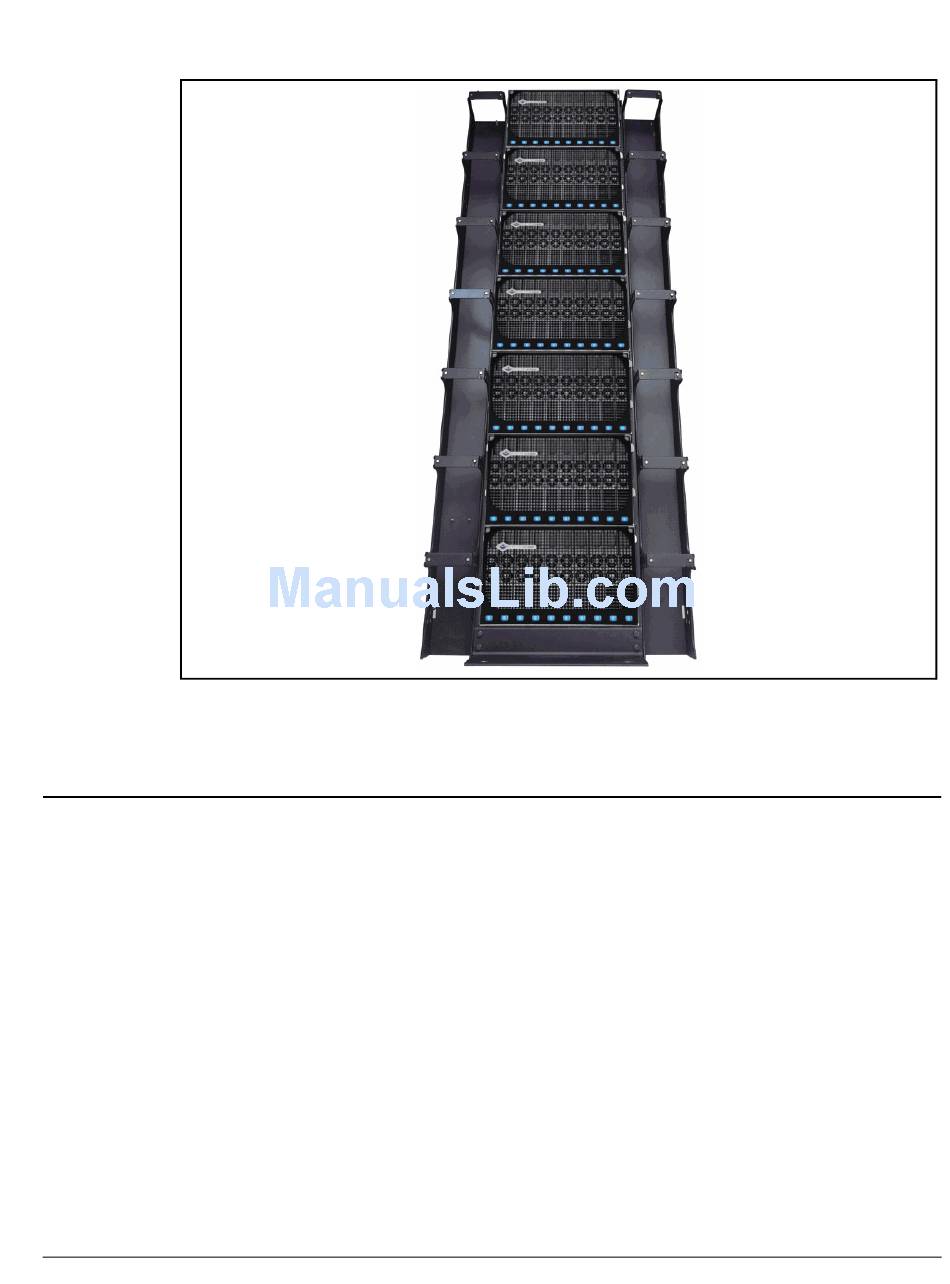

Figure 9. Fully-loaded rack with A3000 chassis and A1010 blades
User Ports • 9
