Connecting Cables
Follow the instructions provided below to connect the appropriate cables to the instrument.
Connecting the Power Cord
1. Insert the power cable into the connector on the lower rear panel of the analyzer.
2. Plug the other end of the power cord into an appropriate power source.
Connecting Networking Cables
Connecting One Analyzer
1. Plug the ethernet cable into the port labeled Ethernet on the side panel of the analyzer.
2. Plug the other end of the cable into the Ethernet port on the computer.
Feb 09
Part 1. Hardware Installation
Gemini VII 2390 Confirm Installation Instructions and Checklist

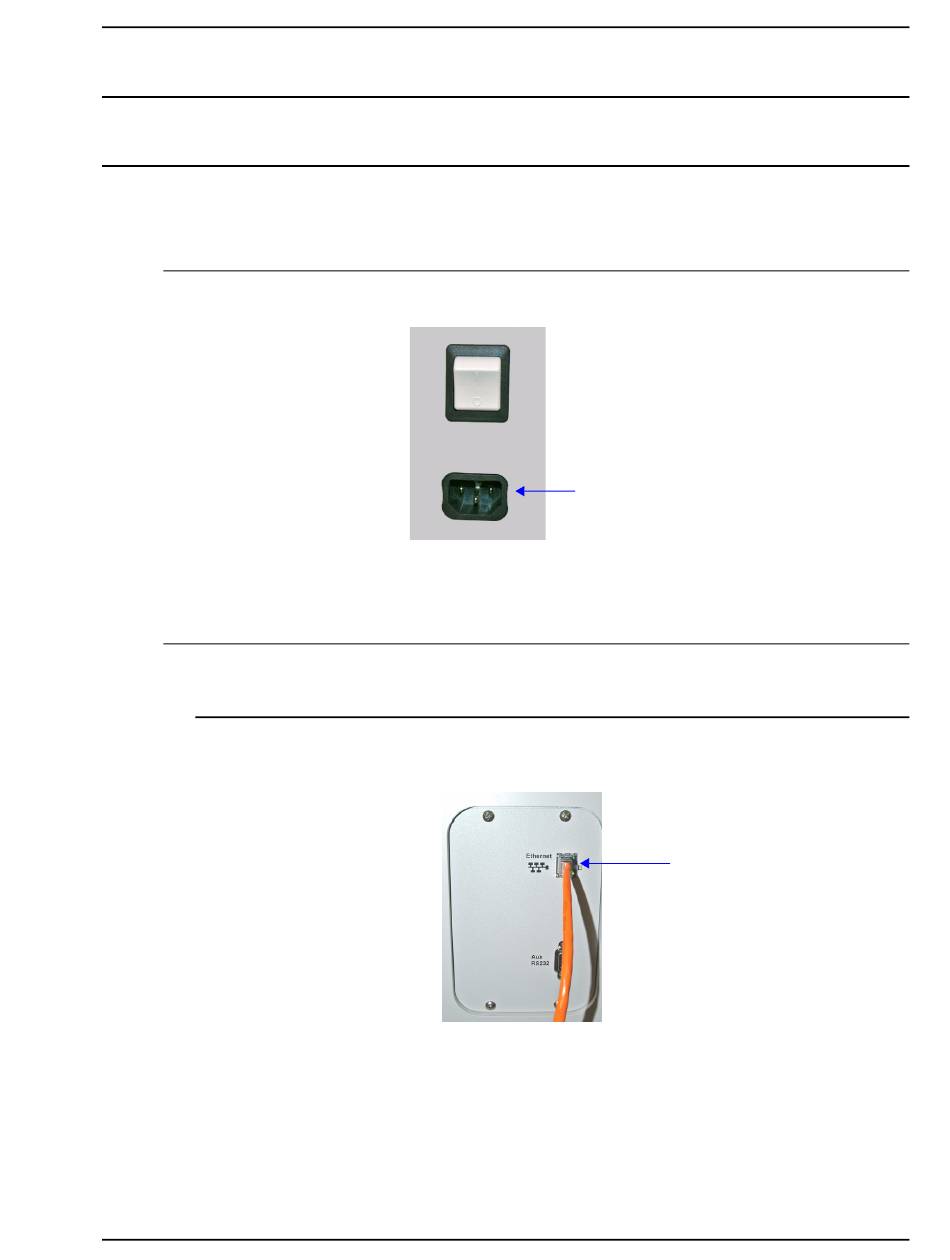

Power connector
Ethernet port
Connecting Cables
3
