Connecting Gases

Cleaning and Verifying the Gas Lines

You should always clean the gas line and verify there are no leaks at the connections after you
connect a gas bottle. This test examines the gas line from the instrument to the gas bottle, then
from the instrument to the regulator shut-off valve. A report is generated at the completion of
the test verifying that it has passed or failed. Causes and corrective action for a failure are
provided.

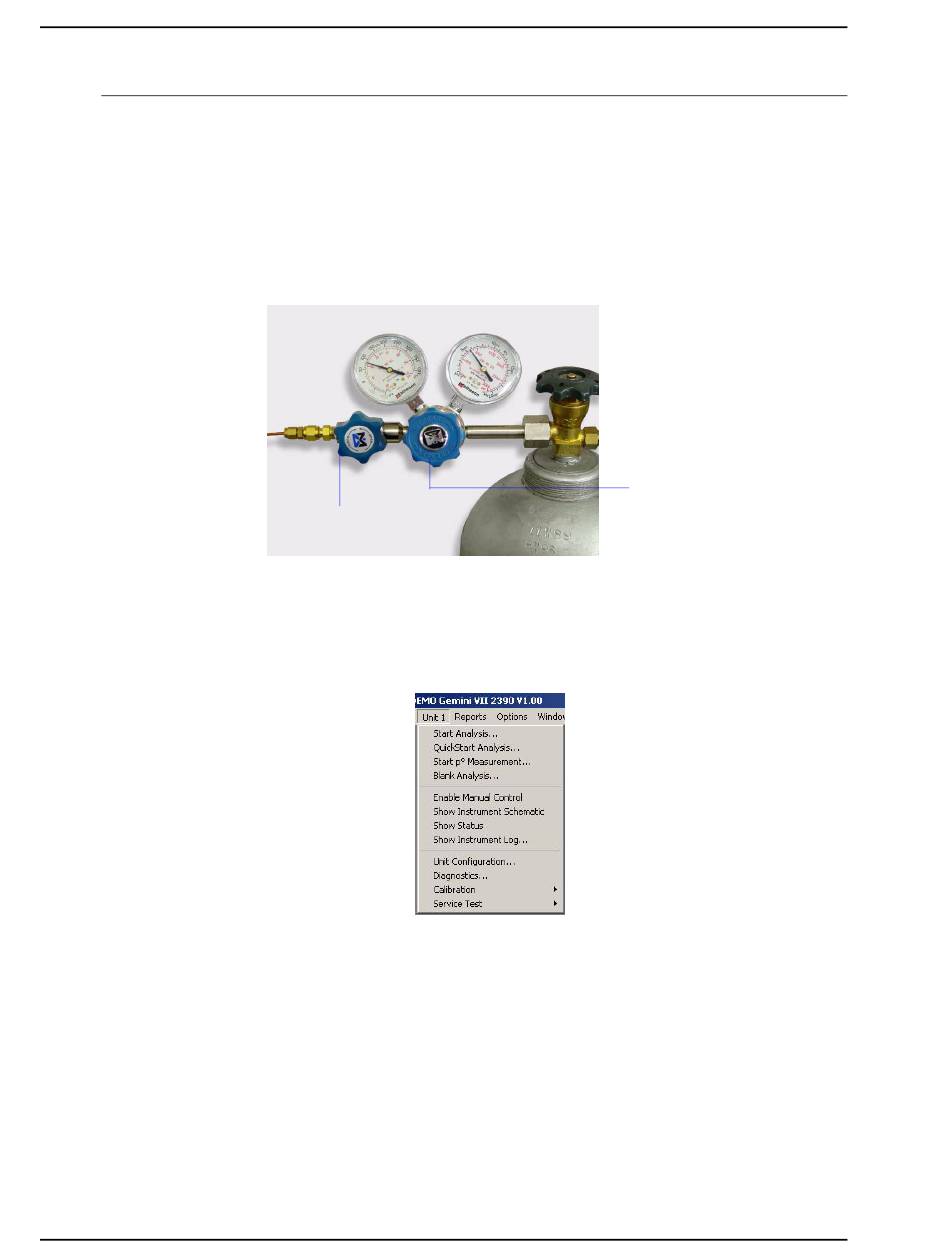

Before beginning, confirm that the state for valves and the low-pressure gauge are as follows:
Regulator Shut-Off valve
OPEN (CCW)
CW = Clockwise
CCW = Counterclockwise
1. Select Unit [n] and make sure that Manual Control is disabled (there is no check mark
next to Enable Manual Control).
2. Select Unit [n] > Diagnostics; the Service Test dialog is displayed.
3. Click the down arrow to the right of the Test field and select Clean and Verify Analysis
Gas Line Rev. [latest revision letter].
This procedure uses the analysis gas as an example. Select Clean and Verify Helium
Gas Line Rev. [latest revision letter] if the helium bottle is being verified.
44
Low-pressure gauge
14 - 15 psig
Gemini VII 2390 Confirm Installation Instructions and Checklist
Gemini VII 2390 Confirm
Gas Bottle Shut-Off valve
CLOSED (CW)
Make sure the Pressure
Control knob is open
OPEN (CW)
Feb 09
