Gemini VII 2390 Confirm
e. Set the servo target to increase to 780 mmHg and turn the servo on.
f. Turn the servo off when sample pressure stabilizes.
g. Select Unit [n] > Enable Manual Control to disable manual control (remove check
mark).
3. Install the vacuum gauge on the sample port.
4. Ensure that a blank tube or plug is installed in the balance port (refer to
Sample Tubes" on page
5. Zero the pressure transducers.

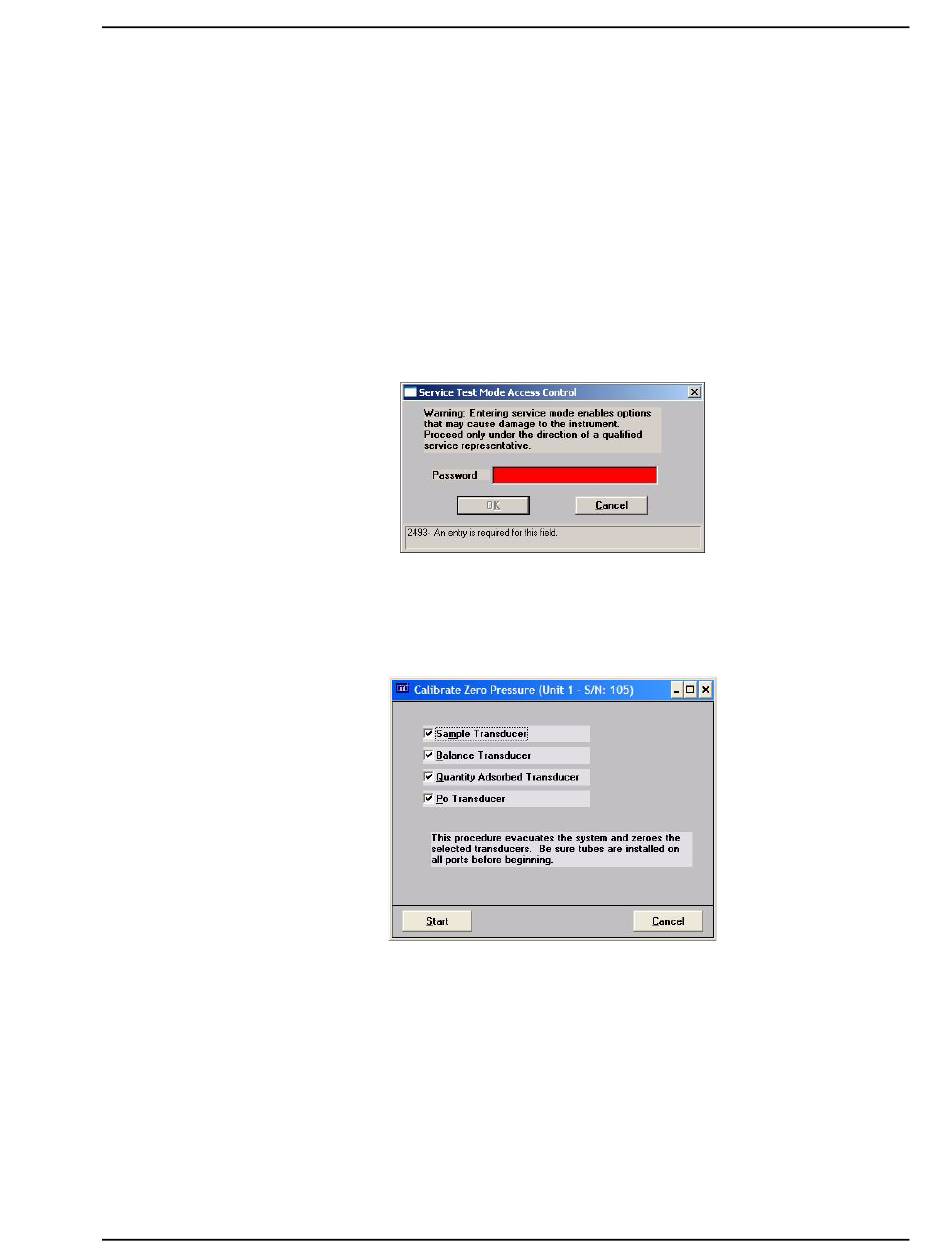

a. Select Options > Service Test Mode.
b. Enter the password, then click OK.
c. From the main menu, select Unit[n] > Calibration > Zero Pressure. The following
dialog is displayed.
d. Select all transducers.
Feb 09
57).
Gemini VII 2390 Confirm Installation Instructions and Checklist
Calibrating Transducers and Servo Valves
"Installing
49
