Gemini VII 2390 Confirm

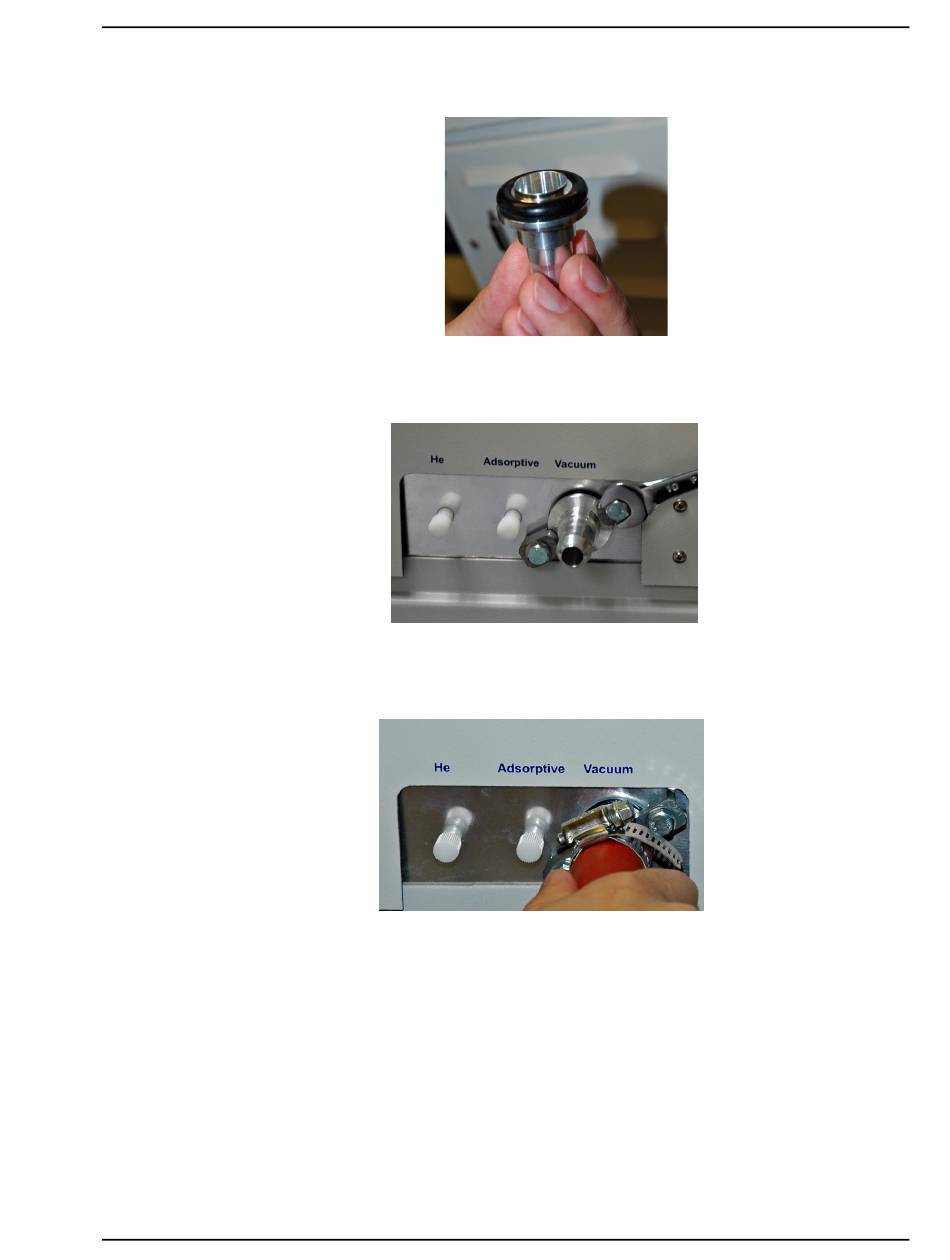

5. Place the centering ring you removed in Step 4 on the vacuum adapter.
6. Place the vacuum adapter in the Vacuum port, then tighten the two port screws by turning
them clockwise with a wrench.
7. Place the vacuum hose over the Vacuum adapter. Attach a clamp and tighten the retaining
nut with a flat-blade screwdriver.
8. Plug the vacuum pump power cord into an appropriate power source.
Feb 09
Gemini VII 2390 Confirm Installation Instructions and Checklist
Installing the Vacuum Pump
15
