Installing the Vacuum Pump

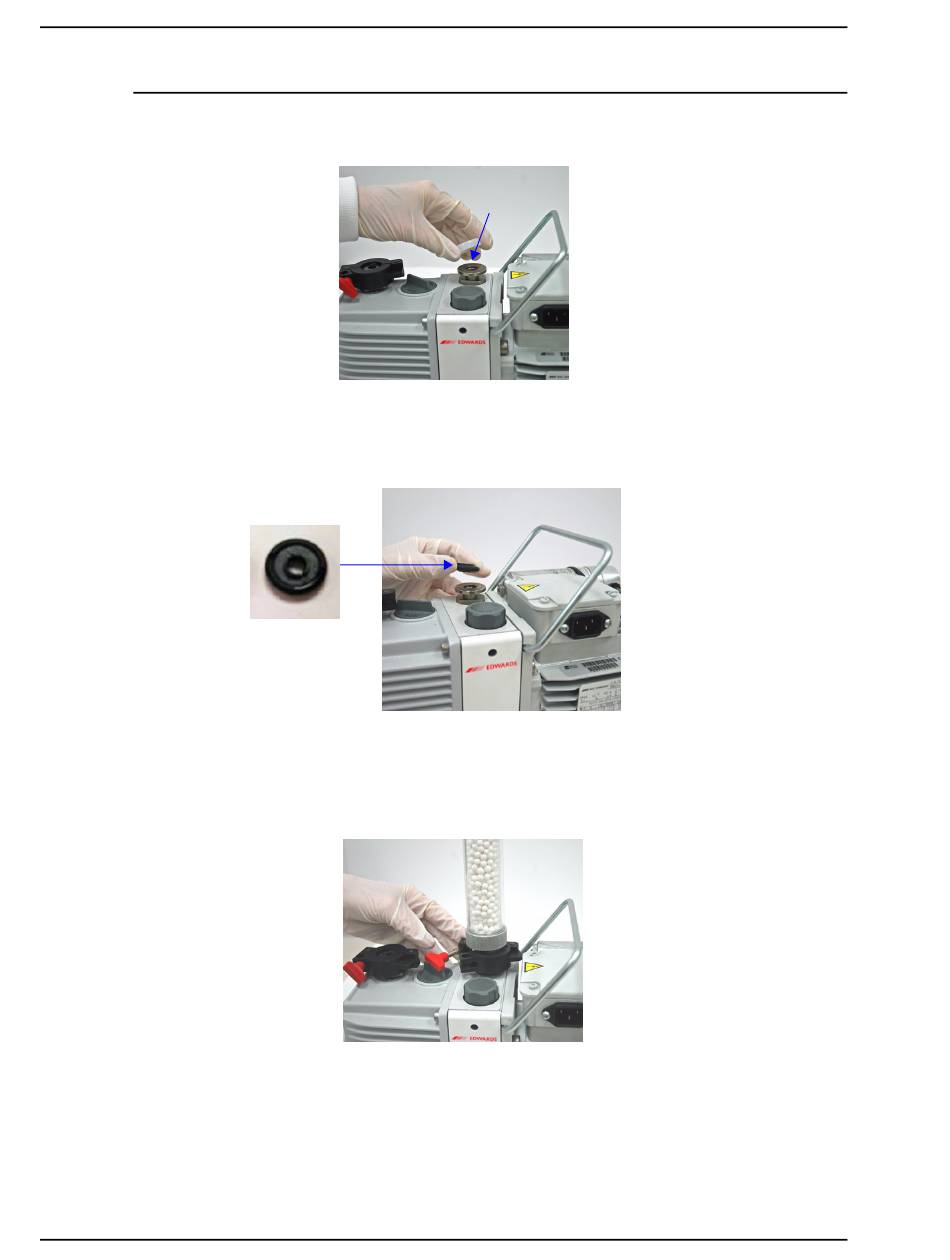

Installing the Alumina Trap

1. Lift up and remove the cap on the intake port.
2. Place a centering ring on the intake port. There are two types of centering rings; use the
one with the smaller opening.
3. Place the trap on the centering ring.
Place an opened clamp around the flange of the intake port and the flange of the trap.
Swing the clamp fastening screw toward the intake port until it fits into the slot in the
other half of the clamp. Tighten the wing nut securely by hand.
10
Centering Ring
Gemini VII 2390 Confirm Installation Instructions and Checklist
Intake port
