Pos: 59.190.10 /Überschriften/Überschriften 3/K-O/Luftfilter für Rohrleitungen @ 34\mod_1255595485391_78.docx @ 324472 @ 3 @ 1
13.20.2

Air filter for pipelines

Pos: 59.190.11 /BA/Wartung/Bremsanlage/Luftfilter/Luftfilter für Rohrleitung Bild CF/CV @ 76\mod_1310027669344_78.docx @ 666250 @ @ 1
7
8

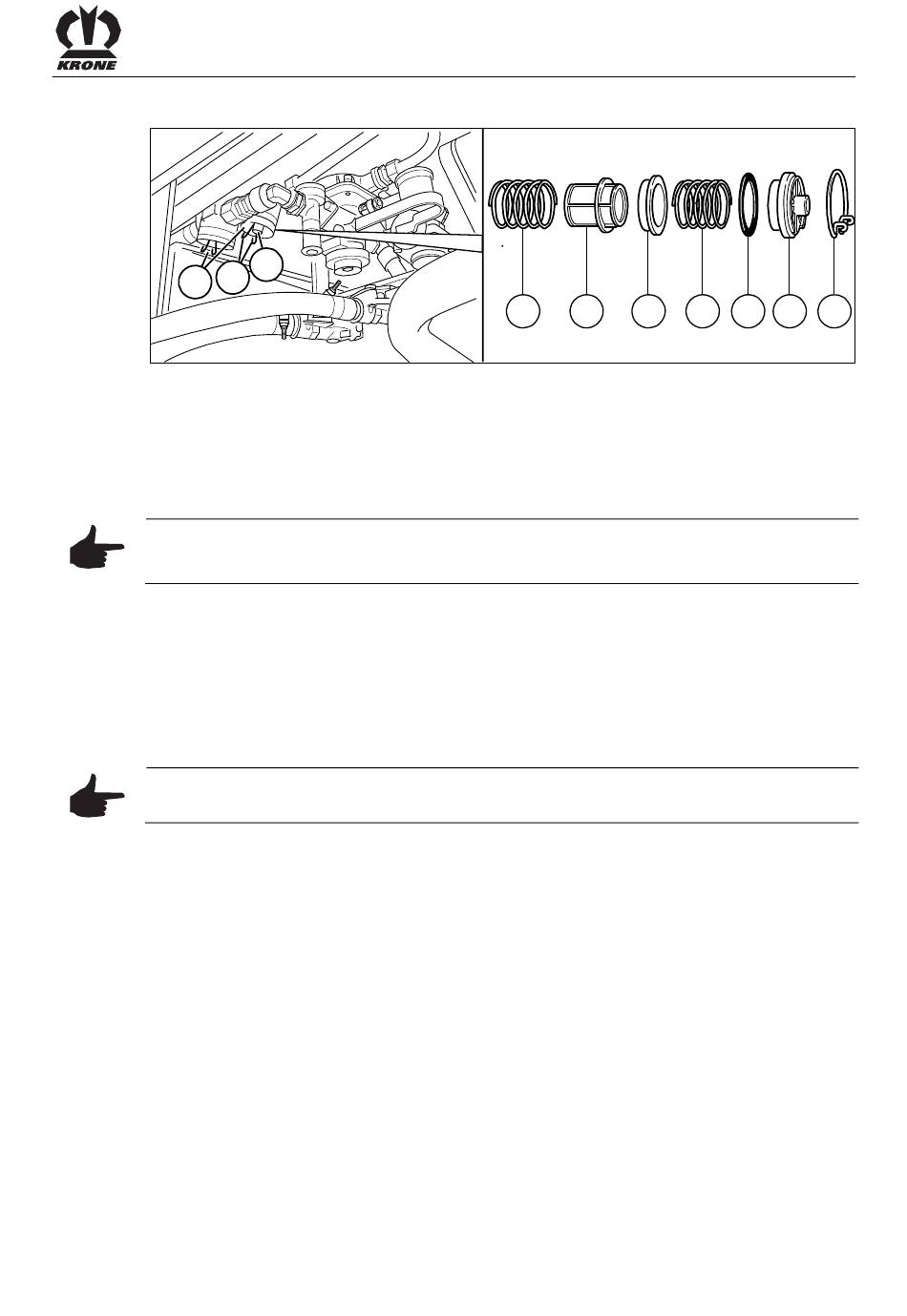

Fig. 258
Pos: 59.190.12 /BA/Wartung/Bremsanlage/Luftfilter/Luftfilter für Rohrleitung Aufzählung @ 6\mod_1214888028238_78.docx @ 96691 @ @ 1
(1) Spring
(2) Filter
(3) Spacer
Pos: 59.190.13 /BA/Wartung/Bremsanlage/Luftfilter/Funktion Luftfilter für Rohrleitung @ 76\mod_1310028483877_78.docx @ 666308 @ @ 1
The air filter (8) cleans the compressed air and protects the brake system from malfunctions.
Pos: 59.190.14 /BA/Wartung/Bremsanlage/Luftfilter/Hinweis verstopfter Filtereinsatz @ 76\mod_1310030486256_78.docx @ 666336 @ @ 1
Note
The brake system is ready for operation even when the filter insert is clogged in both directions
of flow.
Pos: 59.190.15 /BA/Wartung/Bremsanlage/Luftfilter/Ausbau Filtereinsatz (Prüfen bei anderen Maschinen) @ 76\mod_1310030560614_78.docx @ 666364 @ @ 1
Removing the Filter Insert
Press cover cap (6) and loosen the clasp locking ring (7)
Remove the filter insert
Maintenance of the Air Filter
Clean the filter insert before the beginning of the season.
Installation of the filter insert
Installation is in reverse order to removal.
Pos: 59.190.16 /BA/Wartung/Bremsanlage/Luftfilter/Hinweis Reihenfolge Filtereinsatz @ 76\mod_1310030667908_78.docx @ 666392 @ @ 1
Note
Observe the correct sequence when assembling the filter insert.
Pos: 59.190.17 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
6
(4) Spring
(5) Sealing ring
(6) Cover cap
1
2
3
(7) Clasp locking ring
Maintenance
4
5
6
7
CP102200
327
