Maintenance
Pos: 59.155 /BA/Wartung/Rundballenpresse/Allgemeines Eigenhydraulik CF/CV @ 76\mod_1309950686055_78.docx @ 665511 @ @ 1
The on-board hydraulic pump is driven via a gear directly by the PTO shaft. The hydraulic tank
is located on the left rear machine side. The hydraulic filter of the on-board hydraulic system is
located at the front left on the machine. The control valves are located at the sheet
compartment on the left side of the machine.
Pos: 59.156 /BA/Wartung/Rundballenpresse/Bild Bauteile Eigenhydraulik CF/CV @ 76\mod_1309949643837_78.docx @ 665453 @ @ 1
CPN00020_2

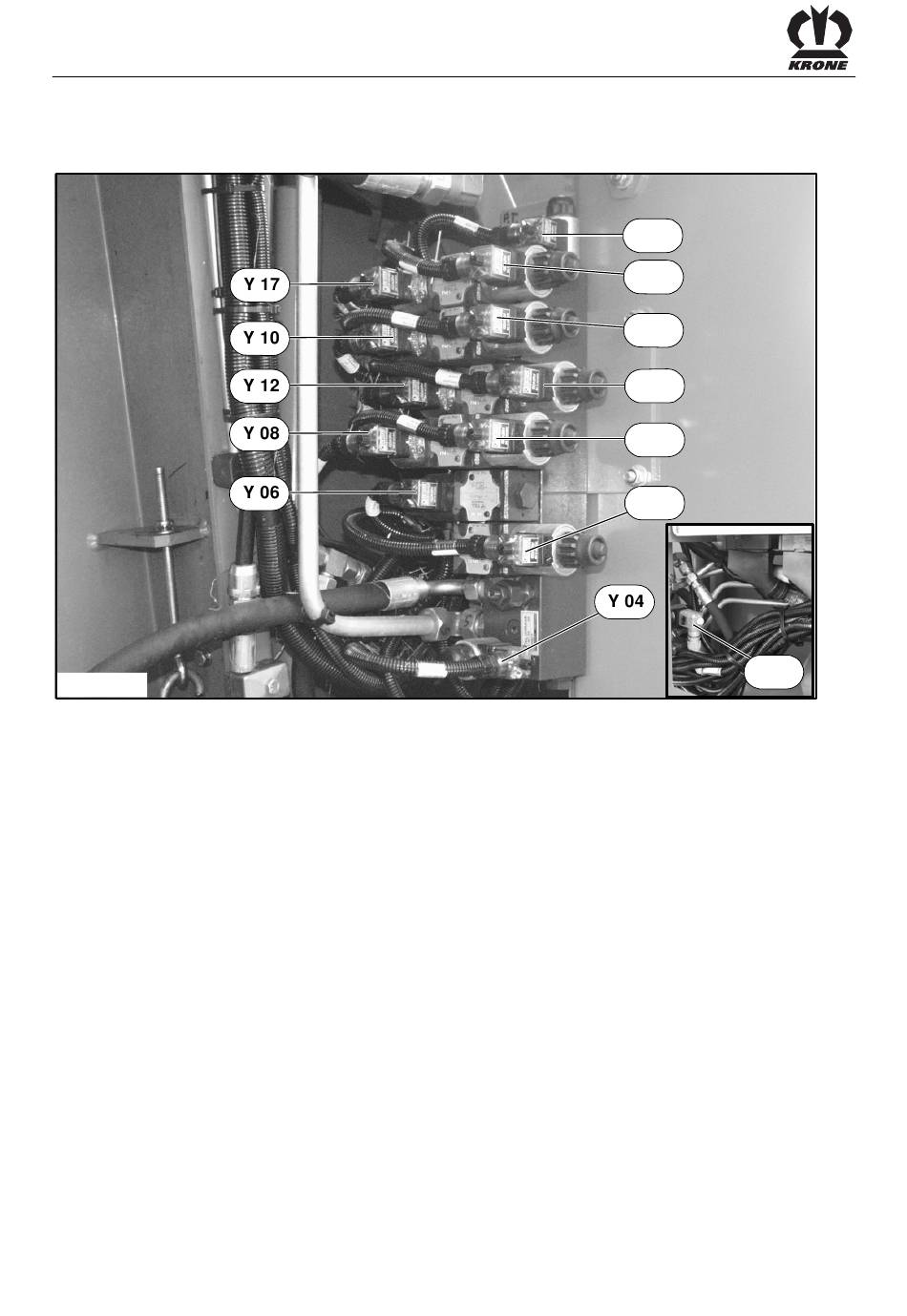

Fig. 248
Y04 Function I (S10)
Y05 Valve block
Y06 Control valve wrapping arm (S1)
Y07 Close bale chamber (S2)
Y08 Open bale chamber (S3)
Y10 Swivel table forward (S7)
Y011 Swivel table back (S6)
Pos: 59.157 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
314
Y012 Transfer forward (S5)
Y013 Transfer back (S4)
Y014 Sheet tear (S12)
Y015 Release holding arms (S13)
Y016 Open holding arms (S8)
Y017 Close holding arms (S9)
Y 15
Y 16
Y 11
Y 13
Y 07
Y 05
Y 14
