Mounting onto the Tractor

Pos: 44.6 /BA/Sicherheit/6. Überarbeitete Warnhinweise/An-/ Abbau/Warnung - An-/ Abbau der Maschine Rundballenpressen @ 295\mod_1412155785169_78.docx @ 2319995 @ @ 1
Warning!
There is a risk of injury when you hitch the machine to the tractor.
When you hitch the machine to the tractor, there is an increased risk of injury. For this reason,
the following points must be observed. The failure to observe these instructions may result in
persons being seriously injured or killed.
• Apply the parking brake on the machine.
• Secure the machine with wheel chocks to prevent it from rolling away.
• During the hitching procedure, never stand between the tractor and the machine.
• Switch off the tractor hydraulic and pneumatic system.
• Switch off all electronic systems.
• Turn off the diesel engine, remove the ignition key and take it with you.
Pos: 44.7 /BA/Inbetriebnahme/Rundballenpresse/Anhängen an den Traktor Rundballenpresse @ 32\mod_1253539550486_78.docx @ 314709 @ @ 1
The machine comes standard equipped with a hitch of Ø 40 mm (DIN 11 026). Depending on
the specific requirement, the following hitches are also available:
• Ball-head hitch (K 80),
• Rotating hitch (export only),
• Hitch connection (export only).
Hitch and secure the machine according to regulations on the hitch of the tractor.
Pos: 44.8 /BA/Inbetriebnahme/Rundballenpresse/Bild Abstellstütze hoch CF_CV @ 66\mod_1302161598229_78.docx @ 614370 @ @ 1
1
2
3

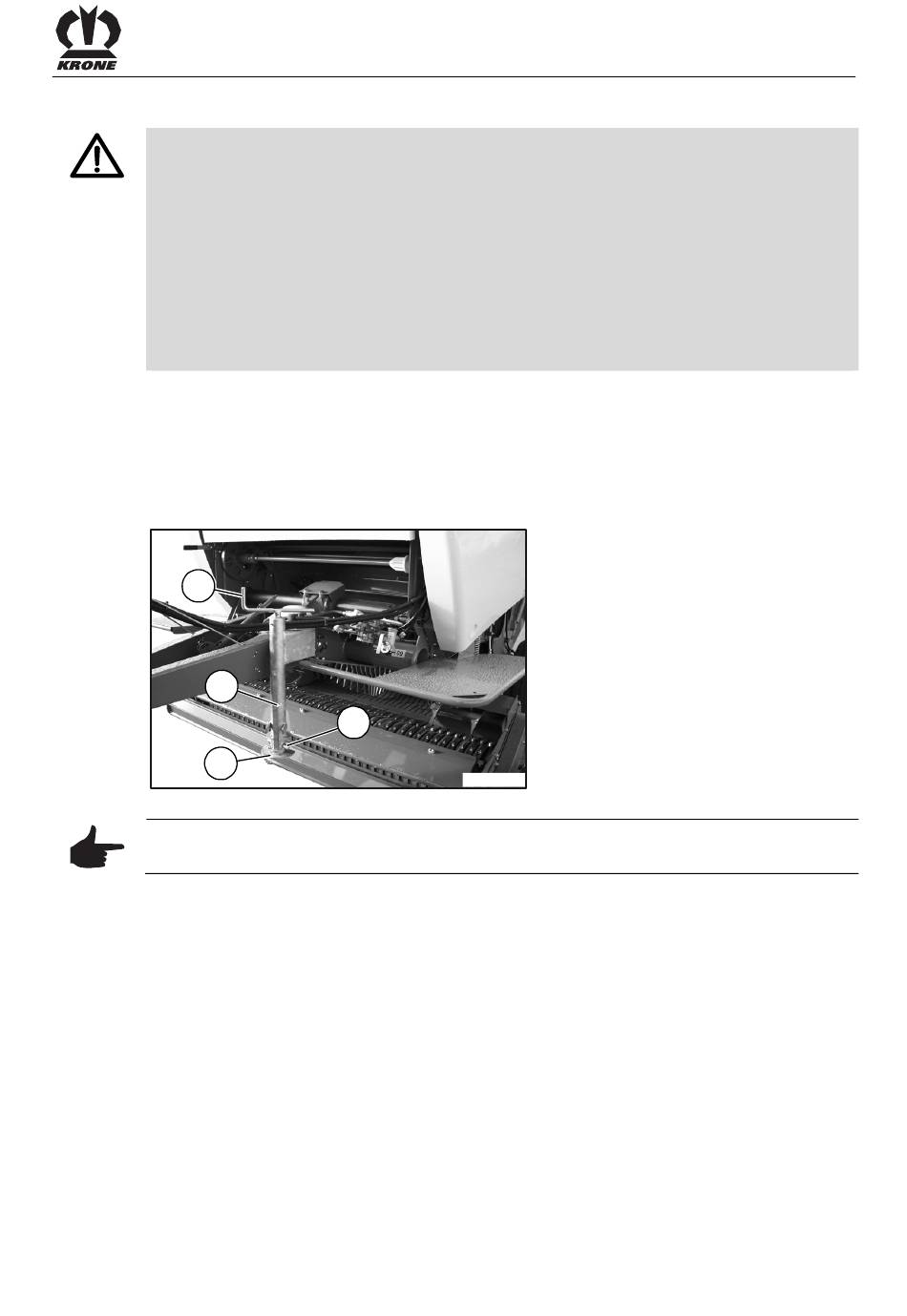

Fig. 41
Pos: 44.9 /BA/Inbetriebnahme/Rundballenpresse/Hinweis Abstellstütze bewegen @ 32\mod_1253539702220_78.docx @ 314734 @ @ 1
Note
Risk of hands and feet when the parking support is actuated!
Pos: 44.10 /BA/Inbetriebnahme/Rundballenpresse/Abstellstütze hochdrehen Fortima V 1500 MC @ 32\mod_1253540733033_78.docx @ 314784 @ @ 1
To raise the parking support:
• As soon as the machine is connected to the tractor, turn the crank (1) several revolutions
clockwise until there is no more weight on the parking jack (3).
• Withdraw the locking bolt (5) on the lower part of the parking support (2), push in the
parking support (2) and secure it in position with the locking bolt (5).
• Then crank the parking support (2) up all the way.
• Turn the parking jack (3) so that the flat side is facing the pick-up.
