Inserting Net Roll

Pos: 55.120 /BA/Sicherheit/7. Gefahrenhinweise alt/Rundballenpresse/Gefahr Öl auf Bindegarn @ 37\mod_1264496122520_78.docx @ 341340 @ @ 1
CAUTION! – Contamination of the twine and tying mechanism by oil and grease
Effect: Machine damage and problems when unrolling twine
• The twine, twine tensioner and eyes must not be contaminated by oil or grease.
• The parts of the tying unit through which twine or net run must not be contaminated by oil or
grease.
Pos: 55.121 /BA/Sicherheit/7. Gefahrenhinweise alt/Rundballenpresse/Gefahr Bindung eine Person @ 298\mod_1412762562814_78.docx @ 2334813 @ @ 1
WARNING!
Risk of injury due to unexpected movement of a machine component.
• The net may only be inserted by one person.
• Make sure that there is no other person in the range of movement of the machine.
Pos: 55.122 /BA/Bedienung /Rundballenpresse/Netz-Garnbindung/Netzrolle einlegen CF/CV @ 74\mod_1308749918367_78.docx @ 657820 @ @ 1
Note
The starting end of the net roll must point towards the machine and be pulled out from the top.

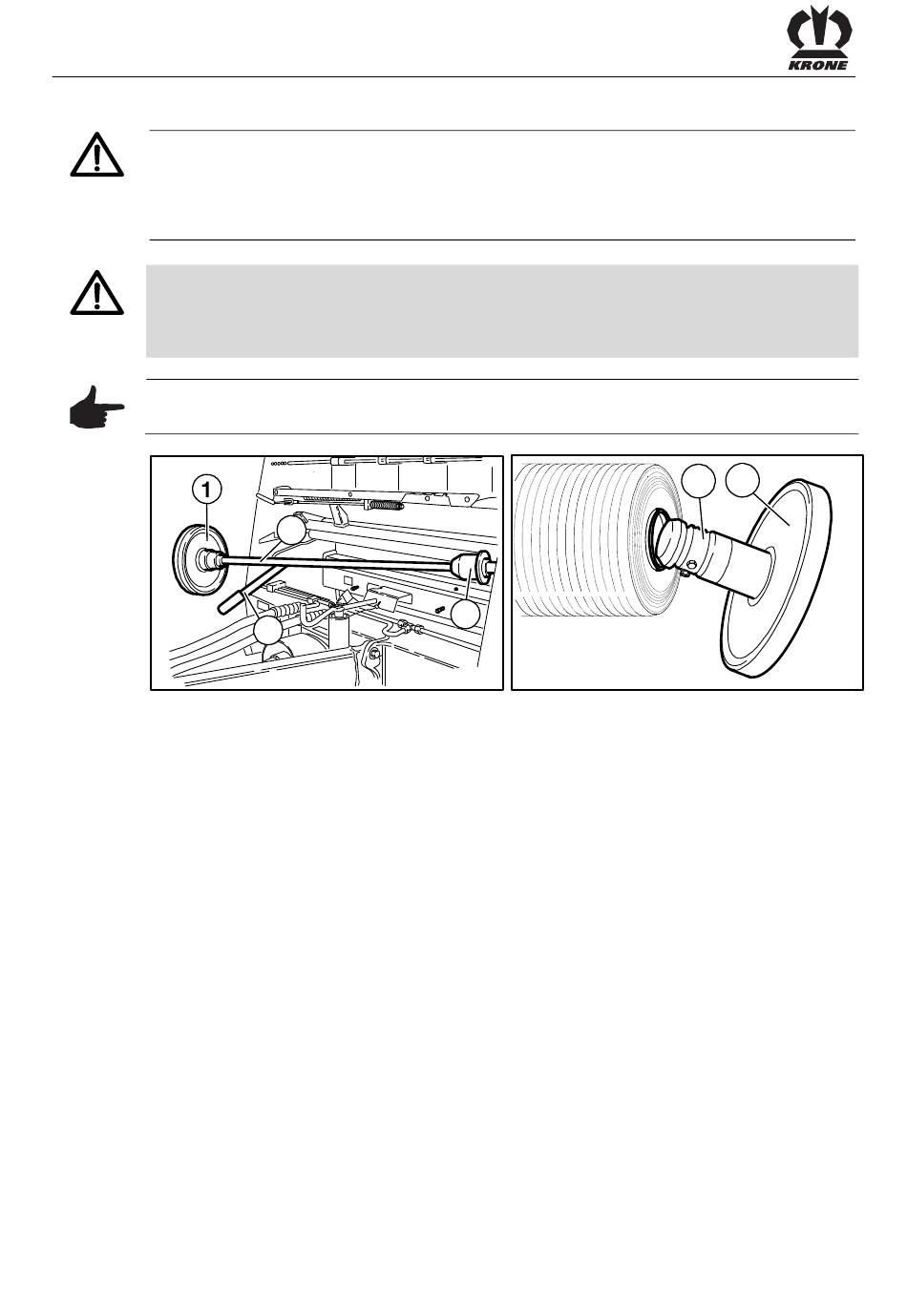

Fig. 181
The preparations and insertion of the twine roll must be accomplished with machine at standstill:
• Switch off tractor P.T.O. shaft
• Switch off tractor engine
• Raise the lever (2)
• Swing the brake disc (1) with the net roll mounting shaft (3) forwards
• Detach the brake disc (1)
• Slide the net roll onto the net roll mounting shaft (3) and the support (4)
• Slide the brake disc (1) and cardboard tube clamp (5) counterclockwise into the cardboard
tube and then onto the net roll mounting shaft as far as possible
