8.3.2

Adjustment of target bale diameter (display for Comprima CV150XC)

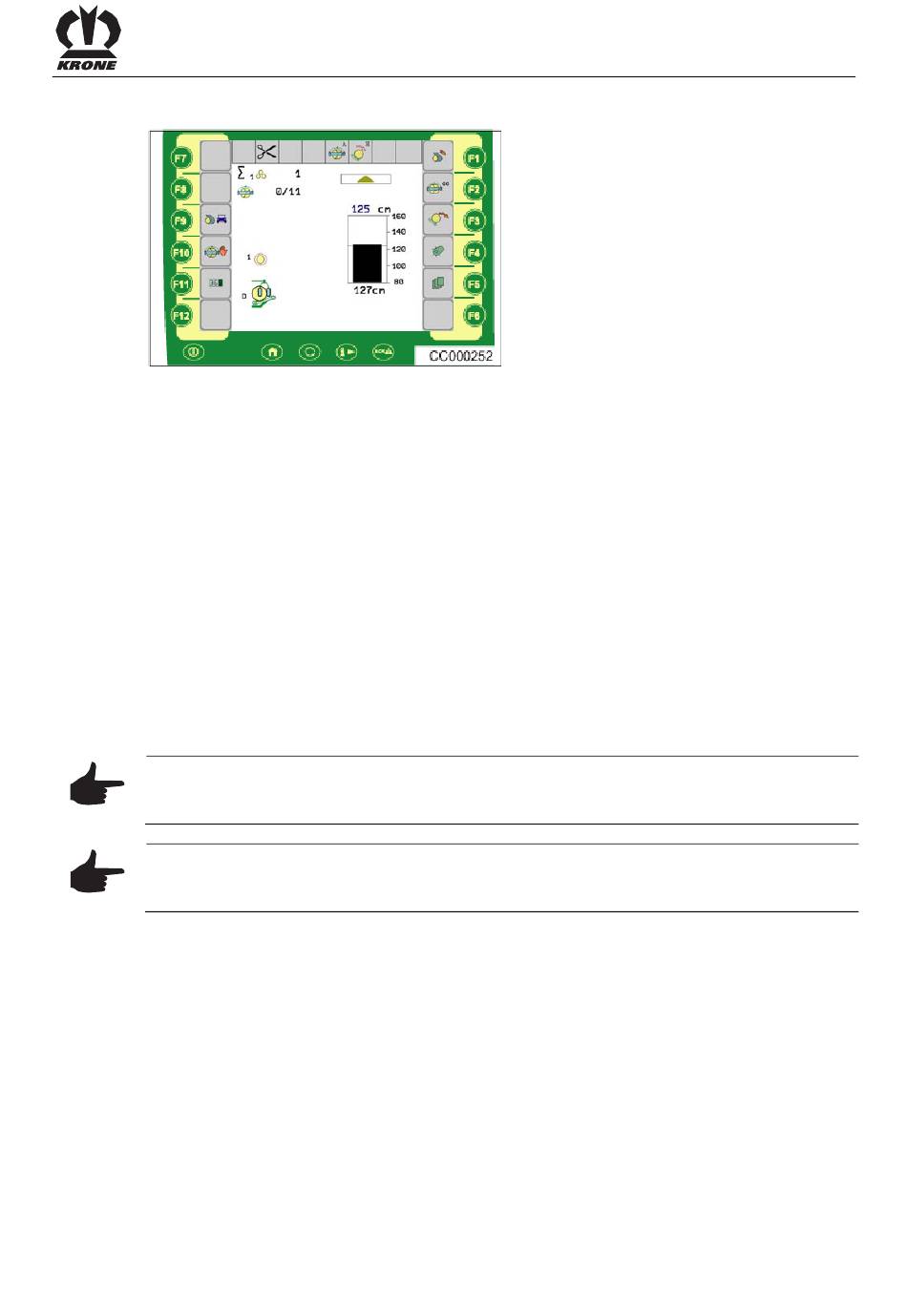

Fig. 85
Display bale diameter
The value under the bar display and the height of the bar show the current actual bale diameter
in cm.
The value above the bar display shows the adjusted target bale diameter in cm.
The bale diameter is given by the user in basic screen.
• You can use the scroll wheel to select the desired value (the selection box is highlighted in
colour)
• Pressing the scroll wheel allows you to jump to the selection box (the selection box is
highlighted in colour)
• Turning the scroll wheel increases or reduces the value
• Pressing the scroll wheel causes the setting to be applied and returns you from the
selection box
Pos: 48.52 /BA/Info-Center/CCI-ISOBUS-Terminal/CCI-Press-Wickelvorrichtung/Grundbild/Einstellen des Soll-Ballendurchmessers CV 210 XC @ 62\mod_1299505085336_78.docx @ 572647 @ 33 @ 1
8.3.3

Adjusting the Target Bale Diameter (Display for Comprima CV 210 XC)

Note
If the wrapper is deactivated, the bale size is shown in an area of 90 cm to 205 cm. It can be
set in this area.
Note
If the wrapper is activated, the bale size is displayed in an area of 90 cm to 175 cm. It can be
set in this area.
Pos: 48.53 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
CC000252
KRONE ISOBUS Terminal
119
