Positioning The Bale Turner - Krone Comprima CF 155 XC Original Operating Instructions

Start-up
Pos: 44.64 /BA/Erstinbetriebnahme/Rundballenpresse/Ballenwender/Ballenwender positionieren @ 45\mod_1277276394031_78.docx @ 413658 @ 22 @ 1
6.14

Positioning the Bale Turner

13
1

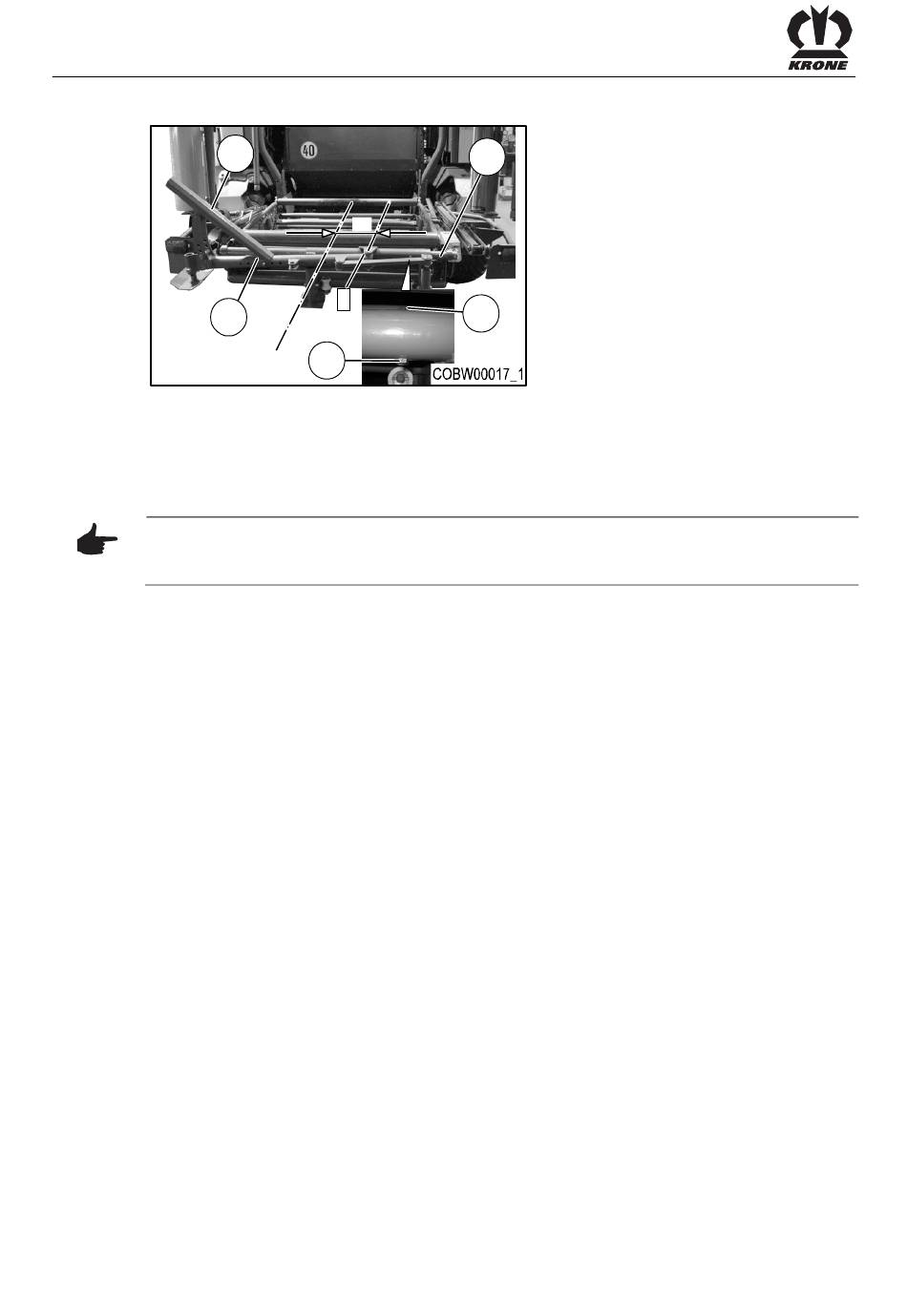

Fig. 56
• Push the bale turner (1) on the holding tube (3) to the right until the pivot point (I) of the bale
turner is about a = 200 mm to the right outside of machine centre (centre borehole on the
holding tube (3)).
• Fasten the bale turner (1) in this position with a screw (8) and nut (9).
Pos: 44.65 /BA/Erstinbetriebnahme/Rundballenpresse/Ballenwender/Hinweis Straßenfahrt Ballenwender @ 45\mod_1277278163234_78.docx @ 413683 @ @ 1
Note
During road travel the baffle plate (13) must always be folded out, otherwise the left rear light
would be covered.
