Shut-Off Valve For Tailgate - Krone Comprima CF 155 XC Original Operating Instructions

Safety
Pos: 38.39 /Überschriften/Überschriften 3/A-E/A/Absperrhahn Heckklappe @ 34\mod_1255589255891_78.docx @ 324197 @ 33 @ 1
4.7.10

Shut-off valve for tailgate

Pos: 38.40 /BA/Sicherheit/7. Gefahrenhinweise alt/Rundballenpresse/WARNUNG Absperrhahn Hydraulikzyl geschlossen @ 308\mod_1416995034289_78.docx @ 2391935 @ @ 1
WARNING! – Settings on the machine!
Danger to life or serious injuries.
• The shut-off valve on the left hydraulic cylinder must be closed.
Pos: 38.41 /BA/Wartung/Rundballenpresse/Bild Heckklappe sperren F/V @ 84\mod_1318947447181_78.docx @ 736249 @ @ 1
1

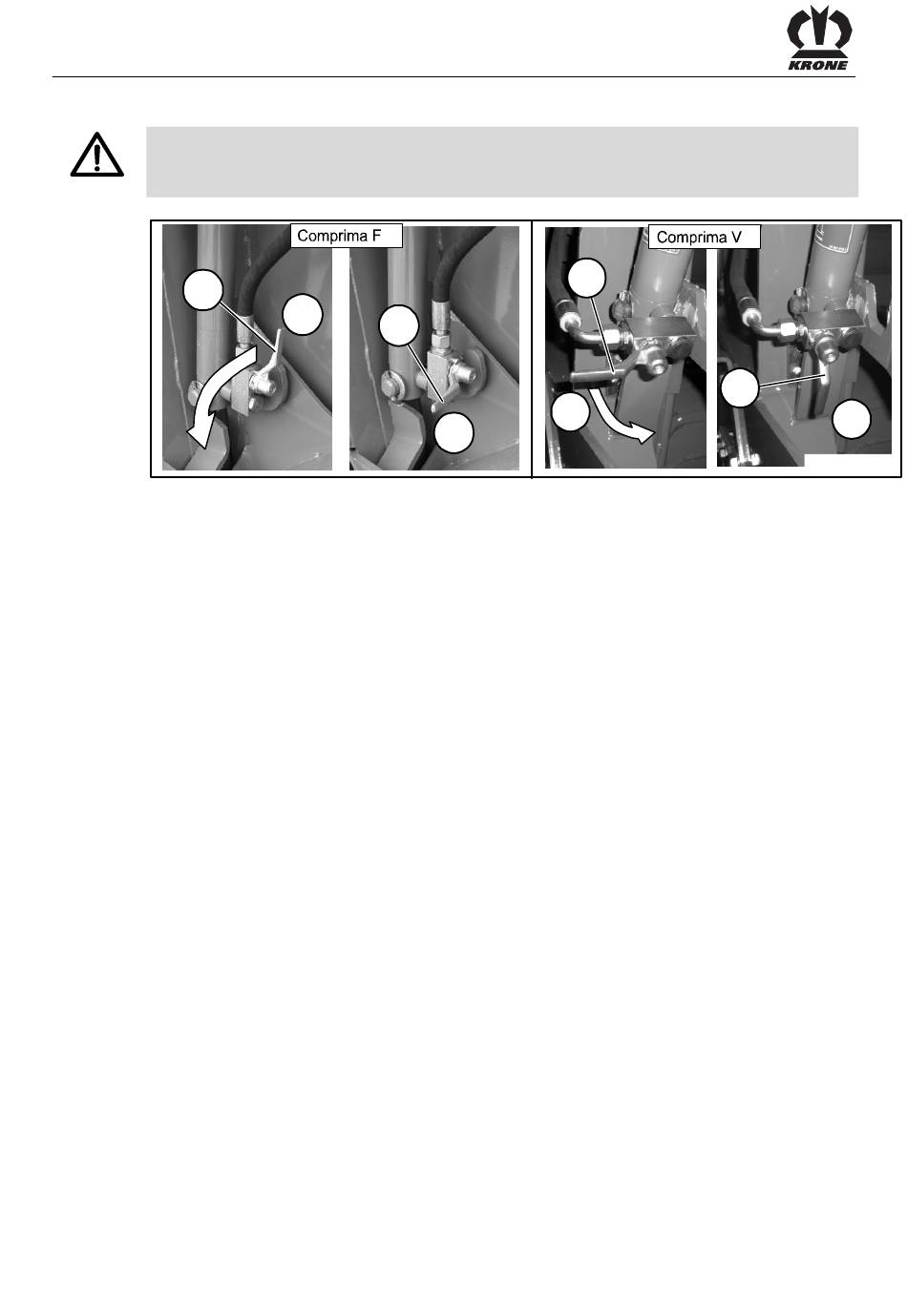

Fig. 17
Pos: 38.42 /BA/Wartung/Rundballenpresse/Funktion Absperrhahn F/V @ 103\mod_1331720817238_78.docx @ 937260 @ @ 1
The tractor supplies pressure to the machine hydraulics via hoses. In addition to different parts,
the shut-off valve (1) on the left hydraulic cylinder should particularly be mentioned.
It is presented as a safety part which prevents unintended closing of the tailgate.
Position "a"
Hydraulic cylinder return is opened. The tailgate can be closed.
Always reset the shut-off valve after working in the bale chamber or on the tailgate to position
"a" to be able to close the tailgate.
Position "b"
The hydraulic cylinder return is locked. The tailgate cannot be closed.
Move the shut-off valve always to position "b" when working in the bale chamber or on the
open tailgate.
Pos: 38.43 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
48
a
1
b
1
1
a
b
CPK00230_3
