Maintenance
17.20.2

Air filter for pipelines

7
8

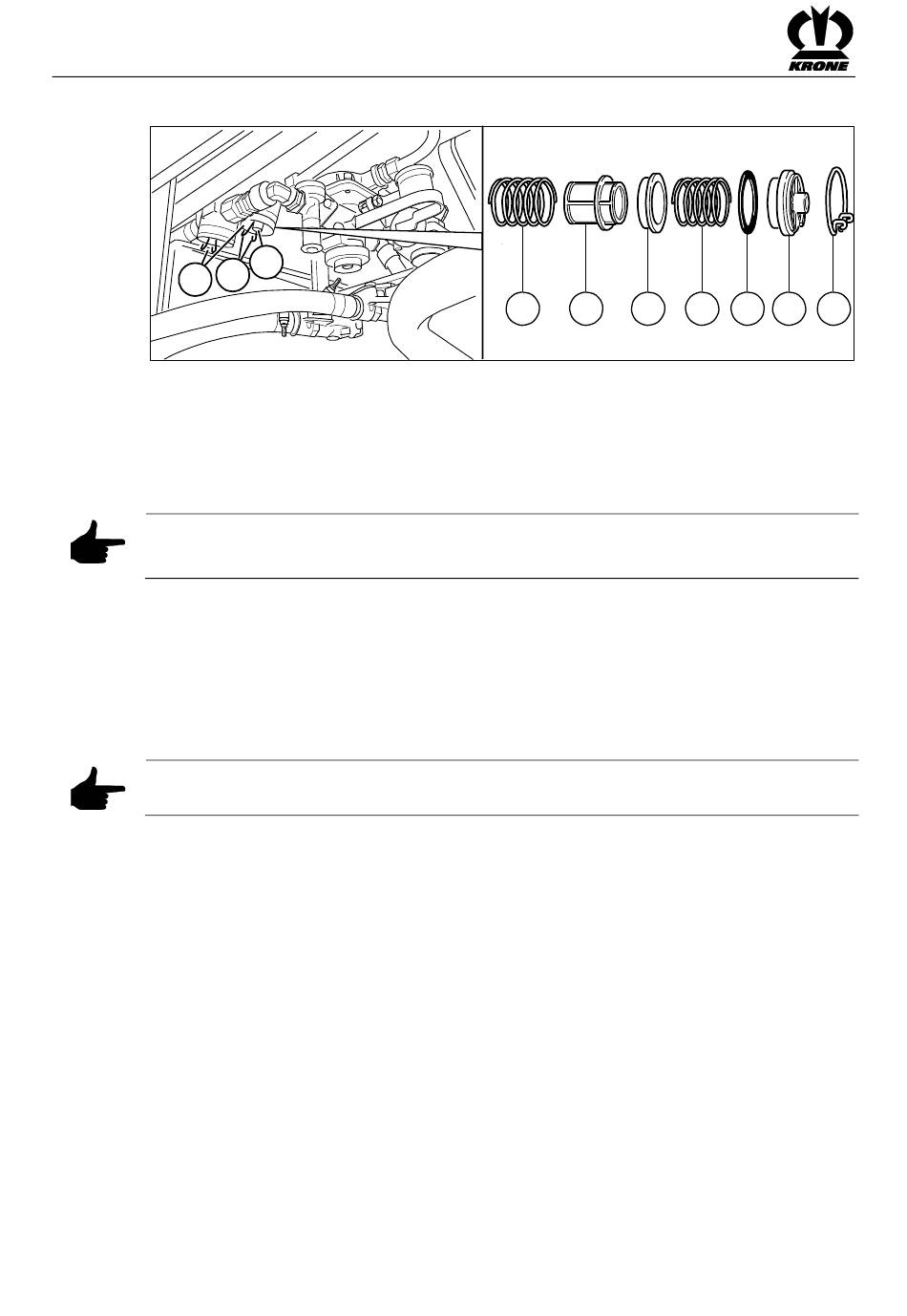

Fig. 250
(1) Spring
(2) Filter
(3) Spacer
The air filter (8) cleans the compressed air and protects the brake system from malfunctions.
Note
The brake system is ready for operation even when the filter insert is clogged in both directions
of flow.
Removing the Filter Insert
• Press cover cap (6) and loosen the clasp locking ring (7)
• Remove the filter insert
Maintenance of the Air Filter
Clean the filter insert before the beginning of the season.
Installation of the filter insert
Installation is in reverse order to removal.
Note
Observe the correct sequence when assembling the filter insert.
310
6
(4) Spring
(5) Sealing ring
(6) Cover cap
1 2 3
(7) Clasp locking ring
4 5 6 7
