Drive chains

Pos: 59.109 /BA/Sicherheit/7. Gefahrenhinweise alt/Warnung - Einzugsgefahr der Antriebsketten @ 34\mod_1256045314627_78.docx @ 325616 @ @ 1
WARNING! – Danger of entanglement in the drive chains!
Effect: Risk of injury caused by entanglement of loose long hair or loose clothing.
• After working on the chains, always reassemble or close the safety devices.
Pos: 59.110 /BA/Wartung/Rundballenpresse/Prüfen der Antriebsketten CF/CV @ 75\mod_1309434821071_78.docx @ 663400 @ @ 1
All drive chains are supplied with oil by a central chain lubrication system.
As the lubricating oil lines are not highly pressurised, it may occur that they jam. For this reason
the lubricating oil lines must be checked for proper functionality daily before using.
The mode of operation of the central chain lubrication system is explained in the Chapter
entitled "Settings".
Pos: 59.111 /BA/Sicherheit/8. Voraussetzungen/Handlungsanweisung für alle Maschinen/Handlungsanweisung: Maschine stillsetzen und sichern @ 274\mod_1404365253849_78.docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.112 /Überschriften/Überschriften 3/P-T/Spannen der Antriebsketten @ 127\mod_1346223615094_78.docx @ 1148300 @ 33 @ 1
13.16.1

Tensioning the Drive Chains

Pos: 59.113 /Überschriften/Überschriften 4/P-T/Vorderer Rollbodenantrieb @ 75\mod_1309437387643_78.docx @ 663460 @ 44 @ 1
13.16.1.1

Front Floor Conveyor Drive

Pos: 59.114 /BA/Wartung/Rundballenpresse/Spannen Ketten vorderer Rollbodenantrieb CF/CV @ 75\mod_1309435729509_78.docx @ 663428 @ @ 1
4
2

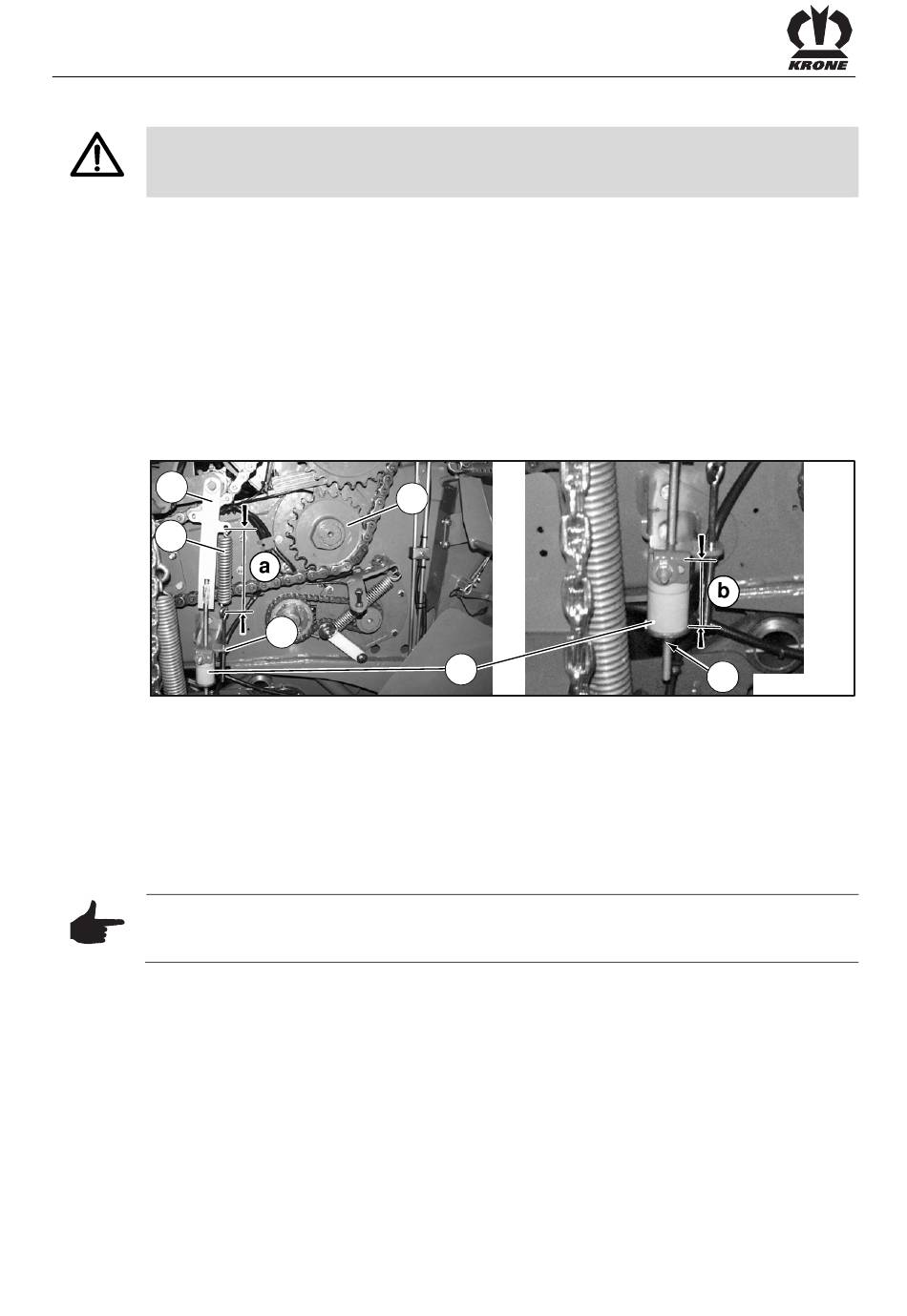

Fig. 238
The front floor conveyor drive (1) is located on the left side of the machine.
Check the Chain Tension:
• The chain is tightened by the tension spring (2). The length of the spring when tightened
must be a = 220 mm.
Correct the Chain Tension:
• Turn the nut (4) on the threaded rod to adjust the stop pad (3) (used only as a stop) to a
dimension b between 105 - 110 mm. Select dimension B in that way that a play between
support (5) and stop pad (3) is available.
Pos: 59.115 /BA/Wartung/Rundballenpresse/Hinweis Federspannung korrigieren CF/CV @ 75\mod_1309437703236_78.docx @ 663484 @ @ 1
Note
In case the spring tension is insufficient, the flat bar (6) can be turned and the other eye can be
used.
