6.15

Moving the Bale Turner into Working Position

II

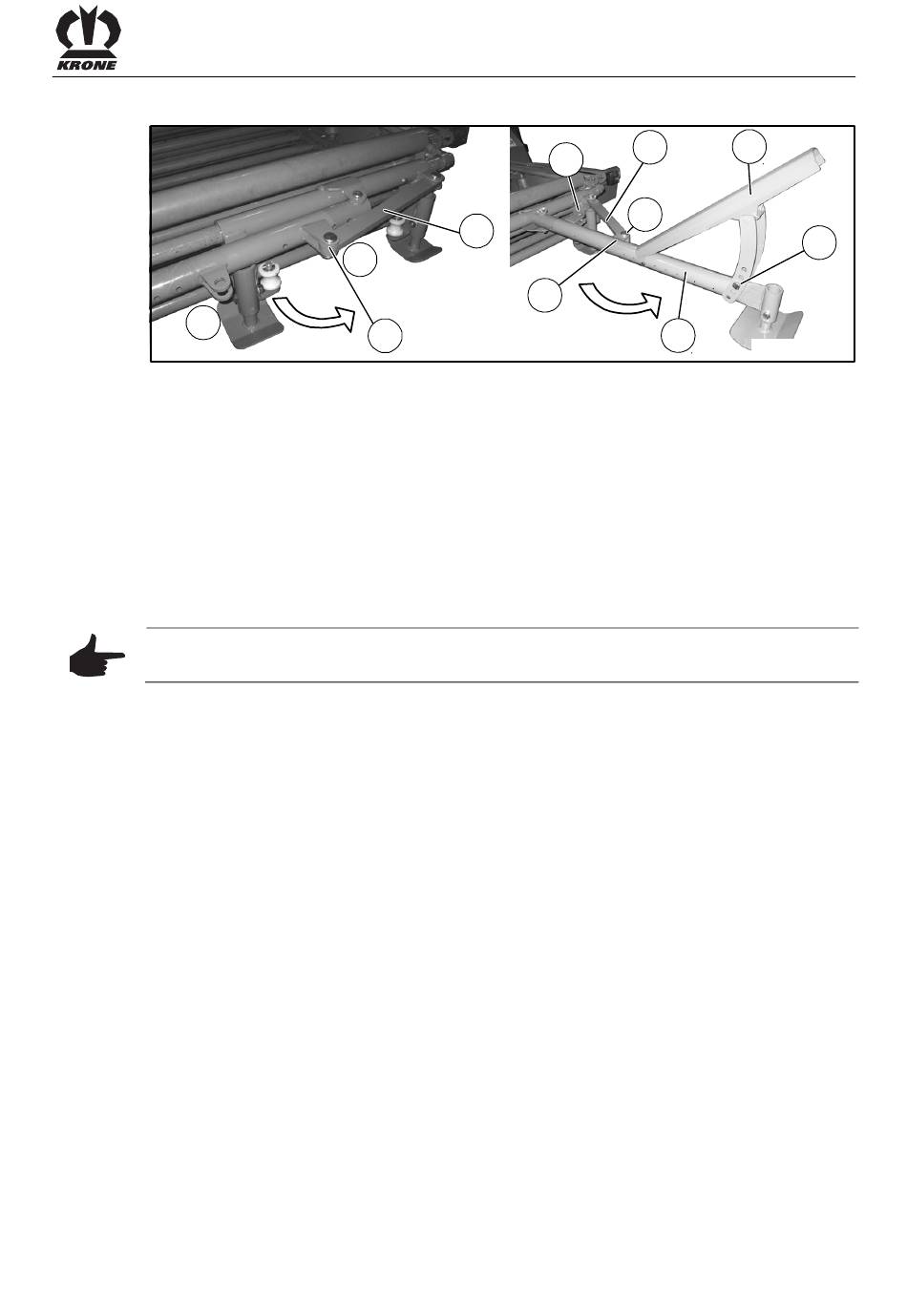

Fig. 57:
• Swivel the locking bar (12) out of position (I) by removing the bolt (11).
• Fold out the bale turner (1).
• Swing locking bar (12) into position (II) and secure with bolt, washer and cotter pin (11).
Pos: 44.68 /BA/Inbetriebnahme/Rundballenpresse/Ballenwender/Prallblech einstellen @ 14\mod_1228145386009_78.docx @ 170518 @ 33 @ 1
6.15.1

Adjusting the Baffle Plate

The height of the baffle plate (13) is adjustable.
Making the adjustment:
• Loosen screw connections on the baffle plate (13).
• Move baffle plate (13) to the required position and secure with bolts, washers and nuts.
Note
We recommend using the centre borehole (a) for the baffle plate setting.
Pos: 44.69 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
12
I
11
12
I
II
11
1
Start-up
13
a
COBW0008_1
91
