M01 Net setting motor

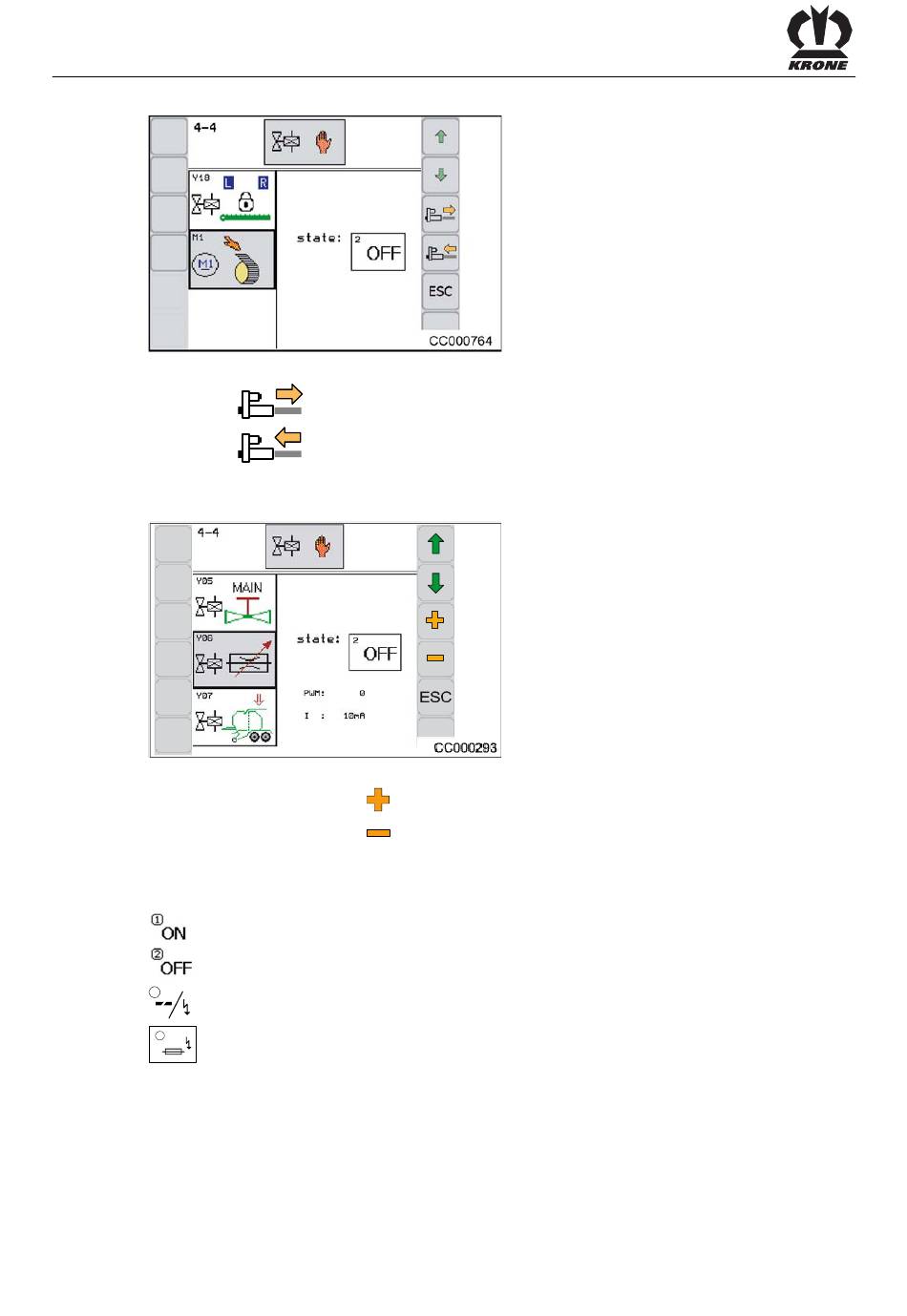

Fig. 129
• Softkey
• Softkey
Pos: 48.172 /BA/Info-Center/CCI-ISOBUS-Terminal/CCI-Press-Wickelvorrichtung/Hauptmenüs/Hauptmenü 4 Service/Regelventil Wickelarm @ 166\mod_1367245893328_78.docx @ 1443166 @ @ 1
Y06 Wrapping arm control valve
Fig. 130
• Press the function button
• Press the function button
The current electrical current is shown under the status display (if measured).
Pos: 48.173 /BA/Info-Center/Sensoren/Statusanzeigen/Statusanzeigen digitale Aktoren Version (1,2,3,4) @ 53\mod_1289987761437_78.docx @ 507785 @ @ 1
State:
Actuator on
Actuator off
3
General actuator error
4
FUSE
No power supply; fuse is probably defective
Pos: 48.174 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
172
moves the engine out. The function is contact only.
moves the engine in. The function is contact only.
to activate the control valve so that the flow rate increases.
to activate the control valve so that the flow rate reduces.
