Maintenance
Pos: 59.129 /Überschriften/Überschriften 4/F-J/Förderschneckenantrieb @ 75\mod_1309442602928_78.docx @ 663600 @ 44 @ 1
13.16.1.4

Conveyor Auger Drive

Pos: 59.130 /BA/Sicherheit/8. Voraussetzungen/Handlungsanweisung für alle Maschinen/Handlungsanweisung: Maschine stillsetzen und sichern @ 274\mod_1404365253849_78.docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.131 /BA/Wartung/Rundballenpresse/Spannen Ketten Förderschnecke CF/CV @ 75\mod_1309442690939_78.docx @ 663624 @ @ 1
1

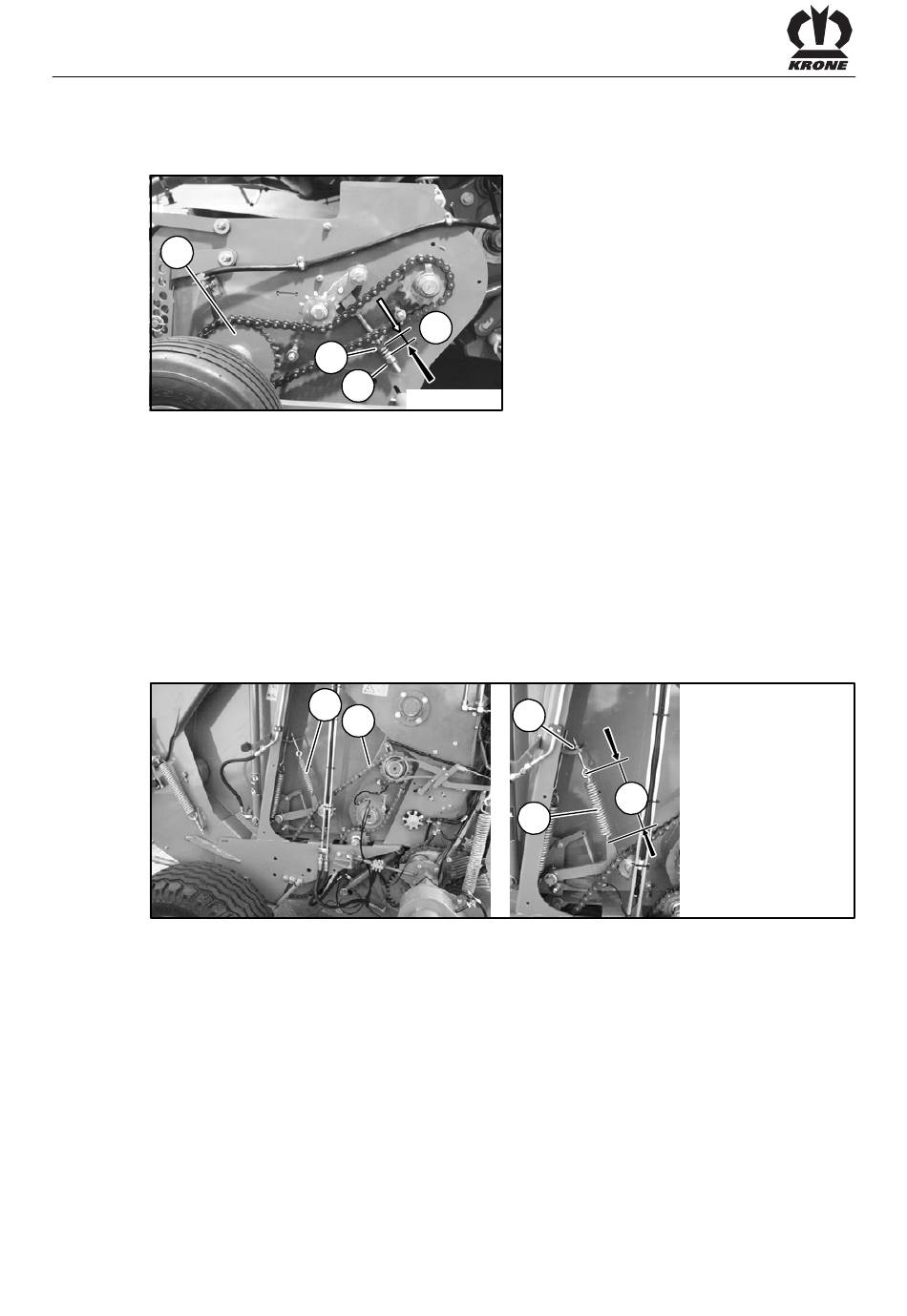

Fig. 243
The auger conveyor drive (1) is located on the pick-up on the left-hand side of the machine.
The drive chain is tensioned by the clamping element (2).
Check the Chain Tension:
The length of the spring when tightened must be a = 30 mm.
Correct the Chain Tension:
• Turn the nut (3) to increase or reduce the spring tension of the compression spring (2) until
distance a= approx. 30 mm is set
Pos: 59.132 /Überschriften/Überschriften 4/U-Z/Walzenantrieb @ 75\mod_1309443286065_78.docx @ 663656 @ 44 @ 1
13.16.1.5

Roller Drive

Pos: 59.133 /BA/Sicherheit/8. Voraussetzungen/Handlungsanweisung für alle Maschinen/Handlungsanweisung: Maschine stillsetzen und sichern @ 274\mod_1404365253849_78.docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.134 /BA/Wartung/Rundballenpresse/Spannen Ketten Walzenantrieb CF/CV @ 75\mod_1309443380216_78.docx @ 663680 @ @ 1
Fig. 244
The roller drive (1) is located on the right side of the machine.
Check the Chain Tension:
The length of the spring when tightened must be a = 220 mm.
Correct the Chain Tension:
• Turn the nut (3) to increase or reduce the spring tension of the compression spring (2) until
distance a= approx. 90 mm is set
Pos: 59.135 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
308
a
2
3
RPN00057_1
2
1
3
a
2
RPN00055
