Assembly of Additional Ejector Plates in the Tailgate

Pos: 55.34 /Abkürzungen /Abkürzungen sprachneutral/Rundballenpressen/Comprima CF 155 XC_fett @ 66\mod_1302006789716_78.docx @ 593531 @ @ 1
Comprima CF 155 XC
Pos: 55.35 /BA/Bedienung /Rundballenpresse/Bild Anlagebleche montieren Comprima F125/155 @ 137\mod_1353912745760_78.docx @ 1222811 @ @ 1

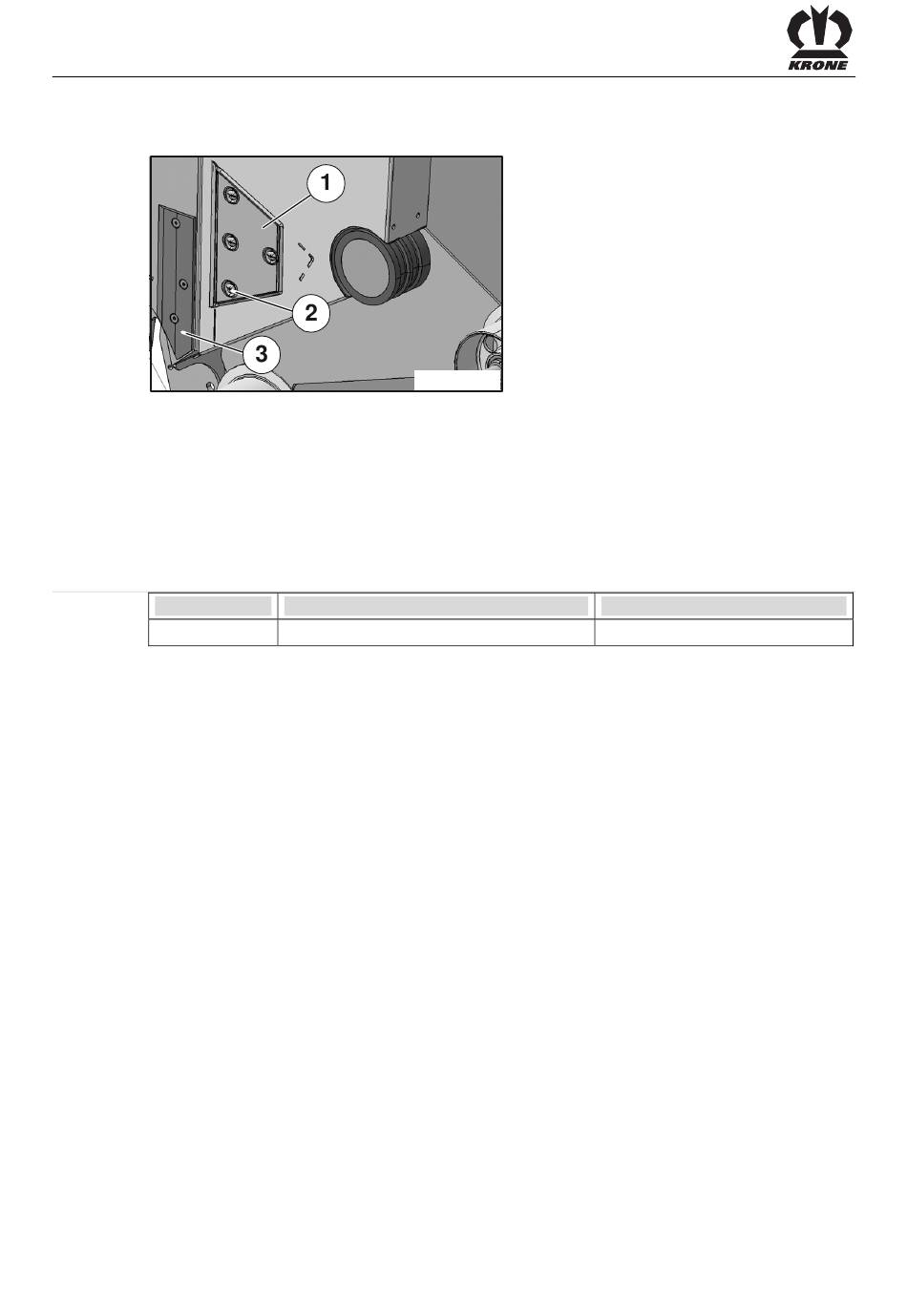

Fig. 155
Pos: 55.36 /BA/Bedienung /Rundballenpresse/Text Anlagebleche montieren alle Maschinen @ 137\mod_1353912825978_78.docx @ 1222840 @ @ 1
If the completed bales do not fall out of the front bale chamber, two ejector plates (1) can be
assembled right and left in the tailgate of the machine.
• Install the ejector plates (1) with the screws (2) on the insides of the bale chamber into the
existing bore holes.
• If the completed bales do even not fall out of the front bale chamber after having installed
the ejector plates (1), remove the sliding plates (3) from the machine housing right and left.
The ejector plates (1) can be ordered with suitable screws from KRONE spare part storage by
stating the following spare parts no.:
Pos: 55.37 /BA/Bedienung /Rundballenpresse/Tabelle Ersatzteile Anlagebleche F125/155 @ 137\mod_1353593714768_78.docx @ 1221214 @ @ 1
Units
2
Pos: 55.38 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
216
View (closed bale chamber)
Spare part
Ejector plate
RPN00107_1
Spare parts no.
2754790
