Adjusting the deflection roller

Pos: 59.102.9 /BA/Wartung/Rundballenpresse/Umlenkrolle versetzen/Umlenkrolle versetzen_Voraussetzungen @ 215\mod_1390811158175_78.docx @ 1760609 @ @ 1
Prerequisites
– The left side protector is raised.
– The left plastic protector is detached.
Pos: 59.102.10 /BA/Wartung/Rundballenpresse/Umlenkrolle versetzen/Umlenkrolle versetzen_Bild @ 215\mod_1390813804816_78.docx @ 1761351 @ @ 1
Fig. 236
Pos: 59.102.11 /BA/Wartung/Rundballenpresse/Umlenkrolle versetzen/Umlenkrolle versetzen_Text @ 237\mod_1394637069965_78.docx @ 1879416 @ @ 1

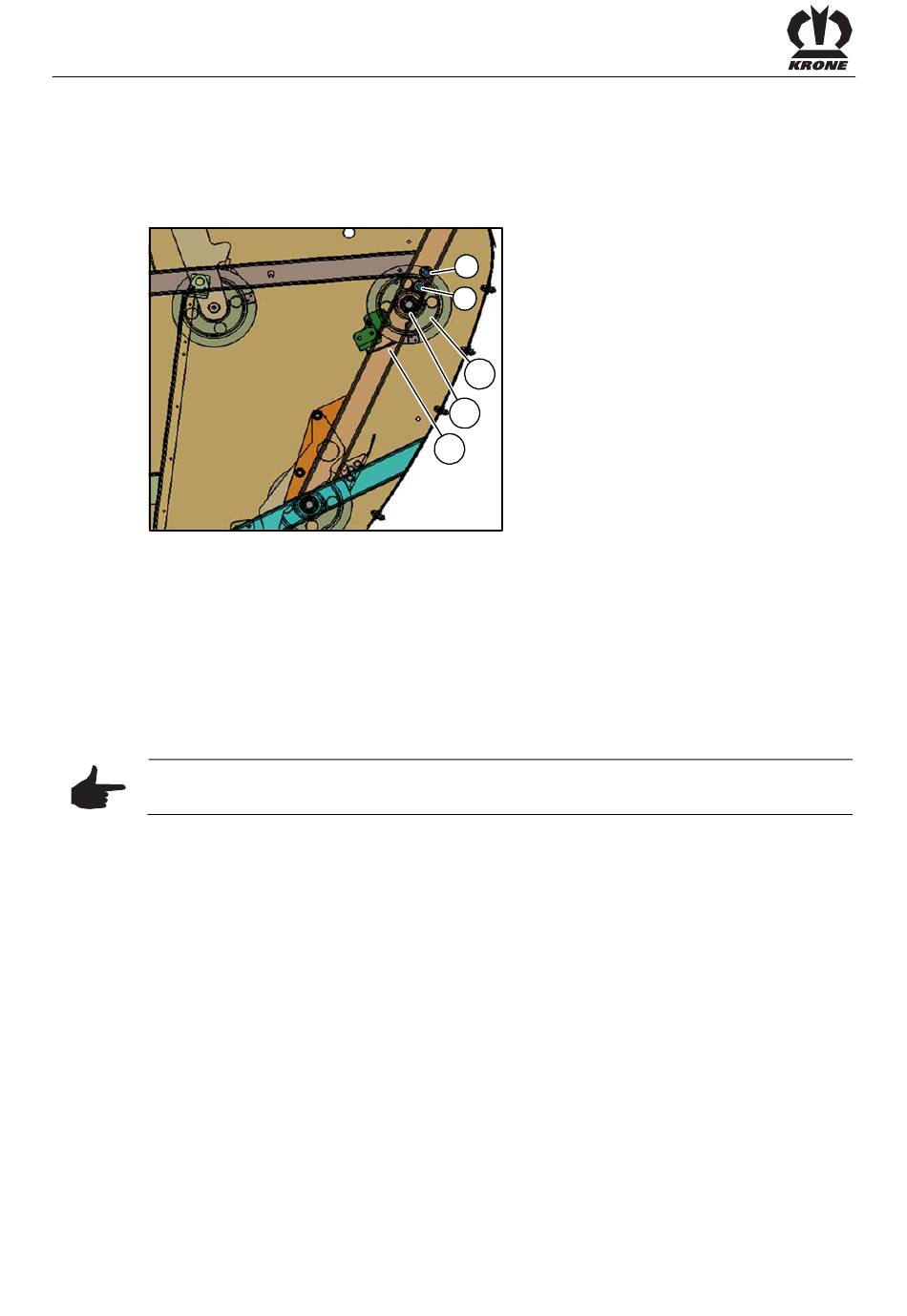

• Dismount scraper (1).
• Remove the threaded pin from the adjusting ring on the deflection pulley (2) and remove the
adjusting ring.
• Dismount deflection shaft (2) and mount with deflection shaft (3) in position (a).
• Push the adjusting ring onto the deflection shaft (2) and secure with threaded pin.
• Mount scraper (1) at a higher position.
• Check whether the tensioning rocker still touches the belt (brush marks). Move scraper and
deflection pulley up into hole (b), if necessary.
Pos: 59.102.12 /BA/Wartung/Rundballenpresse/Umlenkrolle versetzen/Hinweis: Umlenkrolle nur 1 Loch höher montieren @ 215\mod_1390814073967_78.docx @ 1761437 @ @ 1
Note
Only mount the deflection roller (3) 1 hole higher as otherwise the belt is unnecessary loaded.
