Rear Floor Conveyor Drive - Krone Comprima CF 155 XC Original Operating Instructions

Pos: 59.117 /Überschriften/Überschriften 4/F-J/Hinterer Rollbodenantrieb @ 60\mod_1297685432944_78.docx @ 559692 @ 44 @ 1
13.16.1.2

Rear Floor Conveyor Drive

Pos: 59.118 /Abkürzungen /Abkürzungen sprachneutral/Rundballenpressen/Comprima CV 150 / CV 210 XC @ 199\mod_1384939505399_0.docx @ 1676121 @ @ 1
Comprima CV 150 / CV 210 XC
Pos: 59.119 /BA/Wartung/Rundballenpresse/Spannen Ketten hinterer Rollbodenantrieb CV150/ CV210 @ 75\mod_1309438813086_78.docx @ 663512 @ @ 1
2

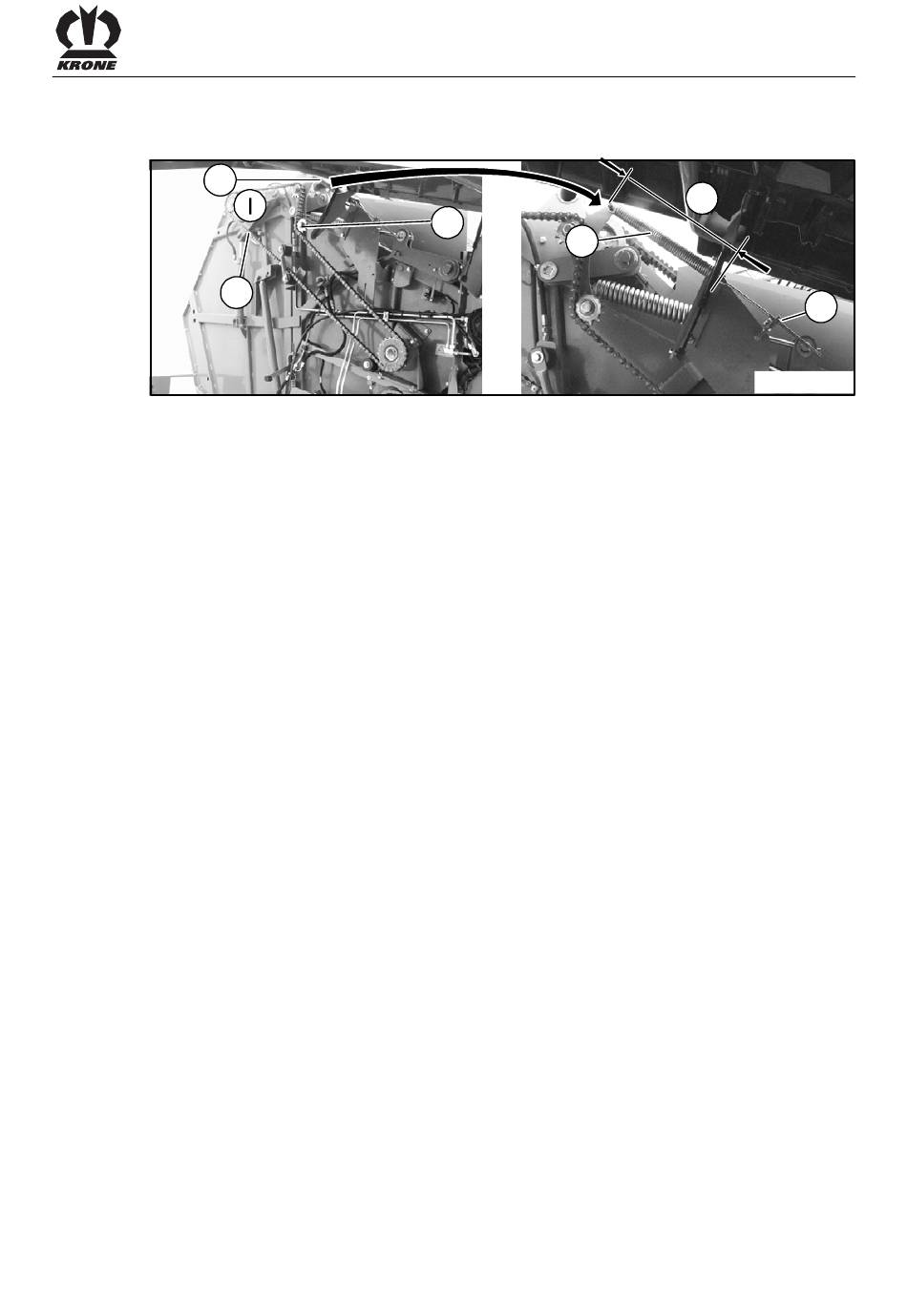

Fig. 239
The rear floor conveyor drive is located on the right side of the machine.
Check the Chain Tension:
The length of the spring (a) when tightened
must be:
Correct the Chain Tension:
• Turn the nut (4) to increase or decrease the spring tension of the tension spring (2) on the
threaded rod until the distance (a) is set on the above mentioned values.
Pos: 59.120 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
1
3
2
approx. 495 mm (CV150XC)
approx. 465 mm (CV210XC)
Maintenance
a
4
RPN00071_1
305
