Tracing

Trace Monitor

Polycom, Inc.
The results that are displayed on the Trace tab are now based both on the trace
level and the trace filter you have specified.
You can apply more than one filter at a time. When you want to apply another
filter, simply go through steps 1-5 again.
To Clear All Filters
From the Trace menu, click the Clear Trace Filters button.
a
The trace monitor displays information about the host and KIRK Wireless
Server 8000 or KIRK Wireless Server 2500 connection.
To View Trace Monitor Information
On the Trace menu, select a Trace Level.
1
Select the status Monitor check-box. The information is displayed in the
2
status window.

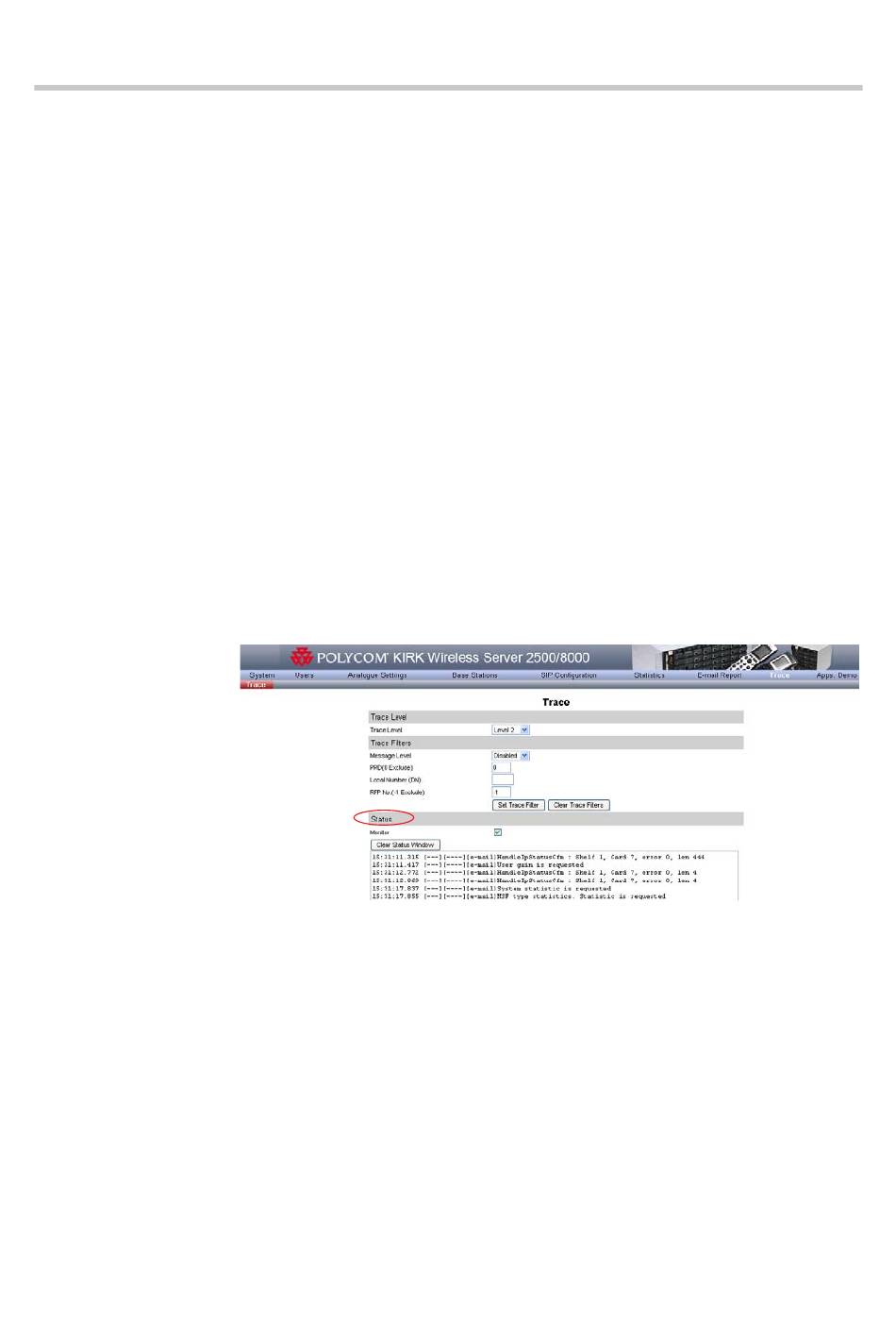

Figure 8-3 Viewing Serial Monitor Information
Select Clear Status Window to remove the information.
3
To View or Configure Trace Mode Command Interpreter
On the Trace menu, type in the Command field the syntax corresponding
1
to the command you want to view or configure (e.g. Trace (log) =T,
Debug=D, Messaging=M, etc.).
Click Send to view the selected information. The information is displayed
2
in the status window.
Click Clear Status Window to remove the information.
3
Tracing Communication
