Navigating the Internal Web Pages

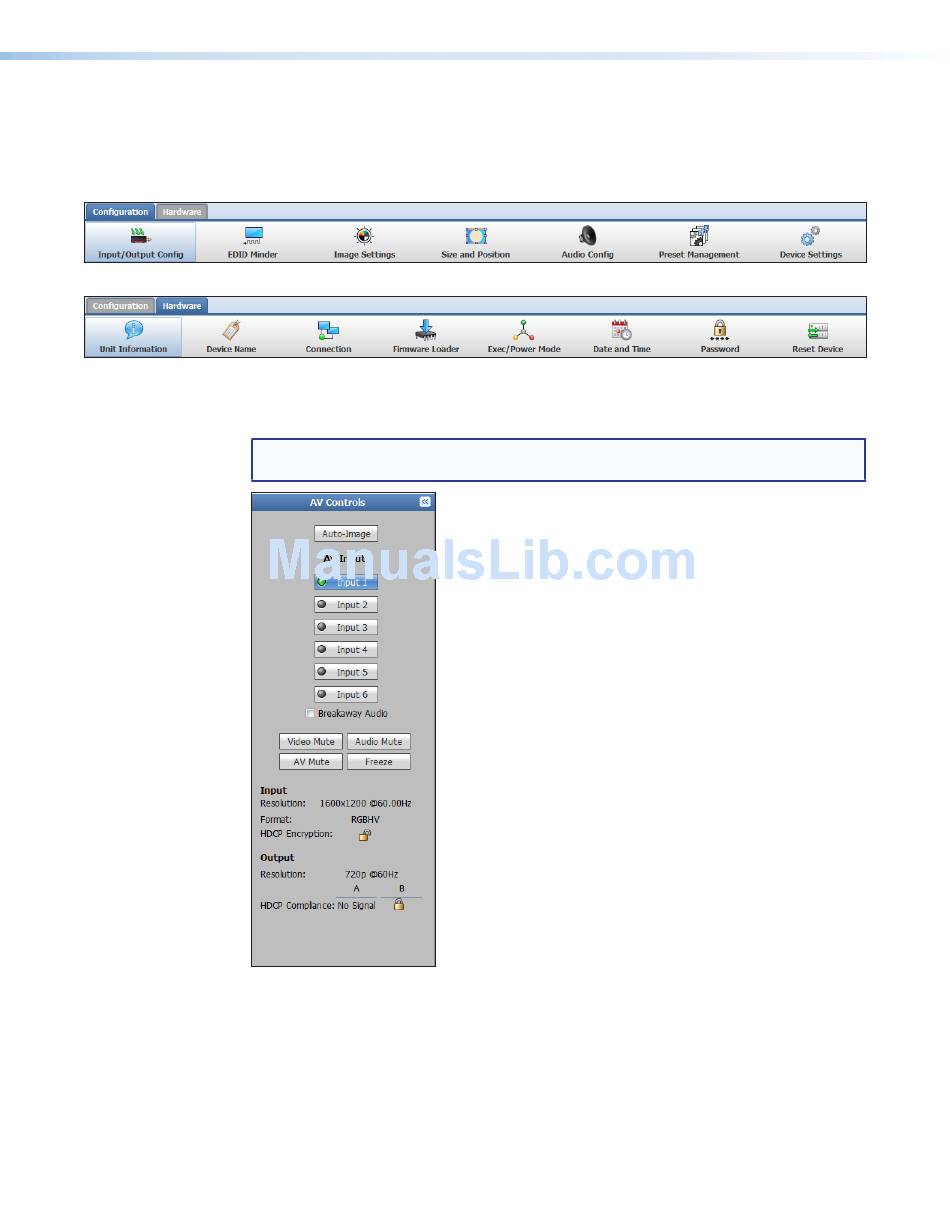

The IN1606 internal Web pages open with two main tabs: Configuration and Hardware.
Below the tabs for each page is a global navigation bar with icons for ease of navigation
through the various options. The two pages have specific groups of options.
Figure 18.
Figure 19.

AV Controls Panel

NOTE: This panel can be hidden or revealed by clicking on the double arrow button on
Figure 20.
The AV Controls panel is used to control AV settings such as input selection, performing a
one-time Auto-Image to an input, video and audio mute, and image freeze.
At the bottom of the panel is a summary of the current active input and output status, which
includes signal format and HDCP status.
Configuration Global Navigation Bar
Hardware Global Navigation Bar
the top right of the panel.
AV Controls Panel
IN1606 Scaling Presentation Switcher • Internal Web Pages 46
