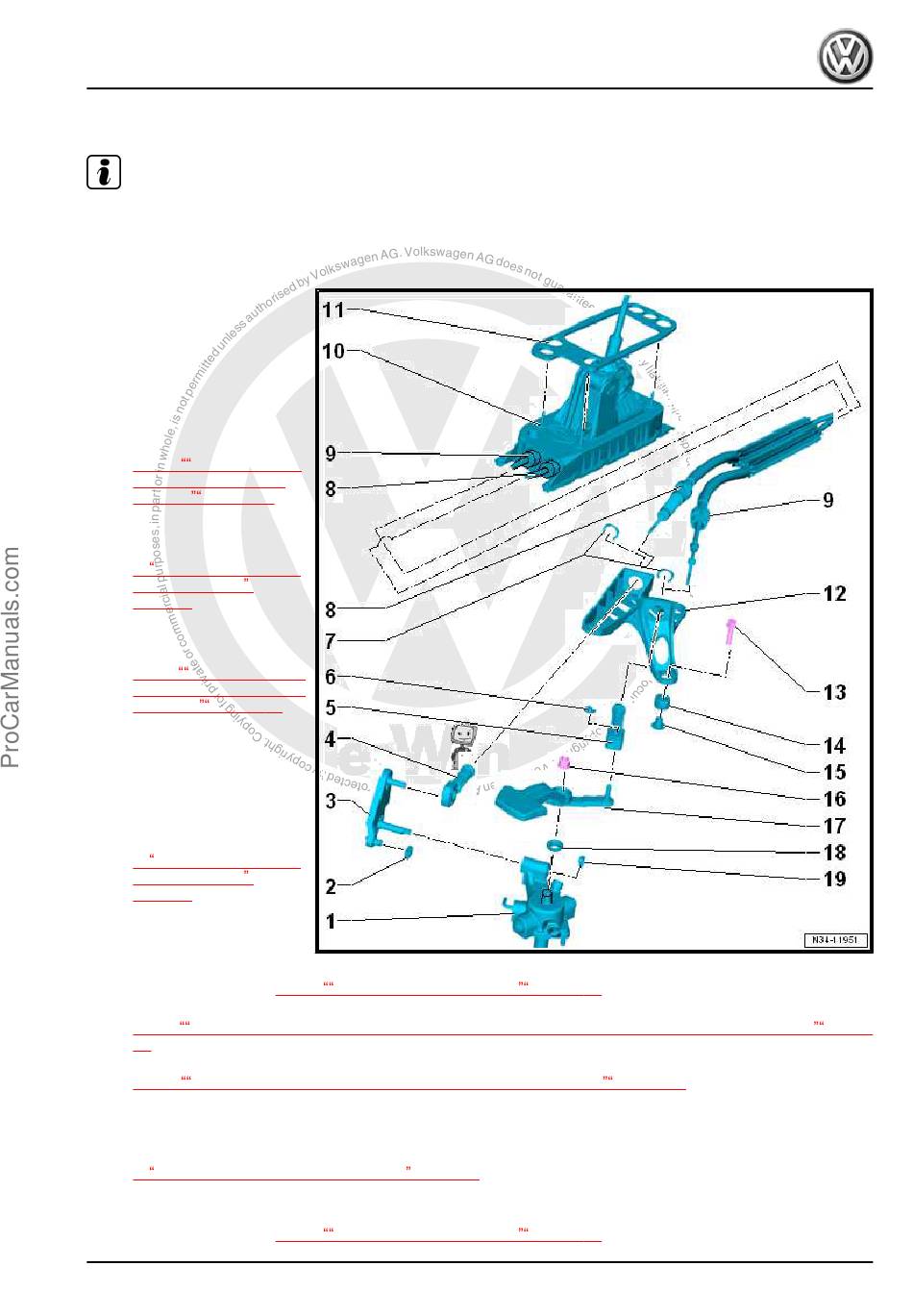

Overview - Selector Mechanism
Note
Lubricate the bearing areas and the sliding surfaces.
♦
Grease allocation. Refer to the Parts Catalog.
♦
1 - Gearshift Shaft with Gear‐
shift Cover
2 - Sliding Shoe
3 - Relay Lever
❑ Allocation. Refer to the
Parts Catalog.
❑ Installed position. Refer
to
⇒ Fig. Selector Lever/
Relay Lever Installed
Position , page 61
❑ Adjust the gearshift
mechanism after instal‐
ling. Refer to
⇒ 1.6 Selector Mecha‐
nism, Adjusting ,
page 63
.
❑ Relay lever and cable
retainer, removing and
installing. Refer to
⇒ Fig. Remove the Re‐
lay Lever and the Cable
Retainer. , page 58
4 - Cable Retainer
❑ For attaching the selec‐
tor cable to the relay lev‐
er
❑ Adjust the gearshift
mechanism after instal‐
ling. Refer to
⇒ 1.6 Selector Mecha‐
nism, Adjusting ,
page 63
.
❑ Do not interchange, ca‐
ble locking mechanisms
for selector cable on
linkage lever and for shift cable on transmission shift lever are different
❑ Allocation. Refer to
❑ Remove from the relay lever. Refer to
⇒ Fig. With the Relay Lever Removed: Pry the Selector Cable Retainer Off of the Relay Lever. , page
59
❑ Press onto the relay lever. Refer to
⇒ Fig. Installing the Selector Cable Retainer on the Relay Lever , page 59
5 - Cable Retainer
❑ For attaching the shift cable to the transmission shift lever
❑ Adjust the gearshift mechanism after installing. Refer to
⇒ 1.6 Selector Mechanism, Adjusting , page 63
❑ Do not interchange, cable locking mechanisms for selector cable on linkage lever and for shift cable on
transmission shift lever are different
❑ Allocation. Refer to
⇒ Fig. Cable Retainer Allocation , page 60
⇒ Fig. Cable Retainer Allocation , page 60
