2.2.1.3 Running the InformaCast Enabled Speaker with Auxiliary Power
In Figure
Network connection or from an external source.
Operations Guide
2-3, the power for the InformaCast Enabled Speaker can either come from an 802.3af
Caution
Operational Note:
InformaCast Enabled Speaker is connected to a PoE power source through J1.
Improper operation or equipment damage may occur.
GENERAL ALERT

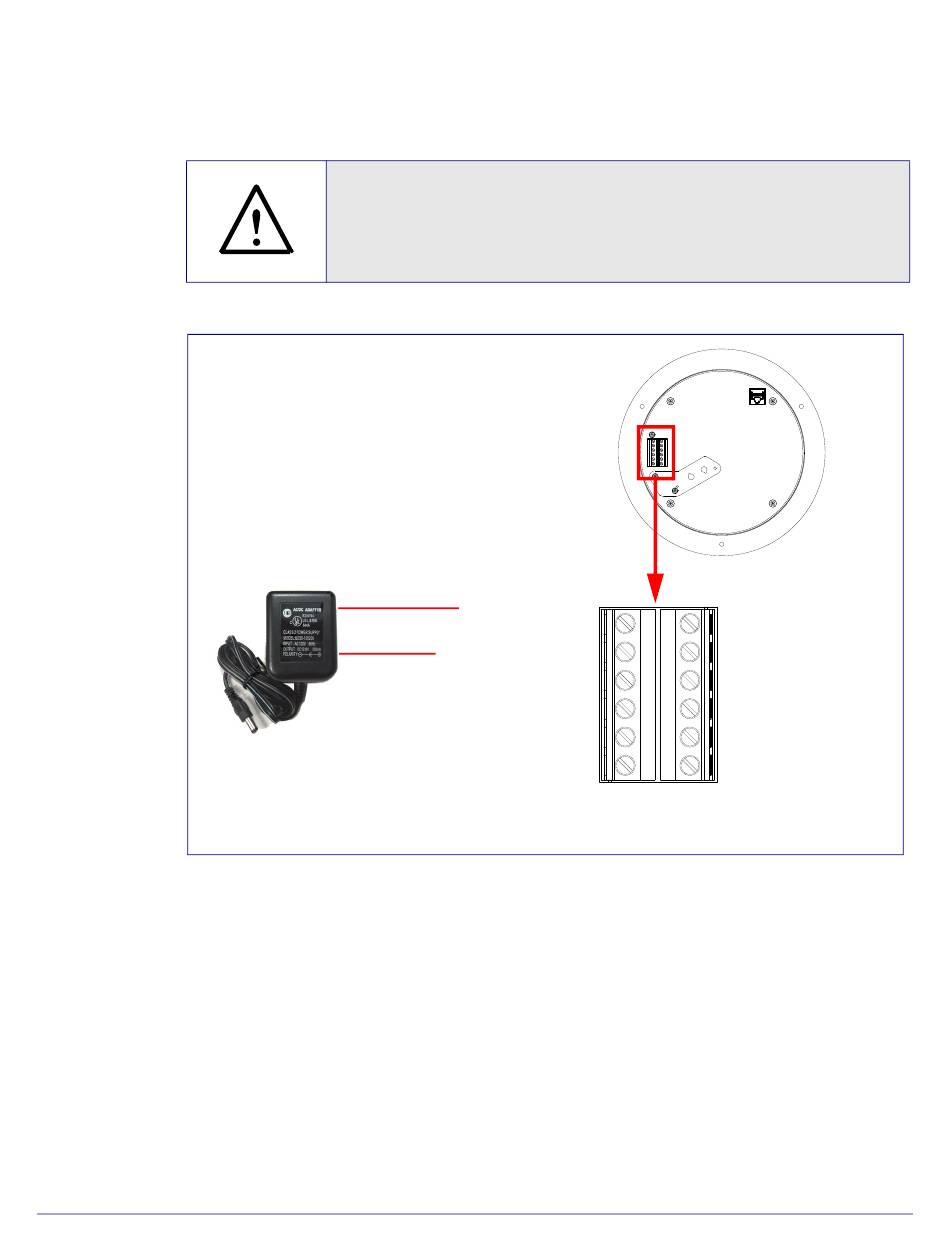

Figure 2-3. Running the Speaker with Auxiliary Power
+12-24 VDC
GND
AC adaptor
+12-24 VDC @ 1 Amps
(UL-listed, LPS-rated)
Do not connect an auxiliary power supply when the
Speaker
AUX POWER (+)
(+24VDC @ 1A)
AUX POWER (-)
RELAY COM
RELAY NO
+5V OUT
N/C
J10
CLASS II WIRING
931251H
Installing the InformaCast Enabled Speaker
Device Configuration
AUX SPEAKER (-)
AUX SPEAKER (+)
GND
LINE OUT (-)
LINE OUT (+)
N/C
J9
