To mount the speaker:
1. Use the TEMPLATE to cut the speaker hole and prepare holes for the screws
Dry Wall Mounting Kit
Ceiling Mounting Screw
Operations Guide
template is located on the back page of the Installation Quick Reference Guide that is delivered
with each speaker.
Dry Wall Mounting Kit
Plastic Ribberd Anchor (3x)
#8 Nylon Thumb Nut (3x)
#8 Fender Washer (3x)
*Ceiling Tile or Dry Wall
*Optional Reinforcement Mount
P/N: 010991A (Sold Seperately)
Template
Speaker
VoIP V3 Speaker
Assembly
Assembly
#6 Screw (3x)
#8-32x1 1/4" (3X)

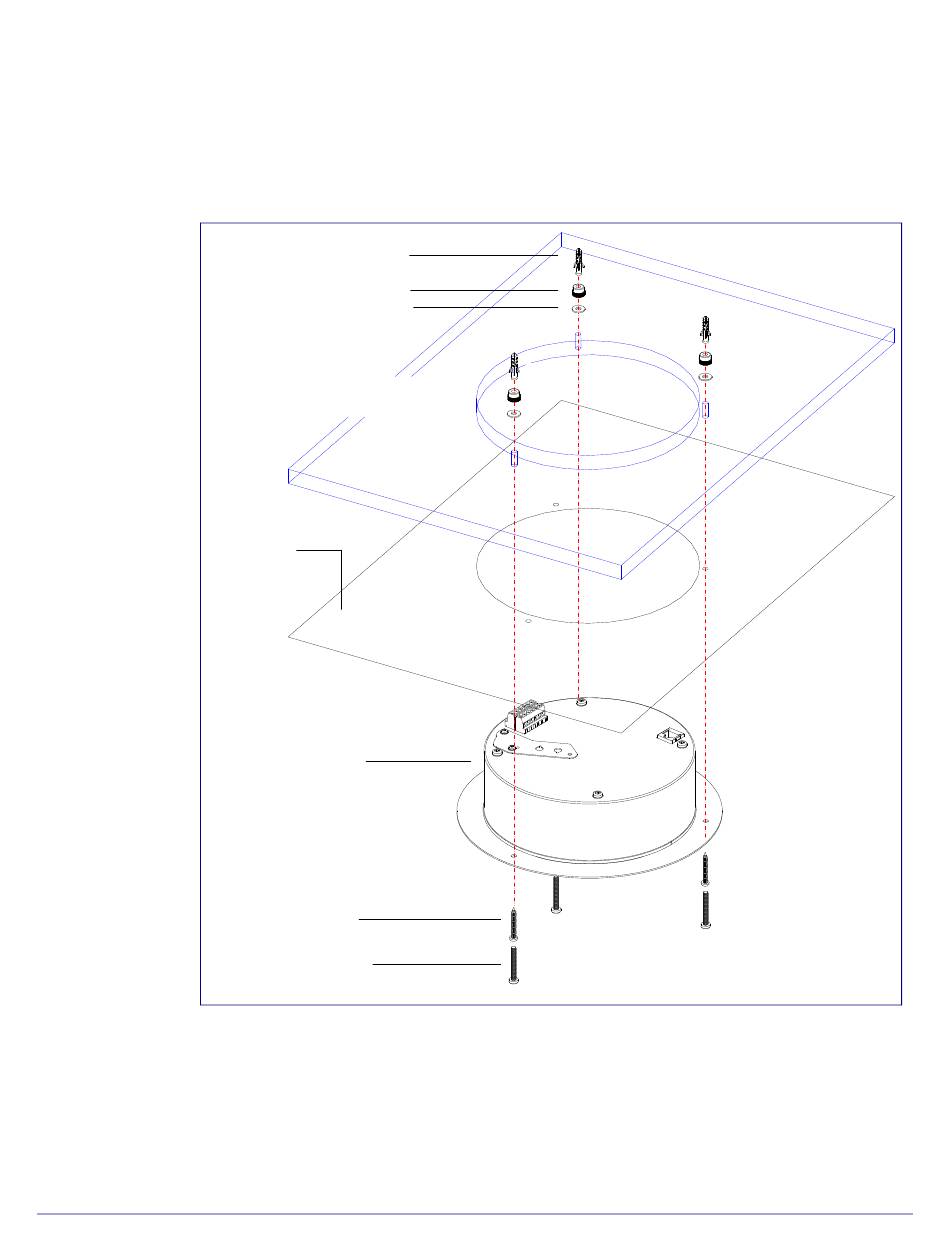

Figure A-1. Mounting the Speaker
