2.2.1.2 InformaCast Enabled Speaker (with PoE Injector) to a 802.3af Compliant PoE
Switch
In Figure
separately). A PoE Injector is a power supply solution for those who have a standard Non PoE
Switch.
PoE Injector (Part #011124)
Operations Guide
2-2, if a PoE switch is not available, you will need a PoE Injector, part #010867 (ordered

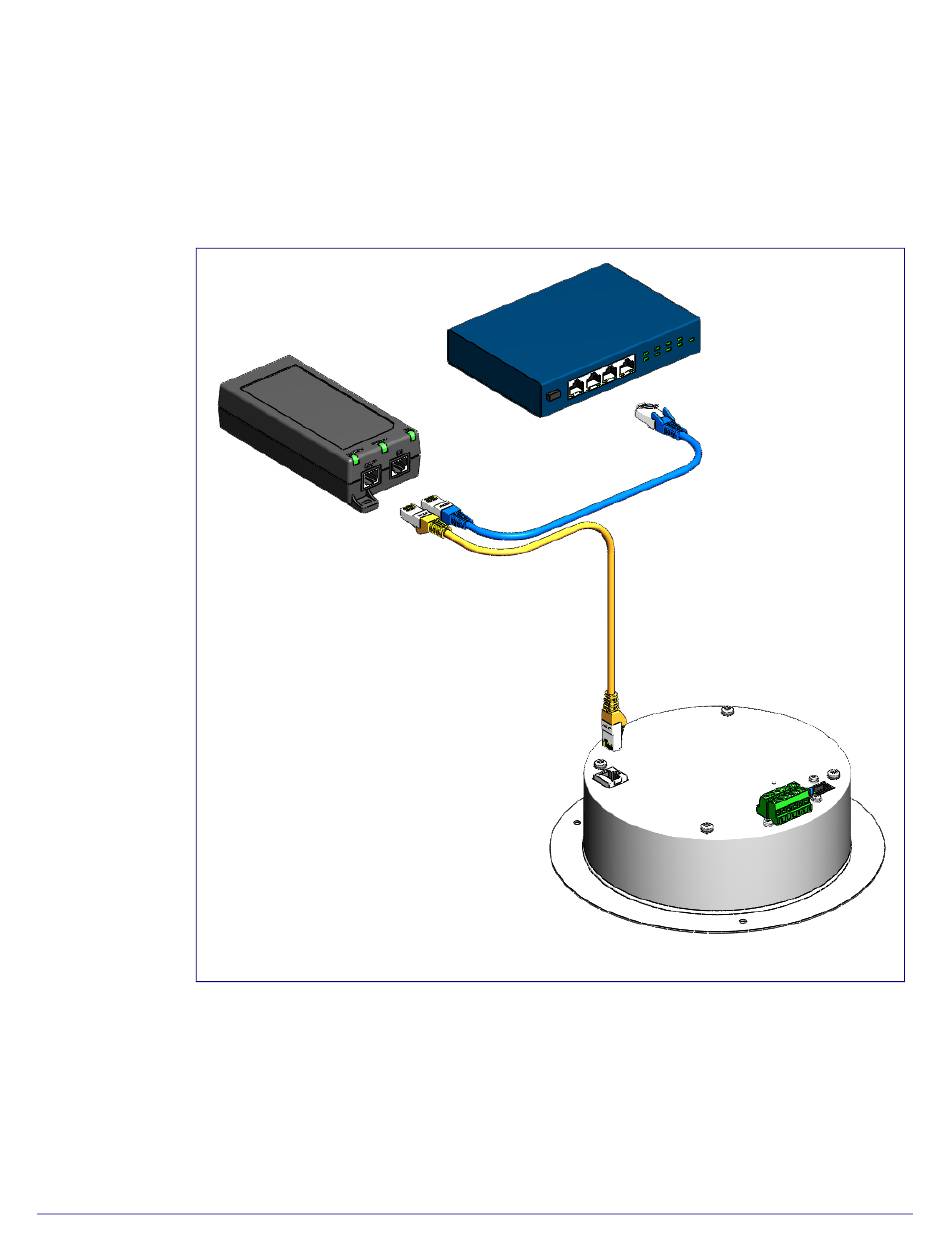

Figure 2-2. InformaCast Enabled Speaker (with PoE Injector) to a Non PoE Switch
Cat 5 Ethernet cable
931251H
Installing the InformaCast Enabled Speaker
Device Configuration
Non PoE Switch
InformaCast Enabled Speaker
