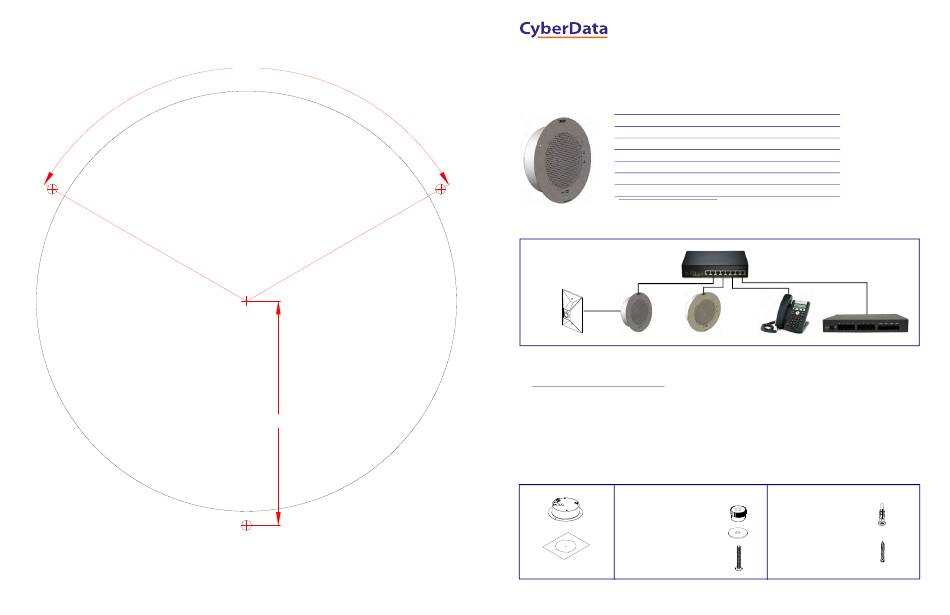

CyberData 011397 Installation Quick Reference

VoIP Speaker
Mounting Template
Speaker Hole Diameter:
Screw Hole Diameter:
Dimensions are in inches [millimeter]
© 2016, CyberData Corporation, ALL RIGHTS RESERVED 931190A
120°
7.50 [190.5]
0.1875 [4.75]
4.00 [101.6]
Quick Reference
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
Installation Quick Reference

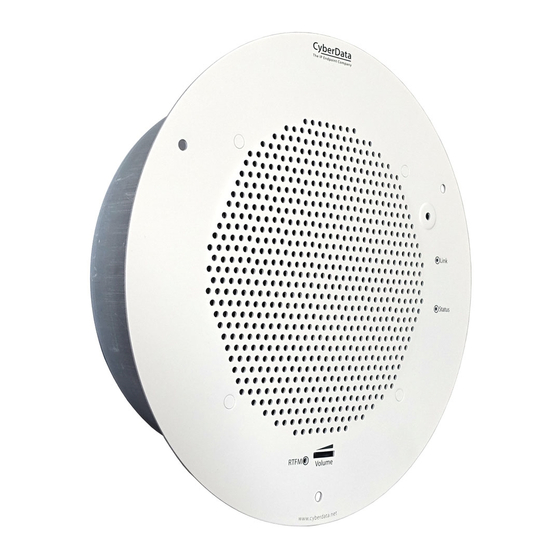

SIP Talk-Back Speaker
The IP Endpoint Company
SIP Compliant
011397*, RAL 9002, Gray White, Standard
011398*, RAL 9003, Signal White, Optional
*Replaces the 011180 and 011181 numbers.
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
802.3af/at Compliant Ethernet Switch
Optional Remote Call Button
(not included and sold separately)
SIP Talk-Back Speaker SIP Speaker
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
http://www.cyberdata.net/voip/011397/
• Create a plan for the locations of your SIP Talk-Back Speakers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Speaker Assembly (1) Drop Ceiling Mounting Kit
(3) #8 Nylon Thumb Nuts
(1) Template
(3) #8 Fender Washers
(3) 8-32 x 1 1/4" Mounting
Screws
* See the last page
of this document
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
IP Phone IP PBX Server
(1) Drywall Mounting Kit
(3) Plastic Ribbed Anchors
(3) #8 Sheet Metal Screws
931190A © 2016, CyberData Corporation, ALL RIGHTS RESERVED
