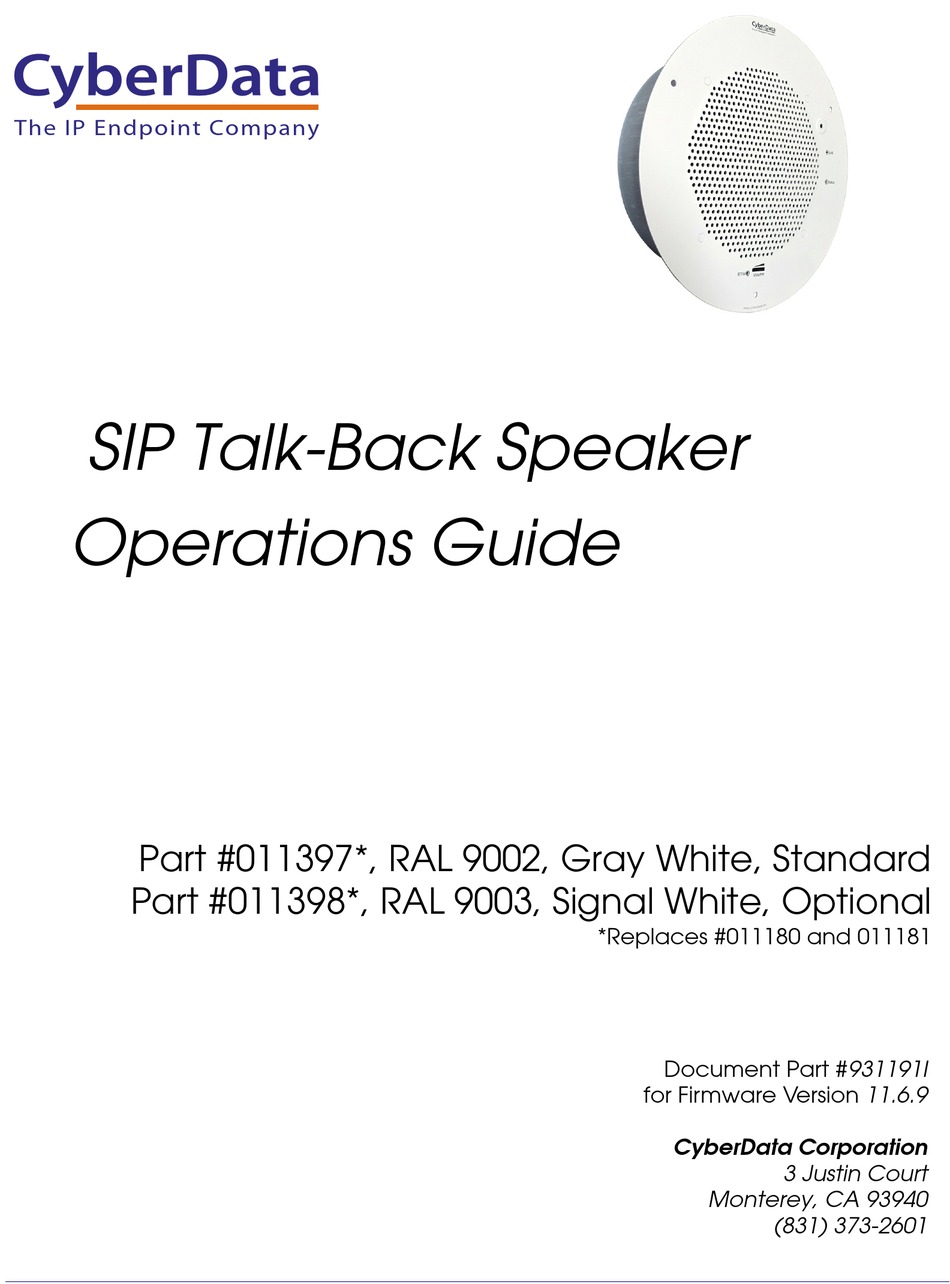

The IP Endpoint Company

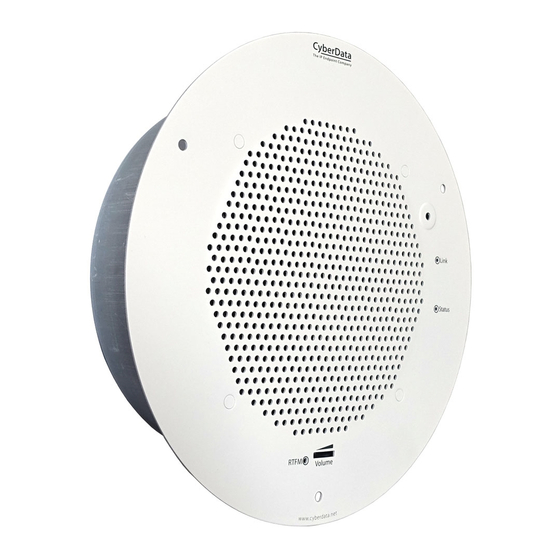

SIP Talk-Back Speaker
Operations Guide
Part #011397*, RAL 9002, Gray White, Standard
Part #011398*, RAL 9003, Signal White, Optional
*Replaces #011180 and 011181
Document Part #931191I
for Firmware Version 11.6.9
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601
