CyberData 011395 Operation Manual

Informacast enabled speaker
Hide thumbs Also See for 011395:
Table of Contents

Advertisement

Quick Links

Download this manual

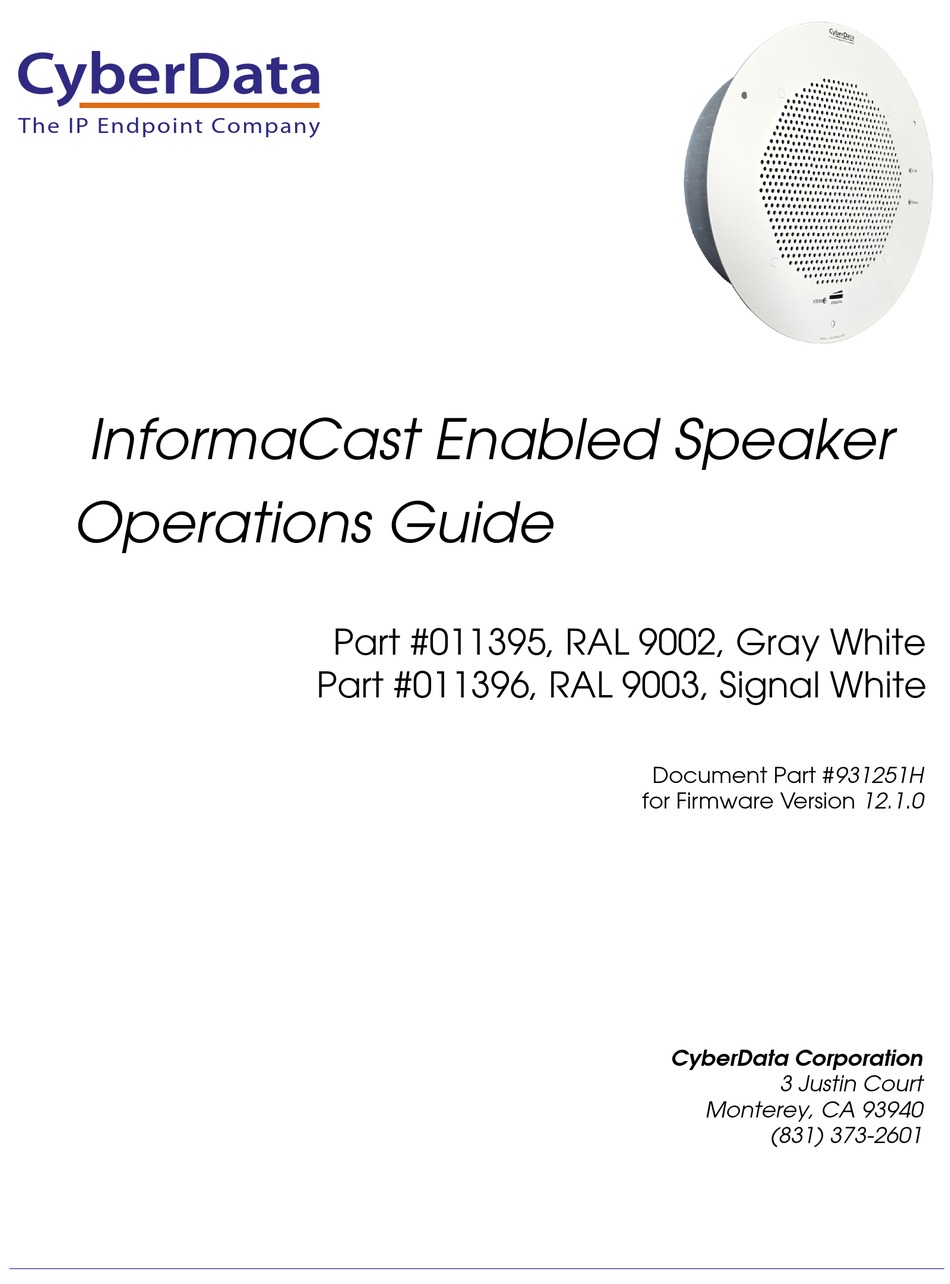

The IP Endpoint Company

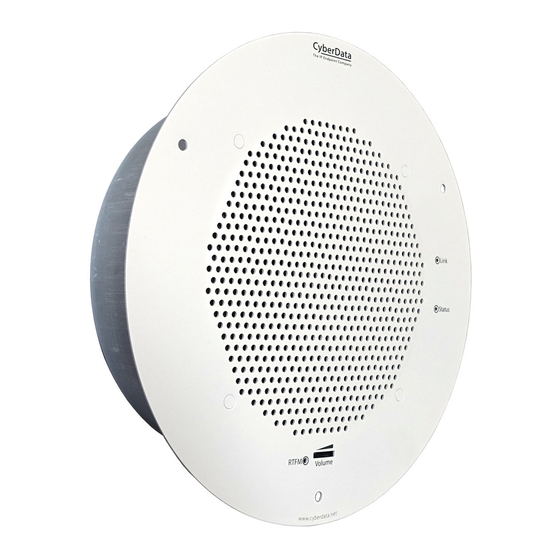

InformaCast Enabled Speaker
Operations Guide
Part #011395, RAL 9002, Gray White
Part #011396, RAL 9003, Signal White
Document Part #931251H
for Firmware Version 12.1.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 011395 and is the answer not in the manual?

Questions and answers

Related Manuals for CyberData 011395

Summary of Contents for CyberData 011395

  • Page 1 The IP Endpoint Company  InformaCast Enabled Speaker Operations Guide Part #011395, RAL 9002, Gray White Part #011396, RAL 9003, Signal White Document Part #931251H for Firmware Version 12.1.0 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
  • Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
  • Page 3 Table 2-13, "SIP Page Parameters" to add the SRTP setting Browsers Supported The following browsers have been tested against firmware version 12.1.0: • Chrome (version 78.0.3904.70) • Firefox (version 72.0.2) • Microsoft Edge (80.0.361.50) • Internet Explorer (version: 11) Operations Guide 931251H CyberData Corporation...
  • Page 4 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. Operations Guide 931251H CyberData Corporation...
  • Page 5 To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT Operations Guide 931251H CyberData Corporation...
  • Page 6 Power over Ethernet (as per IEEE 802.3af standard) RTFM Reset Test Function Management Session Initiated Protocol SRTP Secure Real Time Protocol u-law A companding algorithm, primarily used in the digital telecommunication Unified Communications VoIP Voice over Internet Protocol Operations Guide 931251H CyberData Corporation...

  • Page 7: Table Of Contents

    B.1.2 In a LINUX Environment ....................98 B.1.3 In a Windows Environment ..................98 Appendix C Troubleshooting/Technical Support C.1 Frequently Asked Questions (FAQ) ..................99 C.2 Documentation ........................99 C.3 Contact Information ......................100 C.4 Warranty and RMA Information ....................100 Index Operations Guide 931251H CyberData Corporation...

  • Page 8: Chapter 1 Product Overview

    To identify the InformaCast Enabled Speaker, look for a model number label similar to the one shown  Figure 1-1. The model number on the label should be one of the following: • 011395, RAL 9002, Gray White • 011396, RAL 9003, Signal White Figure 1-1. Model Number Label www.cyberdata.net...

  • Page 9: Installation

    Section 2.2.1.3, "Running the InformaCast Enabled Speaker with Auxiliary Power" • Section 2.2.2.2, "InformaCast Enabled Speaker with an External Device" • Section 2.2.2.3, "InformaCast Enabled Speaker with Auxiliary Speaker Connection" • Section 2.2.2.4, "InformaCast Enabled Speaker with Line Out" Operations Guide 931251H CyberData Corporation...

  • Page 10: Product Features

    HTTPS or HTTP web based configuration. HTTPS is enabled by default • 802.11q VLAN tagging • Configurable event generation for device health and status monitoring • Web-based upgradeable firmware • Support for multiple SIP servers for redundancy Operations Guide 931251H CyberData Corporation...

  • Page 11: Supported Protocols

    Audio Encodings PCMU (G.711 mu-law) PCMA (G.711 A-law) Packet Time 20 ms G.722 G.729 1.5 Supported SIP Servers The following link contains information on how to configure the speaker for the supported SIP servers: https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers Operations Guide 931251H CyberData Corporation...

  • Page 12: Specifications

    Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant Warranty 2 Years Limited Part number 011396 a.Dimensions are measured from the perspective of the product being upright with the front of the product facing you. Operations Guide 931251H CyberData Corporation...

  • Page 13: Optional Connections (J9 And J10)

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Operations Guide 931251H CyberData Corporation...

  • Page 14: Chapter 2 Installing The Informacast Enabled Speaker

    The installation template for the InformaCast Enabled Speaker is located on the Installation Quick Reference Guide that is included in the packaging with each speaker. Table 2-1. Parts Quantity Part Name Illustration InformaCast Enabled Speaker Assembly Installation Quick Reference Guide Speaker Mounting Accessory Kit (Part #070054A) Operations Guide 931251H CyberData Corporation...

  • Page 15: Device Configuration

    Installing the InformaCast Enabled Speaker Device Configuration 2.2 Device Configuration Set up and configure each speaker before you mount it. CyberData delivers each speaker with the following factory default values: Table 2-2. Factory Network Default Settings—Default of Network Parameter Factory Default Setting...

  • Page 16: Connect Power To The Speaker

    InformaCast Enabled Speaker to a 802.3af compliant PoE switch via a Cat 5 Ethernet cable. Figure 2-1. InformaCast Enabled Speaker to a 802.3af Compliant PoE Switch Cat 5 Ethernet cable 802.3af Compliant PoE Switch InformaCast Enabled Speaker Operations Guide 931251H CyberData Corporation...
  • Page 17 A PoE Injector is a power supply solution for those who have a standard Non PoE Switch. Figure 2-2. InformaCast Enabled Speaker (with PoE Injector) to a Non PoE Switch PoE Injector (Part #011124) Non PoE Switch Cat 5 Ethernet cable InformaCast Enabled Speaker Operations Guide 931251H CyberData Corporation...
  • Page 18 AUX SPEAKER (-) (+24VDC @ 1A) AUX POWER (-) AUX SPEAKER (+) RELAY COM RELAY NO LINE OUT (-) +5V OUT LINE OUT (+) AC adaptor +12-24 VDC @ 1 Amps (UL-listed, LPS-rated) CLASS II WIRING Operations Guide 931251H CyberData Corporation...

  • Page 19: Installation Options

    Connect Through Backplate / Slot Mounting Screw Backplate Port Cover Flip Over Adapter Port Cover Cable Slot Dimple Key Bump Dimple Key Bump Slot RGB Strobe Assembly Auxiliary RGB Strobe Ceiling Speaker Assembly Mounting Screw Slot Operations Guide 931251H CyberData Corporation...
  • Page 20 Depending Upon Controlled Device AC or DC-rated Requirements Depending Upon AC or DC External Device Power Source AC or DC Requirements Power Source as Required by POWER SUPPLY an External Device MAX. 30 VDC @ 1A Operations Guide 931251H CyberData Corporation...
  • Page 21 *Because of the limitations of PoE power,  when running the Speaker with a second auxiliary speaker, the analog or digital volume level setting CLASS II WIRING must not exceed a setting of 6. Operations Guide 931251H CyberData Corporation...
  • Page 22 Output Impedance 10k ohm AUX POWER (+) AUX SPEAKER (-) (+24VDC @ 1A) AUX POWER (-) AUX SPEAKER (+) RELAY COM RELAY NO LINE OUT (-) +5V OUT LINE OUT (+) Amplifier CLASS II WIRING Factory Floor Operations Guide 931251H CyberData Corporation...

  • Page 23: Confirm That The Speaker Is Operational And Linked To The Network

    The front power/status LED will remain solid on during operation. 2.2.3.2 Link LED • The Link LED is illuminated when the network link to the speaker is established. • The Link LED blinks to indicate network traffic. Operations Guide 931251H CyberData Corporation...

  • Page 24: Confirm The Ip Address And Test The Audio

    The speaker will use DHCP to obtain the new IP address (DHCP-assigned address or default to 10.10.10.10 if a DHCP server is not present). Note Pressing and holding the RTFM button for longer than five seconds will restore the speaker to the factory default settings. Operations Guide 931251H CyberData Corporation...

  • Page 25: Adjust The Volume

    External (volume knob). The external volume control can be disabled from the web interface by selecting Disable Volume Control Dial on the Device Page (see Section 2.3.5, "Configure the Device"). Figure 2-10. Volume Control Volume control dial Operations Guide 931251H CyberData Corporation...

  • Page 26: How To Set The Factory Default Settings

    2. The speaker announces that it is restoring the factory default settings. Note The speaker will use DHCP to obtain the new IP address (DHCP-assigned address or default to 10.10.10.10 if a DHCP server is not present). Operations Guide 931251H CyberData Corporation...

  • Page 27: Factory Default Settings

    Table 2-3. Factory Default Settings Parameter Factory Default Setting IP Addressing DHCP IP Address 10.10.10.10 Web Access Username admin Web Access Password admin Subnet Mask 255.0.0.0 Default Gateway 10.0.0.1 a. Default if there is not a DHCP server present. Operations Guide 931251H CyberData Corporation...

  • Page 28: Informacast Enabled Speaker Web

    Link to the Multicast page. Link to the SSL page. Link to the Sensor page. Link to the Audiofiles page. Link to the Events page. Link to the Autoprovisioning page. Link to the Firmware page. Operations Guide 931251H CyberData Corporation...

  • Page 29: Using The Toggle Help Button

    2. You will see a question mark ( ) appear next to each web page item that has been provided with a short description by the Help feature. See Figure 2-13. Figure 2-13. Toggle Help Button and Question Marks Question mark  appears next to the web page items Operations Guide 931251H CyberData Corporation...
  • Page 30 3. Move the mouse pointer to hover over the question mark ( ), and a short description of the web page item will appear. See Figure 2-14. Figure 2-14. Short Description Provided by the Help Feature A short description of the  Question mark web page item will appear Operations Guide 931251H CyberData Corporation...

  • Page 31: Log In To The Configuration Home Page

    Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.   CyberData’s VoIP Discovery Utility program is available at the following website address: https://www.cyberdata.net/pages/discovery...
  • Page 32 Installing the InformaCast Enabled Speaker Device Configuration Figure 2-15. Home Page CyberData InformaCast Enabled Speaker 396000001 v12.1.0 Operations Guide 931251H CyberData Corporation...
  • Page 33 Shows the InformaCast server IP addresses. Configuration File Shows the configuration file. B’casts Accepted Shows the number of B’casts accepted. B’casts Rejected Shows the number of B’casts rejected. B’casts Active Shows the number of active B’casts. Operations Guide 931251H CyberData Corporation...
  • Page 34 Toggle Help button, and you will see a question mark ( ) appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931251H CyberData Corporation...

  • Page 35: Configure The Device

    1. Click the Device menu button to open the Device page. See Figure 2-16 Figure 2-17. Figure 2-16. Device Page CyberData InformaCast Enabled Speaker These settings will only appear if you are using the Clock Kit. If you are not...
  • Page 36 Installing the InformaCast Enabled Speaker Device Configuration Figure 2-17. Device Page The strobe settings will only appear if you are using the Strobe Kit. If you are not using the Strobe Kit, you will not see the strobe settings. Operations Guide 931251H CyberData Corporation...
  • Page 37 This setting enables or disables the ambient light sensor. Clock Colon Type This setting allows you to select the clock colon type. Use 24 Hour Time When selected, the time will be show in 24 hour format on the optional clock display. Operations Guide 931251H CyberData Corporation...
  • Page 38 350ms during the duration of the event. Slow Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0 over the course of about 3.5 seconds during the duration of the event. Operations Guide 931251H CyberData Corporation...
  • Page 39 Code used to deactivate the relay when entered on a phone during a SIP call with the device. Activate Relay with DTMF Code must be enabled. Enter up to 25 digits (* and # are supported). Operations Guide 931251H CyberData Corporation...
  • Page 40 First click on the Toggle Help button, and you will see a question mark ( ) appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931251H CyberData Corporation...
  • Page 41 Time of day to change M11.1.0/2:00:00 The date and time when daylight savings ends. The eleventh month (November) The 1st occurrence of the day (next item) in the month Sunday /2:00:00 Time of day to change Operations Guide 931251H CyberData Corporation...
  • Page 42 CST, Central US GMT-5 EST, Eastern US GMT-4 Atlantic, Canada GMT-3 Brazilia, Buenos Aries GMT-2 Mid-Atlantic GMT-1 Cape Verdes Greenwich Mean Time, Dublin GMT+1 Berlin, Rome GMT+2 Israel, Cairo GMT+3 Moscow, Kuwait GMT+4 Abu Dhabi, Muscat Operations Guide 931251H CyberData Corporation...
  • Page 43 Time Zone City or Area Zone Crosses GMT+5 Islamabad, Karachi GMT+6 Almaty, Dhaka GMT+7 Bangkok, Jakarta GMT+8 Hong Kong, Beijing GMT+9 Tokyo, Osaka GMT+10 Sydney, Melbourne, Guam GMT+11 Magadan, Soloman Is. GMT+12 Fiji, Wellington, Auckland Operations Guide 931251H CyberData Corporation...

  • Page 44: Configure The Audio

    Installing the InformaCast Enabled Speaker Device Configuration 2.3.6 Configure the Audio 1. Click the Audio menu button to open the Audio page. See Figure 2-16. Figure 2-19. Audio Page CyberData InformaCast Enabled Speaker Operations Guide 931251H CyberData Corporation...
  • Page 45 First click on the Toggle Help button, and you will see a question mark ( ) appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931251H CyberData Corporation...

  • Page 46: Configure The Network Parameters

    Installing the InformaCast Enabled Speaker Device Configuration 2.3.7 Configure the Network Parameters 1. Click the Network menu button to open the Network page (Figure 2-20). Figure 2-20. Network Page CyberData InformaCast Enabled Speaker Operations Guide 931251H CyberData Corporation...
  • Page 47 Shows the current DNS Server 2 address. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. Operations Guide 931251H CyberData Corporation...
  • Page 48 First click on the Toggle Help button, and you will see a question mark ( ) appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931251H CyberData Corporation...

  • Page 49: Configure The Sip (Session Initiation Protocol) Parameters

    2.3.8 Configure the SIP (Session Initiation Protocol) Parameters 1. Click on the SIP menu button to open the SIP page (Figure 2-21). Figure 2-21. SIP Page—Top CyberData InformaCast Enabled Speaker The strobe settings will only appear if you are using the Strobe Kit.
  • Page 50 Installing the InformaCast Enabled Speaker Device Configuration Figure 2-22. SIP Page—Bottom The strobe settings will only appear if you are using the Strobe Kit. If you are not using the Strobe Kit, you will not see the strobe settings. Operations Guide 931251H CyberData Corporation...
  • Page 51 SIP registration authentication. Enter up to 64 alphanumeric characters. Backup SIP Auth Password 1 Specify the Authenticate Password for the first backup SIP server. This parameter is required for SIP registration authentication. Enter up to 64 alphanumeric characters. Operations Guide 931251H CyberData Corporation...
  • Page 52 When enabled, the device will send one registration with an expiry of 0 on boot. Keep Alive Period The minimum time in milliseconds between keep-alive packets sent for nat traversal. A value of 0 will disable keep alive packets. Operations Guide 931251H CyberData Corporation...
  • Page 53 Description SIP Ring Strobe Settings The following strobe settings will only appear if a CyberData Strobe product is connected to your device. If a CyberData Strobe product is not connected to your device, you will not see the strobe settings.
  • Page 54 The Remote SIP Port is the port number the device will use as the destination port when sending SIP messages for the Nightringer extension. The default Remote SIP Port is 5060. The supported range is 0-65536. Enter up to 5 digits. Operations Guide 931251H CyberData Corporation...
  • Page 55 “fade” type scenes. The red LED value for Nightringer. Green The green LED value for Nightringer. Blue The blue LED value for Nightringer. Use this button to preview the strobe flashing behavior for the Nightringer Strobe Settings. Operations Guide 931251H CyberData Corporation...
  • Page 56 Note For specific server configurations, go to the following website address: https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers Note The maximum number of total characters in the dial-out field is 64. Operations Guide 931251H CyberData Corporation...
  • Page 57 The delayed DTMF functionality is available in Point-to-Point Mode. Note Receiving point-to-point SiP calls may not work with all phones. Figure 2-23. SIP Page Set to Point-to-Point Mode CyberData InformaCast Enabled Speaker Device is set to NOT register with a SiP server Operations Guide...
  • Page 58 DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF tone 4, wait 4 seconds, send out DTMF tone 1 Note The maximum number of total characters in the dial-out field is 25. Operations Guide 931251H CyberData Corporation...

  • Page 59: Configure The Multicast Parameters

    RTP audio streams. A paging zone can consist of one or many CyberData multicast group-enabled products. There is no limit to how many speakers can be in a given paging zone. Each multicast group is defined by a multicast address and port number.
  • Page 60 How bright the strobe will blink on a multicast page. This is the maximum brightness for “fade” type scenes. The red LED value for Multicast. Green The green LED value for Multicast. Blue The blue LED value for Multicast. Operations Guide 931251H CyberData Corporation...
  • Page 61 SIP calls, multicast streams, ring tones, ringback tones, and nightring tones are all prioritized. Ringtones and Ringtones all play at the same priority level. This means that it is possible to have a nightring tone Nightringtones and a normal ringtone playing at the same time. Operations Guide 931251H CyberData Corporation...

  • Page 62: Configure The Ssl Parameters

    Installing the InformaCast Enabled Speaker Device Configuration 2.3.10 Configure the SSL Parameters 1. Click SSL menu button to open the SSL page (Figure 2-25). Figure 2-25. SSL Configuration Page CyberData InformaCast Enabled Speaker Operations Guide 931251H CyberData Corporation...
  • Page 63 Installing the InformaCast Enabled Speaker Device Configuration Figure 2-26. SSL Configuration Page Operations Guide 931251H CyberData Corporation...
  • Page 64 Client Certificate When doing mutual authentication this device will present a client certificate with these parameters. Client CA Right click and Save Link As... to get the Cyberdata CA used to sign this client certificate. Test SSL Connection Server The ssl test server address as a fully qualified domain name or in IPv4 dotted decimal notation.
  • Page 65 Table 2-16. SSL Configuration Parameters (continued) Web Page Item Description Removes this certificate from the list of trusted certificates. After clicking on this button, the Remove Server Certificate Window appears. See Section 2.3.10.2, "Remove Server Certificate Window". Operations Guide 931251H CyberData Corporation...
  • Page 66 Installing the InformaCast Enabled Speaker Device Configuration 2.3.10.1 Certificate Info Window The Certificate Info Window provides details of the certificate. This window appears after clicking on the Info button. See Figure 2-27. Figure 2-27. Certificate Info Window Operations Guide 931251H CyberData Corporation...
  • Page 67 The Remove Server Certificate Window will ask if the user wants to remove a certificate from the list of trusted certificates. This window appears after clicking on the Remove button. See Figure 2- Figure 2-28. Remove Server Certificate Window Operations Guide 931251H CyberData Corporation...

  • Page 68: Configure The Sensor Configuration Parameters

    Call an extension and play a pre-recorded audio file Note Calling a preset extension can be set up as a point-to-point call, but currently can't send delayed DTMF tones. 1. Click Sensor menu button to open the Sensor page (Figure 2-29). Operations Guide 931251H CyberData Corporation...
  • Page 69 Installing the InformaCast Enabled Speaker Device Configuration Figure 2-29. Sensor Page CyberData InformaCast Enabled Speaker The strobe settings will only appear if you are using the Strobe Kit. If you are not using the Strobe Kit, you will not see the strobe settings.
  • Page 70 OFF for 350ms during the duration of the event. Slow Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0 over the course of about 3.5 seconds during the duration of the event. Operations Guide 931251H CyberData Corporation...
  • Page 71 Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Note You must click on the Save button and then the Reboot button for the changes to take effect. Operations Guide 931251H CyberData Corporation...

  • Page 72: Configure The Audiofiles Parameters

    The Audiofiles page is used to add custom audio to the board. User uploaded audio will take precedence over the audio files shipped with the device. 1. Click on the Audiofiles menu button to open the Audiofiles page (Figure 2-30). Figure 2-30. Audiofiles Page CyberData InformaCast Enabled Speaker Operations Guide 931251H CyberData Corporation...
  • Page 73 Installing the InformaCast Enabled Speaker Device Configuration Figure 2-31. Audiofiles Page Operations Guide 931251H CyberData Corporation...
  • Page 74 Installing the InformaCast Enabled Speaker Device Configuration Figure 2-32. Audiofiles Page Operations Guide 931251H CyberData Corporation...
  • Page 75 '9' corresponds to the spoken word “nine.” Corresponds to the spoken word “dot.” (24 character limit) Audio Test Corresponds to the message “This is the CyberData IP speaker test message...” (24 character limit) Enter Code Corresponds to the message “Enter Code” (24 character limit).
  • Page 76 The Delete button will delete any user uploaded audio and restore the stock audio file. The Save button will download a new user audio file to the board once you've selected the file by using the Browse button. The Save button will delete any pre-existing user-uploaded audio files. Operations Guide 931251H CyberData Corporation...
  • Page 77 RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz You can use the free utility Audacity to convert audio files into this format. See Figure 2-33 through Figure 2-35. Figure 2-33. Audacity 1 Figure 2-34. Audacity 2 Operations Guide 931251H CyberData Corporation...
  • Page 78 Device Configuration When you export an audio file with Audacity, save the output as: • WAV (Microsoft) signed 16 bit PCM. Figure 2-35. WAV (Microsoft) signed 16 bit PCM WAV (Microsoft) signed 16 bit PCM Operations Guide 931251H CyberData Corporation...

  • Page 79: Configure The Events Parameters

    The Events page specifies a remote server that can be used to receive HTTP POST events when actions take place on the board. 1. Click on the Events menu button to open the Events page (Figure 2-36). Figure 2-36. Event Configuration Page CyberData InformaCast Enabled Speaker Operations Guide 931251H CyberData Corporation...
  • Page 80 HTTP POST command. It can be a script used to parse and process the HTTP POST events. Enter up to 127 characters. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Operations Guide 931251H CyberData Corporation...
  • Page 81 Here are example packets for every event: POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?>...
  • Page 82 Installing the InformaCast Enabled Speaker Device Configuration POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 201 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'> <event>CALL_ACTIVE</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?>...
  • Page 83 Installing the InformaCast Enabled Speaker Device Configuration </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'> <event>RELAY_ACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?>...

  • Page 84: Configure The Autoprovisioning Parameters

    By default, the device will try to set up its configuration with autoprovisioning. 1. Click the Autoprov menu button to open the Autoprovisioning page. See Figure 2-37. Figure 2-37. Autoprovisioning Page CyberData InformaCast Enabled Speaker Operations Guide 931251H CyberData Corporation...
  • Page 85 First click on the Toggle Help button, and you will see a question mark ( appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931251H CyberData Corporation...
  • Page 86 Autoprovisioning files can contain the whole configuration or a subset of this file. The first autoprovisioning file can also contain links to other autoprovisioning files. The <MiscSettings> section contains some examples of additional autoprovisioning files: <MiscSettings> <DeviceName>CyberData Device</DeviceName> <!-- <AutoprovFile>common.xml</AutoprovFile>--> <!-- <AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>-->...
  • Page 87 When one of these options is set, the Files after Boot device will download its autoprovisioning files again, and if it finds any differences from the files it downloaded on boot, it will force a reboot and reconfigure. Operations Guide 931251H CyberData Corporation...
  • Page 88 The autoprovisioning filename is set to “cyberdata/” On boot, the device will try to download: https://www.example.com/cyberdata/0020f7123456.xml ...and if this fails: https://www.example.com/cyberdata/000000cd.xml Audio files and firmware files will also add “cyberdata” to the URL before downloading. Operations Guide 931251H CyberData Corporation...
  • Page 89 In this way, a generic autoprovisioning file can specify unique firmware for a range of products. The list of valid product strings: <ProductString>CallButton31</ProductString> <ProductString>EmergencyIntercom31</ProductString> <ProductString>EmergencyIntercom31SW</ProductString> <ProductString>IndoorIntercom31</ProductString> <ProductString>IndoorIntercom31SW</ProductString> <ProductString>IndoorKeypad31</ProductString> <ProductString>IndoorKeypad31SW</ProductString> <ProductString>OfficeRinger31</ProductString> <ProductString>OfficeRinger31SW</ProductString> <ProductString>OutdoorIntercom31</ProductString> <ProductString>OutdoorIntercom31SW</ProductString> <ProductString>OutdoorKeypad31</ProductString> <ProductString>OutdoorKeypad31SW</ProductString> <ProductString>Strobe31</ProductString> <ProductString>Strobe31SW</ProductString> Operations Guide 931251H CyberData Corporation...
  • Page 90 000000cd.xml. This file exists, and Device1 parses the three elements. 1. Device1 changes its device name to CyberData Autoprovisioned. 2. Device1 finds an AutoprovFile element containing the filename sip_common.xml. The device downloads sip_common.xml from “https://autoprovtest.server.net,”...
  • Page 91 TFTP server at 10.0.1.3. and imports these settings. The device name is set to CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060. Device2 does the same except it downloads 0020f7020002.xml on boot and imports these values instead.
  • Page 92 You can force a change to the audio files on the board by clicking Restore Default on the Audio Configuration page or by changing the autoprovisioning file with “default” set as the file name. Operations Guide 931251H CyberData Corporation...
  • Page 93 "http://test.cyberdata.net"; # OPTION 66 option option-150 10.0.0.252; # OPTION 150 # These two lines are needed for option 43 vendor-option-space VendorInfo; # OPTION 43 option VendorInfo.text "http://test.cyberdata.net"; # OPTION 43 range 10.10.0.1 10.10.2.1; } Operations Guide 931251H CyberData Corporation...
  • Page 94 4. At this point, you can open and edit the autoprovisioning template to change the configuration settings in the template for the unit. 5. You can then upload the autoprovisioning file to a TFTP or HTTP server where the file can be loaded onto other devices. Operations Guide 931251H CyberData Corporation...

  • Page 95: Downloading The Firmware

    2. Unzip the firmware version file. This file may contain the following: • Firmware file • Release notes 3. Log in to the home page as instructed in Section 2.3.4, "Log in to the Configuration Home Page". Operations Guide 931251H CyberData Corporation...
  • Page 96 4. Click on the Firmware menu button to open the Firmware page. See Figure 2-39. Caution Equipment Hazard: CyberData strongly recommends that you first reboot the device before attempting to upgrade the firmware of the device. See Section 2.4.2, "Reboot the Device".

  • Page 97: Reboot The Device

    Section 2.3.4, "Log in to the Configuration Home Page". 1. Click on the Reboot button on the Home page (Figure 2-40). A normal restart will occur. Figure 2-40. Home Page CyberData InformaCast Enabled Speaker 396000001 v12.1.0 Reboot Operations Guide 931251H...

  • Page 98: Command Interface Post Commands

    --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "play_3=yes" Play the "4" audio file wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "play_4=yes" Operations Guide 931251H CyberData Corporation...
  • Page 99 --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "play_doorajar=yes" Play the "Night Ring" audio file wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "play_nightring=yes" Operations Guide 931251H CyberData Corporation...
  • Page 100 --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "delete_restoringdefault=yes" Delete the "Ringback tone" audio file wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "delete_ringback=yes" Operations Guide 931251H CyberData Corporation...
  • Page 101 Trigger the Intrusion Sensor Test (Sensor Config page) wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/sensor.cgi" --post-data "intrusiontest=yes" a.Type and enter all of each http POST command on one line. Operations Guide 931251H CyberData Corporation...

  • Page 102: Appendix A Mounting The Speaker

    Illustration #8 Nylon Thumb Nuts #8 Fender Washers 8-32 x 1 1/4" Mounting Screws Table A-2. Drywall Mounting Components (Part of the Accessory Kit) Quantity Part Name Illustration Plastic Ribbed Anchors #8 Sheet Metal Screws Operations Guide 931251H CyberData Corporation...
  • Page 103 #8 Fender Washer (3x) *Ceiling Tile or Dry Wall *Optional Reinforcement Mount P/N: 010991A (Sold Seperately) Template Speaker VoIP V3 Speaker Assembly Assembly Dry Wall Mounting Kit #6 Screw (3x) Ceiling Mounting Screw #8-32x1 1/4" (3X) Operations Guide 931251H CyberData Corporation...

  • Page 104: Dimensions

    For drop ceiling mounting, use the three 8-32 x 1 1/4" MOUNTING SCREWS, #8 NYLON THUMB NUTS, and #8 FENDER WASHERS to secure the speaker. Note For weak ceiling tile, CyberData offers a reinforcing mount (CyberData part number 010991A). •...

  • Page 105: Appendix B Setting Up A Tftp Server

    1. Install and start the software. 2. Select File Configure Security tab Transmit Only. 3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. Operations Guide 931251H CyberData Corporation...

  • Page 106: Appendix C Troubleshooting/Technical Support

    To see a list of frequently asked questions for your product, click on the FAQs tab at the following webpage: https://www.cyberdata.net/products/011396 C.2 Documentation The documentation for this product is released in an English language version only. To download PDF copies of CyberData product documentation, click on the Downloads tab at the following webpage: https://www.cyberdata.net/products/011396 Operations Guide 931251H...

  • Page 107: Contact Information

    Support form at the following website: http://support.cyberdata.net/ The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most importantly, the Support Form tells us which PBX system and software version that you are using, the make and model of the switch, and other important information. This information is essential for troubleshooting.
  • Page 108 30 confirming IP address 17 activate relay (door sensor) 63 contact information 100 address, configuration login 24 contact information for CyberData 100 adjusting volume 19 current network settings 40 analog speaker CyberData contact information 100 analog volume control needs to be disabled 14 announcing a speaker’s IP address 17...
  • Page 109 1 illustration of speaker mounting process 95 import settings 26 import/export settings 26 pages (lengthy) 54 InformaCast needs to be 4.0 or higher 24 parts installation, typical speaker system 2 #8 fender washers 95 Operations Guide 931251H CyberData Corporation...
  • Page 110 RTFM button 17 changing for web configuration access 28 default for web configuration access 24 restoring the default 8 sales 100 sensor sensor normally closed 63 verifying sensor timeout 63 network link and activity 16 Operations Guide 931251H CyberData Corporation...
  • Page 111 38 SIP volume 38 volume boost 38 volume control dial disable 38 volume, adjusting 19 warranty policy at CyberData 100 web access password 8 web access username 8 web configuration log in address 24 web page navigation 21...
