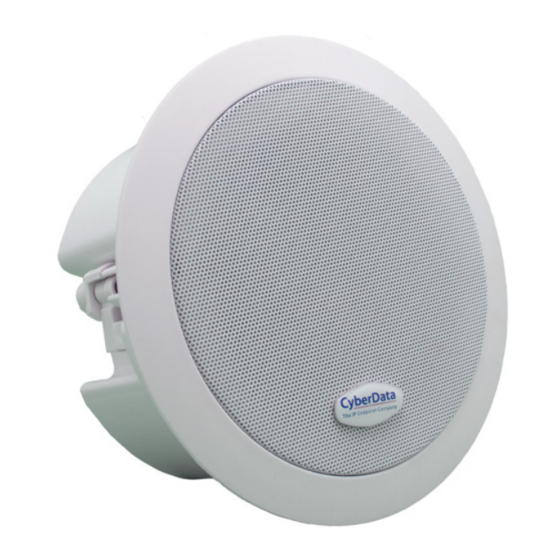

CyberData 011511 Operation Manual

Voip sip/multicast speaker
Hide thumbs Also See for 011511:

Advertisement

Quick Links

Download this manual

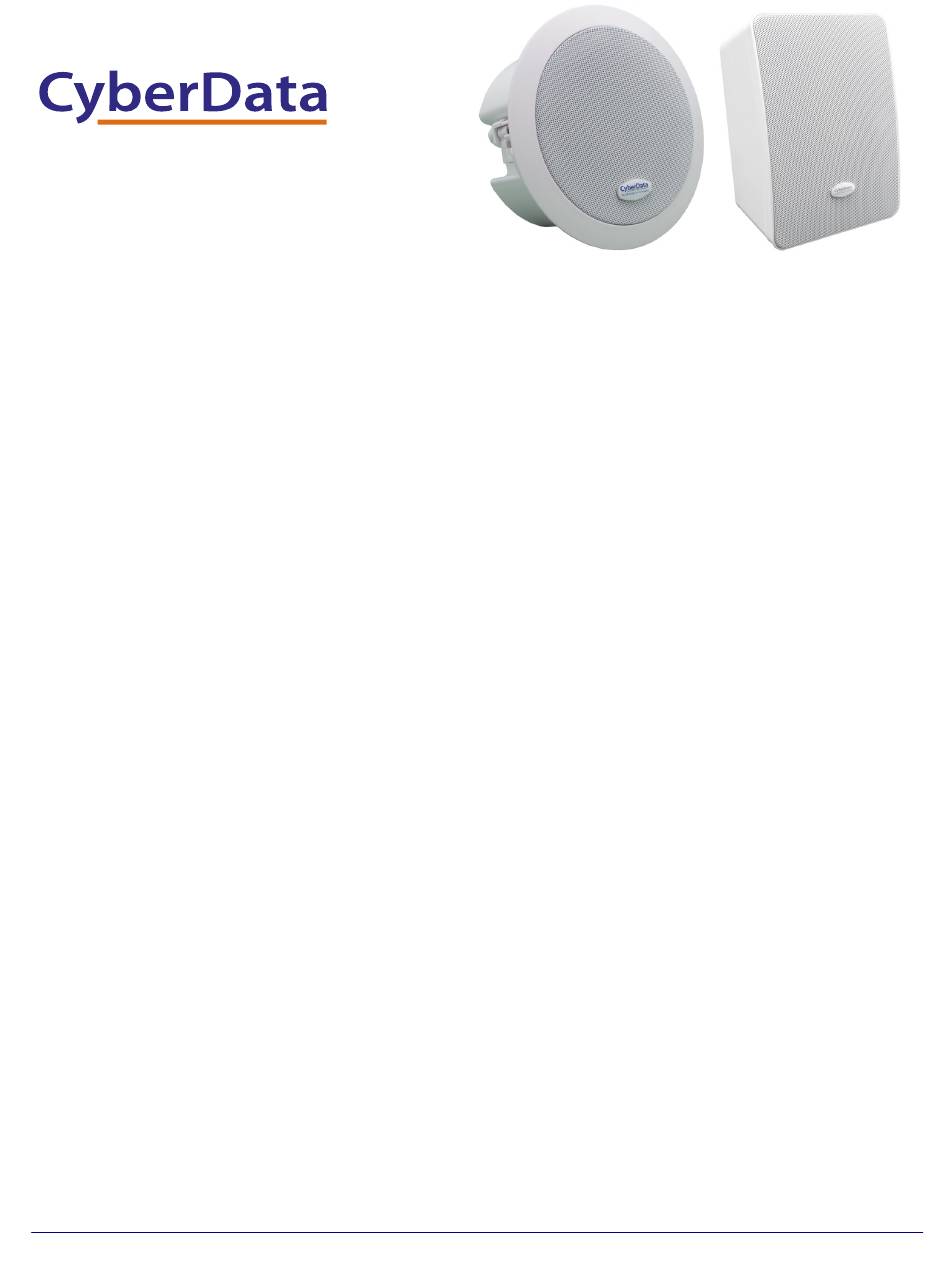

The IP Endpoint Company
VoIP SIP/Multicast Speaker
Operations Guide
Part #011511, 011512
Document Part #932057A
for Firmware Version 22.0.3
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601

Advertisement

loading
Need help?

Need help?

Do you have a question about the 011511 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberData 011511

Summary of Contents for CyberData 011511

  • Page 1 The IP Endpoint Company  VoIP SIP/Multicast Speaker Operations Guide Part #011511, 011512 Document Part #932057A for Firmware Version 22.0.3 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
  • Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
  • Page 3 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. Operations Guide 932057A CyberData Corporation...
  • Page 4 To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT Operations Guide 932057A CyberData Corporation...
  • Page 5 Power over Ethernet (as per IEEE 802.3af standard) RTFM Reset Test Function Management Session Initiated Protocol SRTP Secure Real Time Protocol u-law A companding algorithm, primarily used in the digital telecommunication Unified Communications VoIP Voice over Internet Protocol Operations Guide 932057A CyberData Corporation...
  • Page 6 Contents Chapter 1 Ceiling Speaker Device Setup (Part #011511) 1.1 Confirm that the Speaker is Operational and Linked to the Network ........1 1.2 Link/Activity LED ........................1 1.2.1 100 Mb LED ........................1 Chapter 2 Wall Mount Speaker Device Setup (Part #011512) 2.1 Confirm that the Speaker is Operational and Linked to the Network ........2...
  • Page 7 1 Ceiling Speaker Device Setup (Part #011511) 1.1 Confirm that the Speaker is Operational and Linked to the Network After connecting the speaker to the 802.3af compliant Ethernet hub, the LEDs on the rear of the speaker housing confirm that the speaker is operational and linked to the network.
  • Page 8 IP address (by default 192.168.1.23). This process will take approximately 80 seconds. 2.2.1 100 Mb LED • The yellow 100 Mb LED is illuminated when the network 100 Mb link to the speaker is established. Operations Guide 932057A CyberData Corporation...
  • Page 9 Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.   CyberData’s VoIP Discovery Utility program is available at the following website address: https://www.cyberdata.net/pages/discovery...
  • Page 10 3-3). Use a paper clip to access the button through the hole. Briefly pressing the RTFM button prompts the device to announce its IP address. Figure 3-2. RTFM Button RTFM button Figure 3-3. RTFM Button RTFM button Operations Guide 932057A CyberData Corporation...
  • Page 11 Table 3-1. Factory Default Settings Parameter Factory Default Setting IP Addressing DHCP IP Address 192.168.1.23 Web Access Username admin Web Access Password admin Subnet Mask 255.255.255.0 Default Gateway 192.168.1.1 a. Default if there is not a DHCP server present. Operations Guide 932057A CyberData Corporation...
  • Page 12 Configure the Device Home Page Figure 3-4. Home Page If you are using an InformaCast enabled device, you will see the following: Figure 3-5. InformaCast enabled Device Operations Guide 932057A CyberData Corporation...
  • Page 13 Configure the Device Device 3.2 Device Figure 3-6. Device Configuration Page If you are using an InformaCast enabled device, you will see the following: Figure 3-7. InformaCast enabled Device Operations Guide 932057A CyberData Corporation...
  • Page 14 Configure the Device Network 3.3 Network Figure 3-8. Network Page Operations Guide 932057A CyberData Corporation...
  • Page 15 For specific server configurations, go to the following website address: https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers Figure 3-9. SIP Page 3.4.1 Dial Out Extension Strings and DTMF Tones (using rfc2833) Outgoing calls support delayed DTMF (rfc2833) with the first comma pausing 2 seconds and subsequent commas pausing 1 second. Operations Guide 932057A CyberData Corporation...
  • Page 16 SIP (Session Initiation Protocol) 3.4.2 Point-to-Point Configuration Dialing point-to-point allows the device to call and a single endpoint. All CyberData endpoints and many phones can use this option. To do this, enable SIP Operation, do not enable SIP Registration, and use the endpoint's IP address as the Dial Out extension. Delayed DTMF is supported.
  • Page 17 Configure the Device 3.5 SSL Figure 3-11. SSL Page Figure 3-12. SSL Page Operations Guide 932057A CyberData Corporation...
  • Page 18 The Multicast Configuration page allows the device to join up to ten paging zones for receiving RTP audio streams. A paging zone can consist of one or many CyberData multicast group-enabled products. There is no limit to how many speakers can participate in a given paging zone. Each multicast group is defined by a multicast address and port number.
  • Page 19 Configure the Device Audiofiles 3.7 Audiofiles The Audiofiles page is used to add custom audio to the board. User uploaded audio will take precedence over the audio files shipped with the Intercom. Figure 3-14. Audiofiles Page Operations Guide 932057A CyberData Corporation...
  • Page 20 The Events page specifies a remote server that can be used to receive HTTP POST events when actions take place on the board. Figure 3-15. Events Page If you are using an InformaCast enabled device, you will see the following: Figure 3-16. InformaCast enabled Device Operations Guide 932057A CyberData Corporation...
  • Page 21 Here are example packets for every event: POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded <?xml version="1.0"...
  • Page 22 Configure the Device Events POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>CALL_TERMINATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>...
  • Page 23 Configure the Device Events POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RELAY_DEACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>...
  • Page 24 Configure the Device Terminus 3.9 Terminus Figure 3-17. Terminus Page Operations Guide 932057A CyberData Corporation...
  • Page 25 Autoprov autoupdate, Autoprov at time, and Autoprov when idle options are available with either DHCP or a named server. The template is an xml file with all options set to default values. Figure 3-18. Autoprovisioning Page Operations Guide 932057A CyberData Corporation...
  • Page 26 To upgrade the firmware of your device: 1. Download the latest firmware from the following CyberData web site, and locate your device: https://www.cyberdata.net/collections/sip 2. Unzip the firmware version file. This file may contain the following: •...
  • Page 27 Configure the Device Admin 3.12 Admin Figure 3-20. Admin Page The administrator uses the Users List to create new accounts, assigning user names and passwords, and granting access to specific web pages. Operations Guide 932057A CyberData Corporation...
  • Page 28 Play the "6" audio file wget --user admin --password admin --auth-no-challenge --no- check-certificate "https://10.10.1.138/audiofiles/" --quiet -O /dev/null --post-data "6=Play" Play the "7" audio file wget --user admin --password admin --auth-no-challenge --no- check-certificate "https://10.10.1.138/audiofiles/" --quiet -O /dev/null --post-data "7=Play" Operations Guide 932057A CyberData Corporation...
  • Page 29 "https://10.10.1.138/audiofiles/" --quiet -O /dev/null --post-data "restoringdefault=Play" Swap boot partitions wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null --no-check-certificate "https://10.10.1.154/command" -- post-data "request=swap_boot_partition" a.Type and enter all of each http POST command on one line. Operations Guide 932057A CyberData Corporation...
  • Page 30 Support form at the following website: https://support.cyberdata.net/ The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most importantly, the Support Form tells us which PBX system and software version that you are using, the make and model of the switch, and other important information. This information is essential for troubleshooting.
  • Page 31 11 network configuration 8, 18 network 8, 18 network link activity, verifying 1, 2 SIP 9 configuration home page 3 contact information for CyberData 24 password login 3 point-to-point configuration 10 default POST command 22 web login username and password 3...
  • Page 32 1, 2 power on to speaker 1, 2 warranty policy at CyberData 24 web configuration log in address 3 wget, free unix utility 22 Operations Guide 932057A CyberData Corporation...
