The IP Endpoint Company

1.0 Out-of-Box and Prior to Final Installation

1.1. Verify that you have received all of the parts listed on the Installation Quick

Reference placemat.

1.2. Download the current manual, otherwise known as an Operation Guide,

which is available in the Downloads tab at the following webpage:

http://www.cyberdata.net/voip/011399/

Note You can also navigate to the Downloads tab by going to

www.CyberData.net

the following figures:

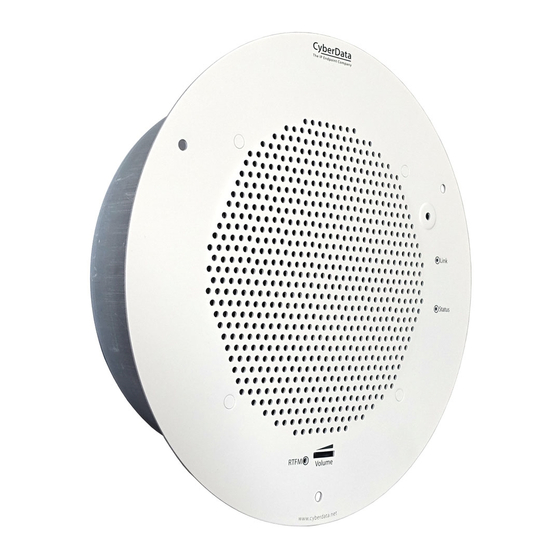

Singlewire InformaCast Talk-Back Speaker

Part Numbers: 011399 (RAL 9002, Gray White)

011400 (RAL 9003, Signal White)

Quick Start Guide

VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299

Singlewire InformaCast Talk-Back Speaker

Quick Start Guide

and following the steps that are indicated by

931257A

Table of Contents

Do you have a question about the 011399 and is the answer not in the manual?

Page 1 Singlewire InformaCast Talk-Back Speaker Part Numbers: 011399 (RAL 9002, Gray White) 011400 (RAL 9003, Signal White) Quick Start Guide 931257A VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299...
Page 2 SIP enabled, the Administrator may prefer a final power setting adjustment to Class 0. 3.0 Power Test 3.1. Plug in the CyberData device and monitor the LED activity on the front of the device. See the following figure: Network...
Page 3 3.2. The GREEN power/status LED and the YELLOW network LED come on immediately. The YELLOW network LED will blink to indicate network traffic. After about 27 seconds, the GREEN power/status LED will blink twice to indicate that the board is fully booted. If there is no DHCP server available on the network, it will try 12 times with a three second delay between tries and eventually fall back to the programmed static IP address (by default 10.10.10.10).
Page 4 6.0 Contacting CyberData VoIP Technical Support You are welcome to call CyberData VoIP Technical Support at 831-373-2601 x333. Business hours are 7:00 AM - 5:00 PM Pacific Time, Monday through Friday. We encourage you to access our Technical Support help desk at the following address: http://support.cyberdata.net/...
