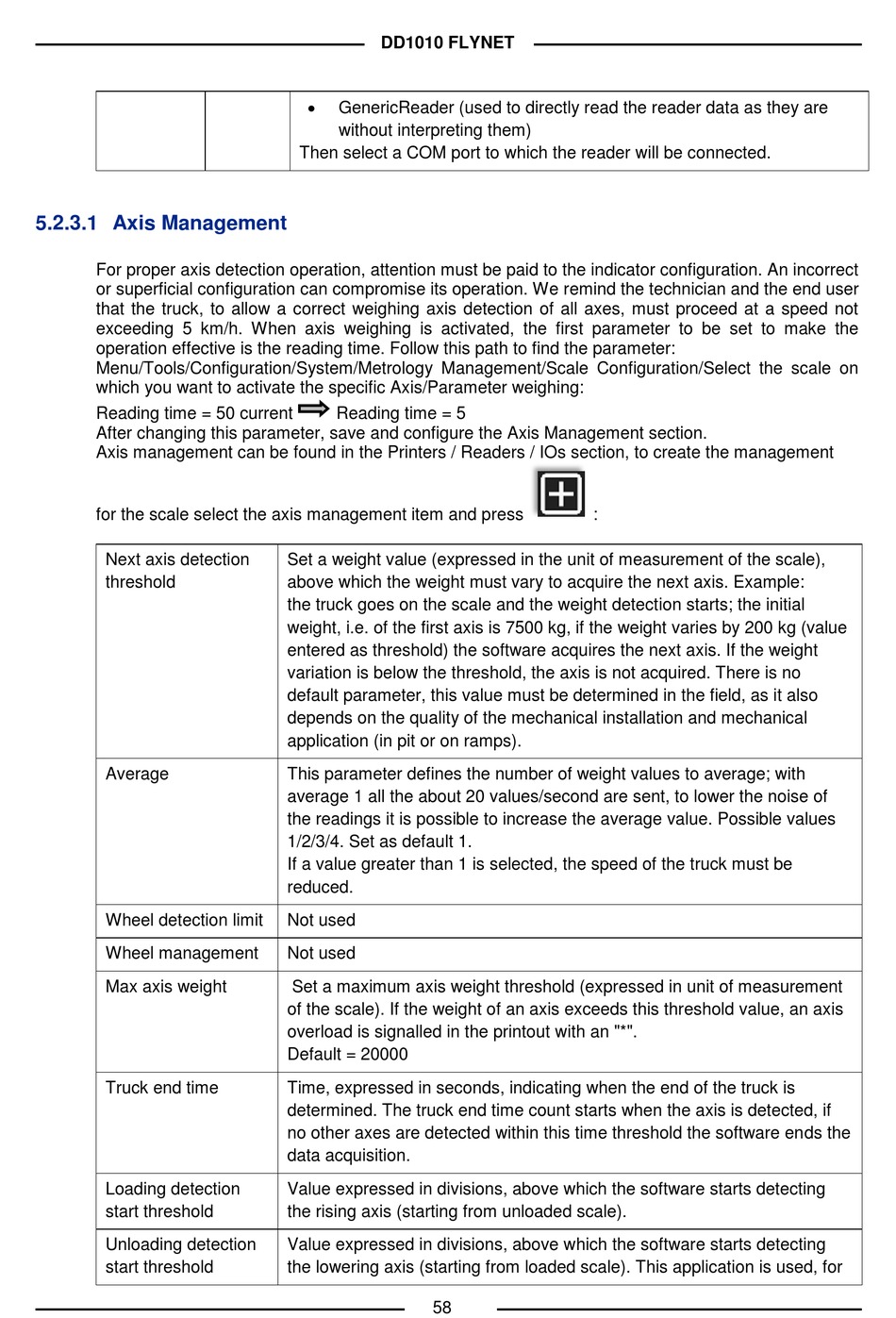

5.2.3.1 Axis Management
For proper axis detection operation, attention must be paid to the indicator configuration. An incorrect
or superficial configuration can compromise its operation. We remind the technician and the end user
that the truck, to allow a correct weighing axis detection of all axes, must proceed at a speed not
exceeding 5 km/h. When axis weighing is activated, the first parameter to be set to make the
operation effective is the reading time. Follow this path to find the parameter:
Menu/Tools/Configuration/System/Metrology Management/Scale Configuration/Select the scale on
which you want to activate the specific Axis/Parameter weighing:
Reading time = 50 current
After changing this parameter, save and configure the Axis Management section.
Axis management can be found in the Printers / Readers / IOs section, to create the management
for the scale select the axis management item and press
Next axis detection
threshold
Average
Wheel detection limit
Wheel management
Max axis weight
Truck end time
Loading detection
start threshold
Unloading detection
start threshold
DD1010 FLYNET

GenericReader (used to directly read the reader data as they are
without interpreting them)
Then select a COM port to which the reader will be connected.
Reading time = 5
Set a weight value (expressed in the unit of measurement of the scale),
above which the weight must vary to acquire the next axis. Example:
the truck goes on the scale and the weight detection starts; the initial
weight, i.e. of the first axis is 7500 kg, if the weight varies by 200 kg (value
entered as threshold) the software acquires the next axis. If the weight
variation is below the threshold, the axis is not acquired. There is no
default parameter, this value must be determined in the field, as it also
depends on the quality of the mechanical installation and mechanical
application (in pit or on ramps).
This parameter defines the number of weight values to average; with
average 1 all the about 20 values/second are sent, to lower the noise of
the readings it is possible to increase the average value. Possible values
1/2/3/4. Set as default 1.
If a value greater than 1 is selected, the speed of the truck must be
reduced.
Not used
Not used
Set a maximum axis weight threshold (expressed in unit of measurement
of the scale). If the weight of an axis exceeds this threshold value, an axis
overload is signalled in the printout with an "*".
Default = 20000
Time, expressed in seconds, indicating when the end of the truck is
determined. The truck end time count starts when the axis is detected, if
no other axes are detected within this time threshold the software ends the
data acquisition.
Value expressed in divisions, above which the software starts detecting
the rising axis (starting from unloaded scale).
Value expressed in divisions, above which the software starts detecting
the lowering axis (starting from loaded scale). This application is used, for
