6

OPTIONS

The DD1010 FLYNET weighing indicator provides for the installation of optional cards, peripherals
and accessory software.
Some options also include the firmware update. Contact the After-Sales Service or the Sales Service
Network.
The options currently provided (at the date of writing of this manual) are:

Serial expansion card RS232 - RS422 - RS485

0-10V/4-20mA analogue output card, analogue input and pulse counter (sensor interface)

Sound card

Printers

WI-FI modules (external)

HDMI optional card

Wall-mounting brackets

Second scale module

Additional displays

8 input/12 output card
6.1

Installing Optional Cards

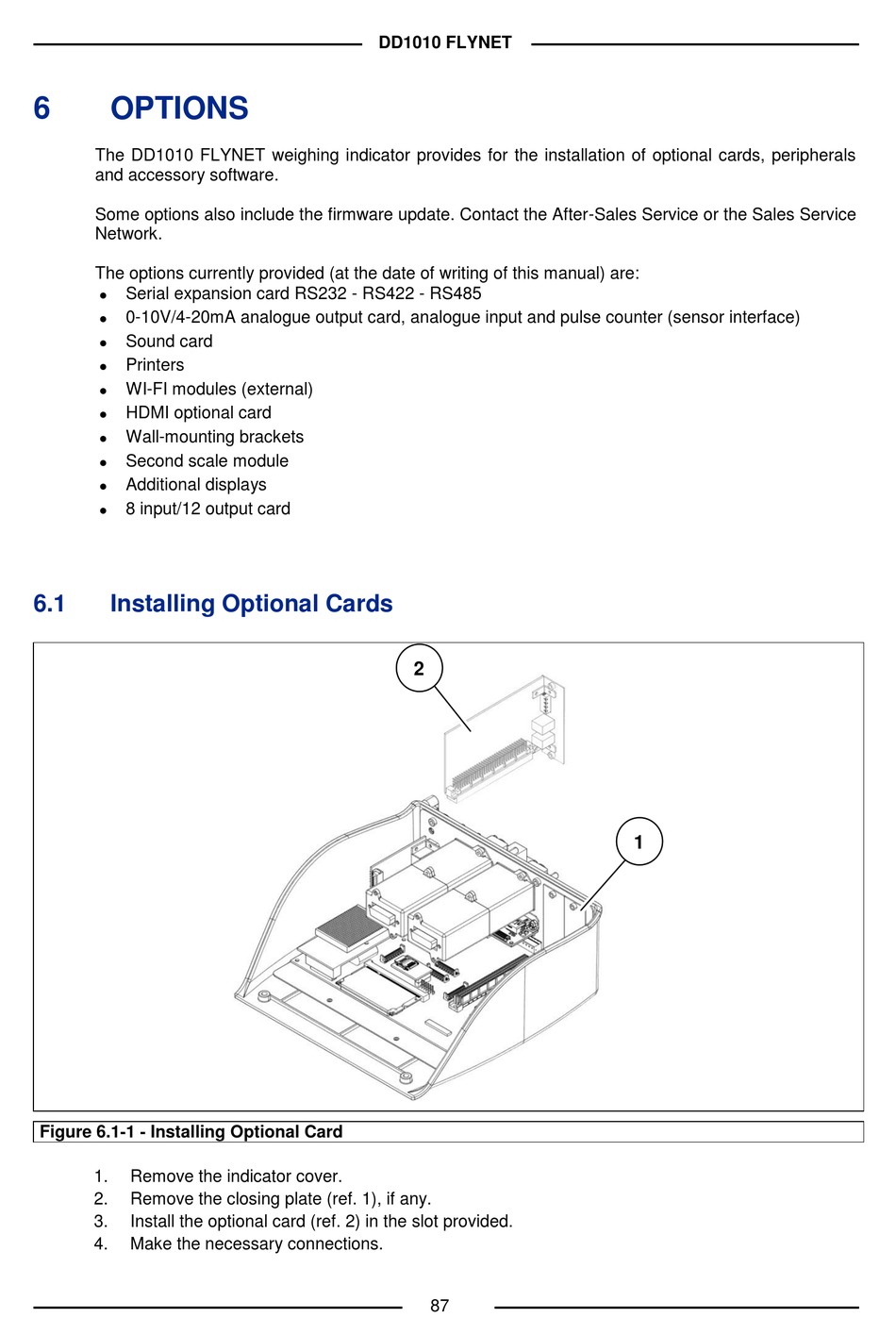

Figure 6.1-1 - Installing Optional Card
1. Remove the indicator cover.
2. Remove the closing plate (ref. 1), if any.
3. Install the optional card (ref. 2) in the slot provided.
4. Make the necessary connections.
