10.3.2 Stainless steel version

4
3
6
3
4

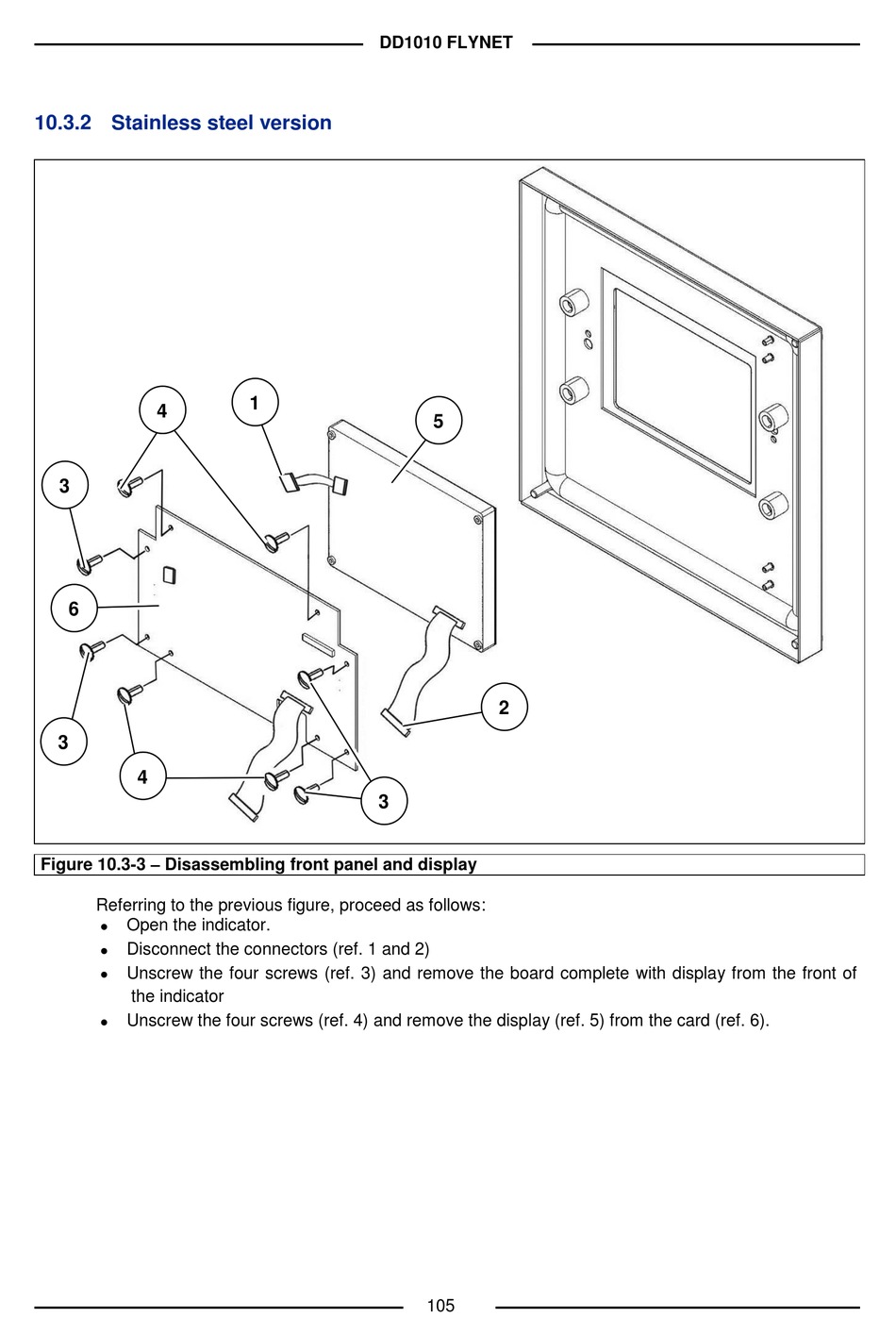

Figure 10.3-3 – Disassembling front panel and display
Referring to the previous figure, proceed as follows:

Open the indicator.

Disconnect the connectors (ref. 1 and 2)

Unscrew the four screws (ref. 3) and remove the board complete with display from the front of
the indicator

Unscrew the four screws (ref. 4) and remove the display (ref. 5) from the card (ref. 6).
DD1010 FLYNET
1
3
5
2
105
