10.10.2 Stainless steel version with connectors

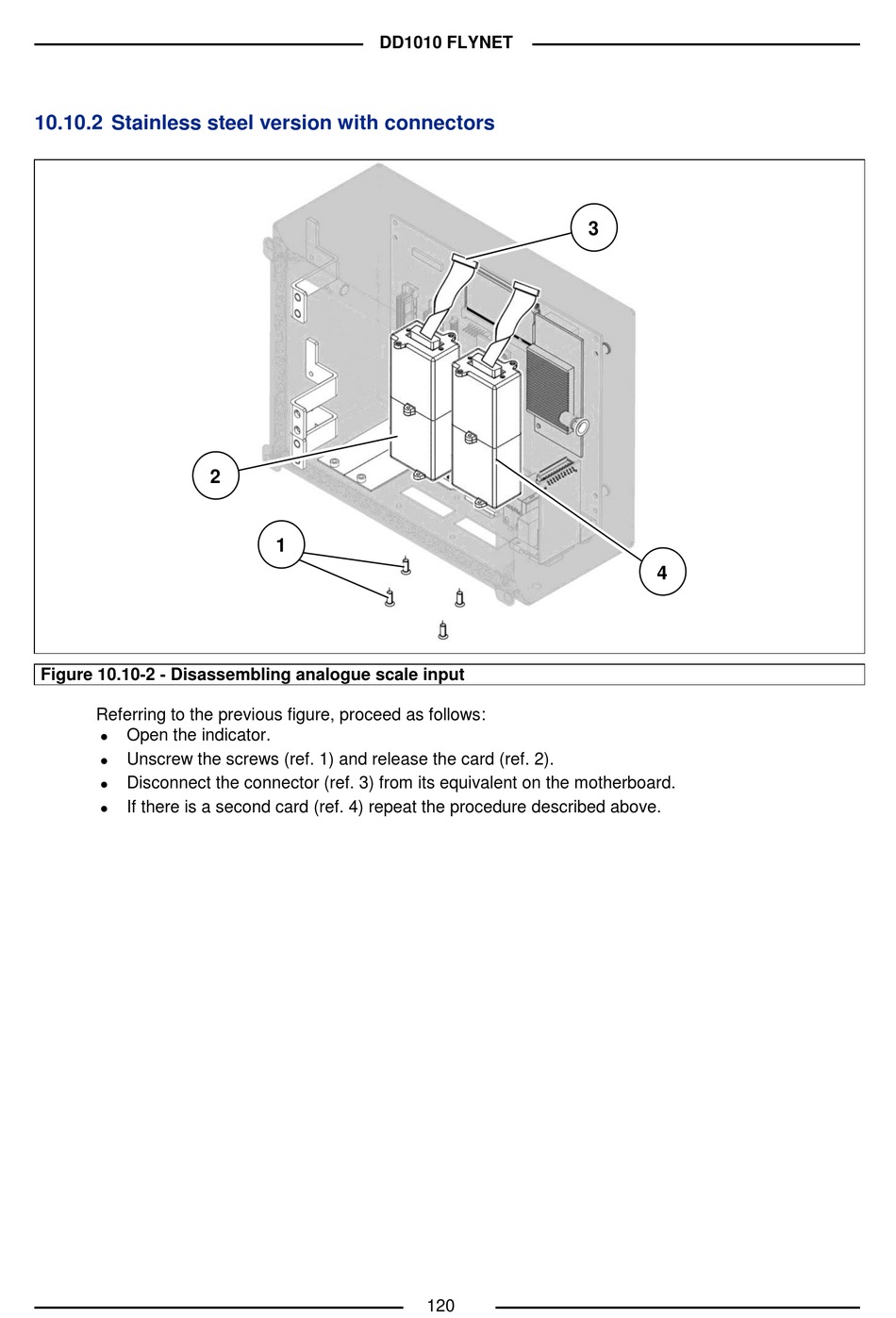

Figure 10.10-2 - Disassembling analogue scale input
Referring to the previous figure, proceed as follows:

Open the indicator.

Unscrew the screws (ref. 1) and release the card (ref. 2).

Disconnect the connector (ref. 3) from its equivalent on the motherboard.

If there is a second card (ref. 4) repeat the procedure described above.
