DISASSEMBLING COMPONENTS

DANGER
All adjustment, installation, assembly and/or disassembly and/or scheduled or unscheduled
maintenance operations must be carried out with equipment isolated from power sources in order
to ensure the appropriate level of safety.
It is mandatory to use the Electrostatic Discharge Sensitive (EDS) cuff before performing any
operation inside the indicator to avoid damaging the circuit boards or parts of the indicator
10.1

Disassembling support (only for stainless steel version)

3

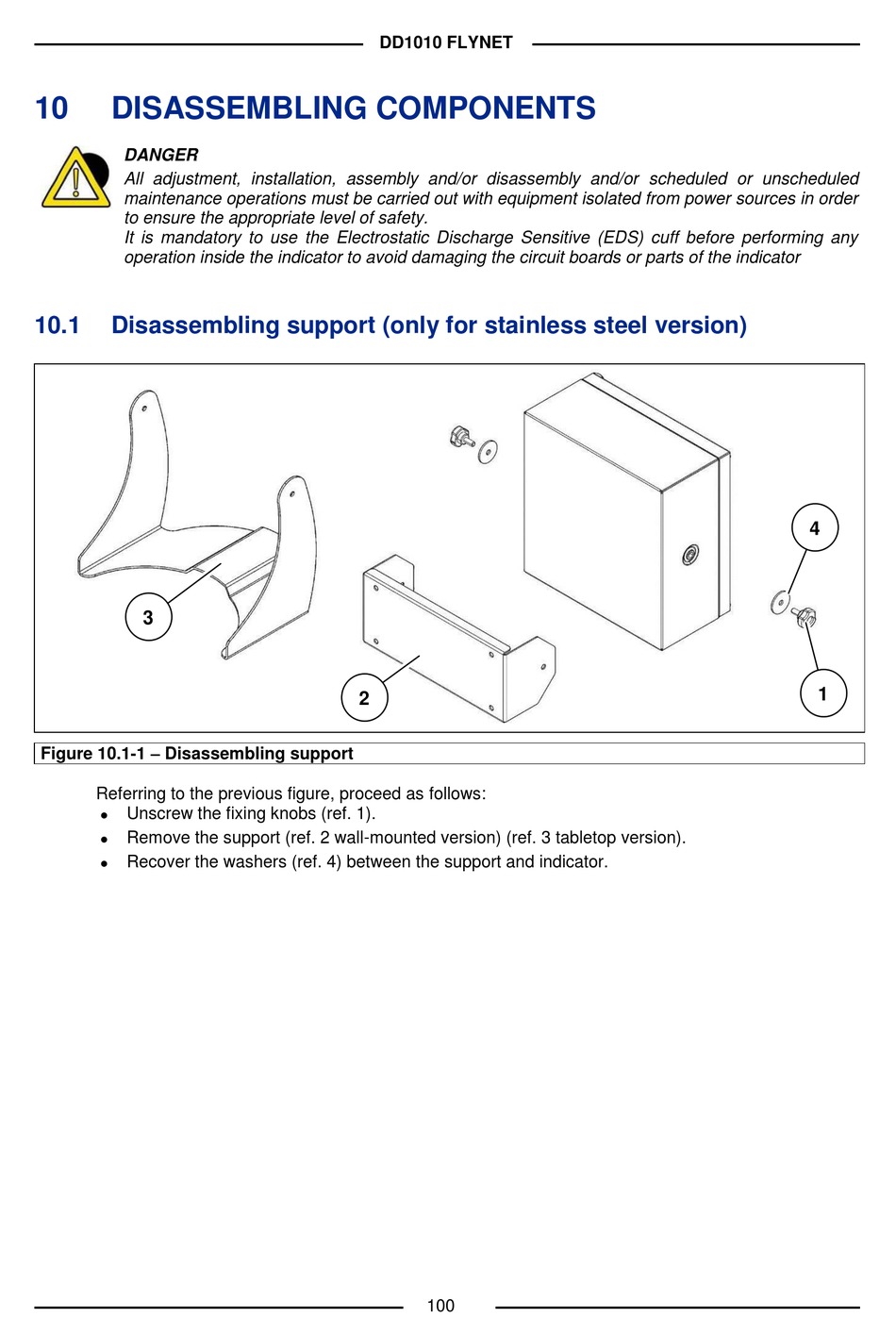

Figure 10.1-1 – Disassembling support
Referring to the previous figure, proceed as follows:

Unscrew the fixing knobs (ref. 1).

Remove the support (ref. 2 wall-mounted version) (ref. 3 tabletop version).

Recover the washers (ref. 4) between the support and indicator.
