10.9.3 Stainless steel version with cable glands

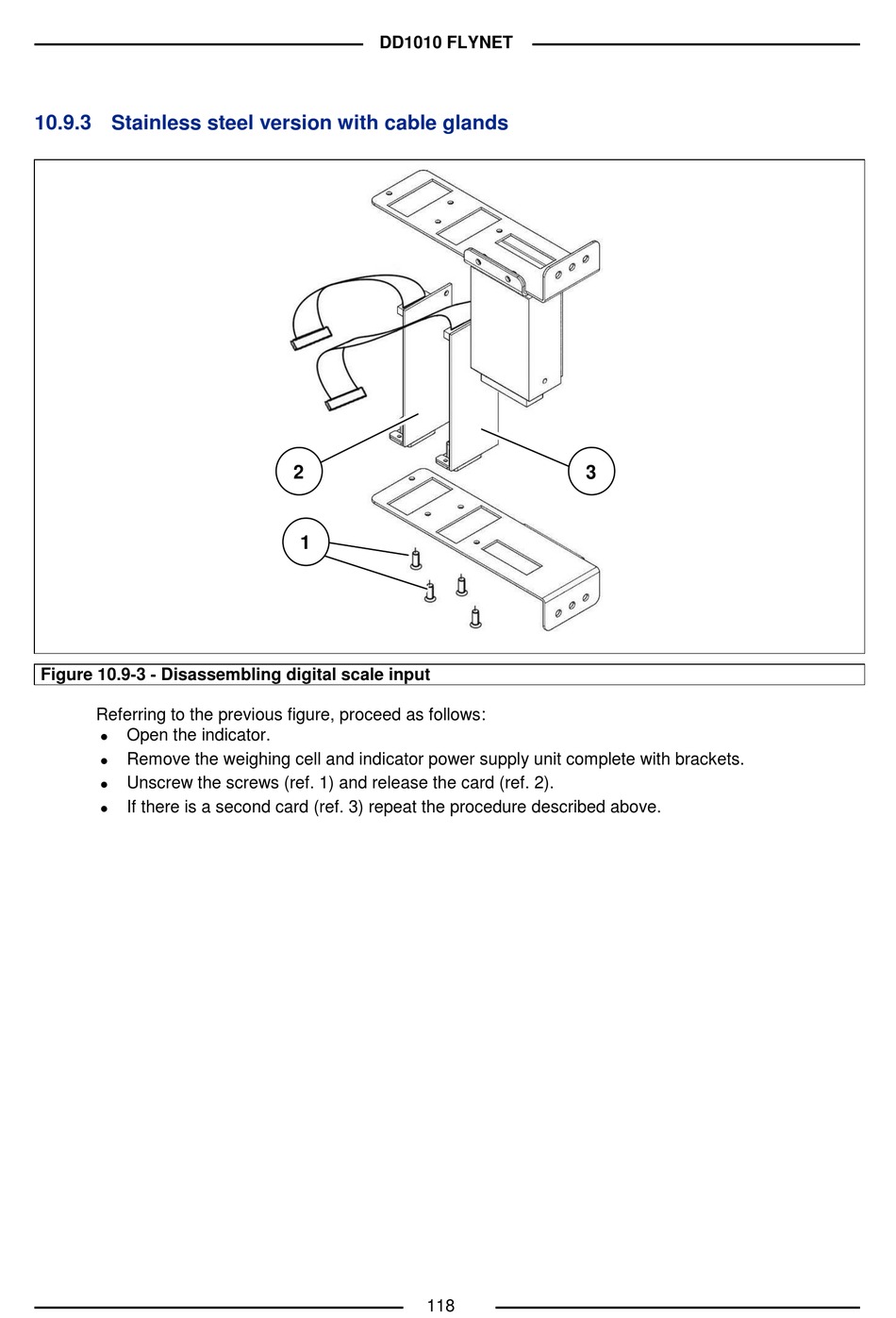

Figure 10.9-3 - Disassembling digital scale input
Referring to the previous figure, proceed as follows:
Open the indicator.
Remove the weighing cell and indicator power supply unit complete with brackets.
Unscrew the screws (ref. 1) and release the card (ref. 2).
If there is a second card (ref. 3) repeat the procedure described above.
DD1010 FLYNET
2
1
118
3
