D70
1.
Unpacking and Installation
A
B
B
C
D
A
B
B
C
D
A
D
C
B
*
*
85-265 Vac
50/60 Hz
ON/OFF
*
Not included
**
Consult the user manual for instructions about how to connect the 12V external battery
2.
Remove the terminal
from the pack along
with the CD contain-
ing the instructions.
Connect:
A. 12V** electric
power supply
B. any peripheral
equipment used
(e.g.: printer)
C. weighing plat-
form
D. D70A - Internal
batteries
D70B - Mains
power socket
Press
to power
the terminal.

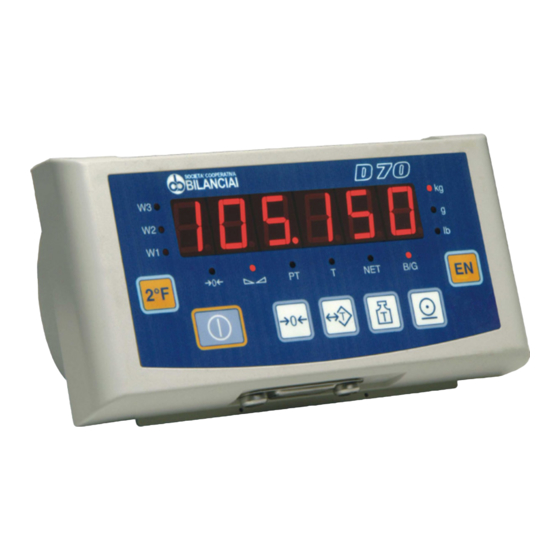

Display and keyboard
Stable weight
Center zero
Tare
Tare entered via keyboard
Gross weight
Net weight
Indication of the weighing
range for multiextension
instruments (ME)
Unit of measurement of the
weight displayed
Weight reset
Tare entry and cancellation
Tare display
Printing and/or transmission
start
Double function selection
Enter or confirm
ON/OFF
