10.10 Disassembling analogue scale input
10.10.1 Plastic version

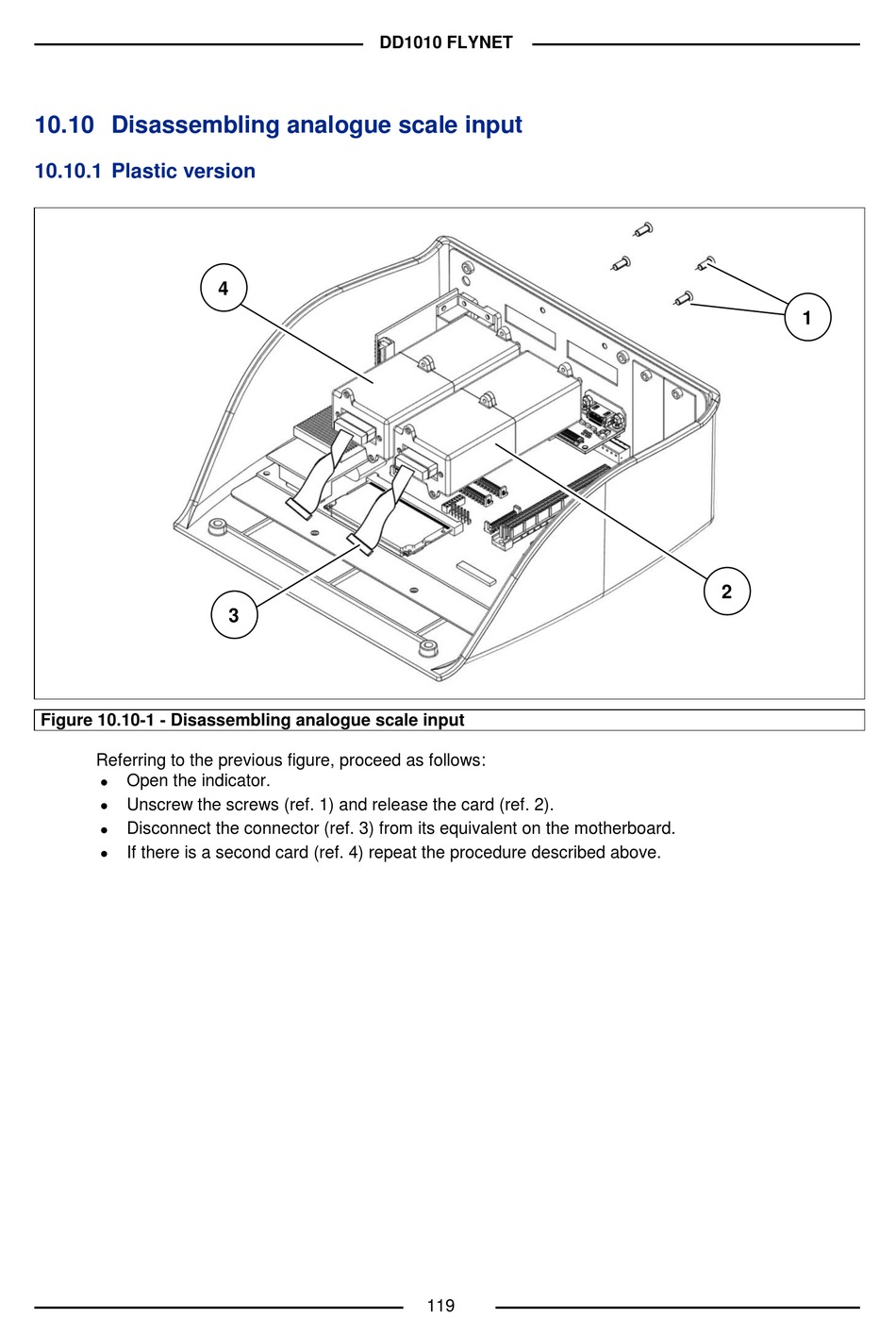

Figure 10.10-1 - Disassembling analogue scale input
Referring to the previous figure, proceed as follows:
Open the indicator.
Unscrew the screws (ref. 1) and release the card (ref. 2).
Disconnect the connector (ref. 3) from its equivalent on the motherboard.
If there is a second card (ref. 4) repeat the procedure described above.
DD1010 FLYNET
4
3
119
1
2
