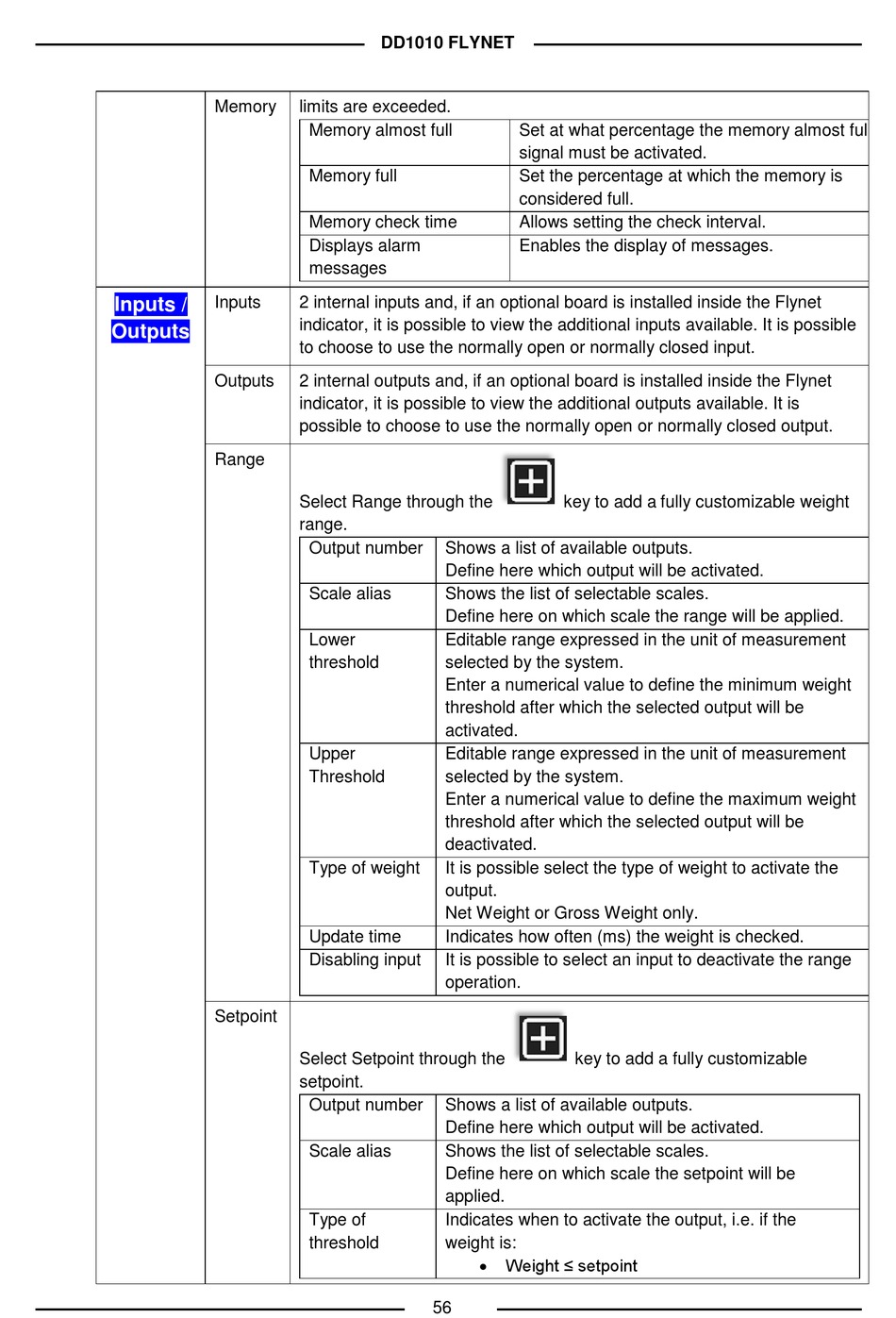

Bilanciai DD1010 FLYNET Use, Maintenance And Installation Manual page 58

Memory
Inputs
Inputs /
Outputs
Outputs
Range
Setpoint
DD1010 FLYNET
limits are exceeded.
Memory almost full
Memory full
Memory check time
Displays alarm
messages
2 internal inputs and, if an optional board is installed inside the Flynet
indicator, it is possible to view the additional inputs available. It is possible
to choose to use the normally open or normally closed input.
2 internal outputs and, if an optional board is installed inside the Flynet
indicator, it is possible to view the additional outputs available. It is
possible to choose to use the normally open or normally closed output.
Select Range through the
range.
Output number Shows a list of available outputs.
Define here which output will be activated.
Scale alias Shows the list of selectable scales.
Define here on which scale the range will be applied.
Lower Editable range expressed in the unit of measurement
threshold selected by the system.
Enter a numerical value to define the minimum weight
threshold after which the selected output will be
activated.
Upper Editable range expressed in the unit of measurement
Threshold selected by the system.
Enter a numerical value to define the maximum weight
threshold after which the selected output will be
deactivated.
Type of weight It is possible select the type of weight to activate the
output.
Net Weight or Gross Weight only.
Update time Indicates how often (ms) the weight is checked.
Disabling input It is possible to select an input to deactivate the range
operation.
Select Setpoint through the
setpoint.
Output number Shows a list of available outputs.
Define here which output will be activated.
Scale alias Shows the list of selectable scales.
Define here on which scale the setpoint will be
applied.
Type of Indicates when to activate the output, i.e. if the
threshold weight is:
56
Set at what percentage the memory almost full
signal must be activated.
Set the percentage at which the memory is
considered full.
Allows setting the check interval.
Enables the display of messages.
key to add a fully customizable weight
key to add a fully customizable

Weight ≤ setpoint
