10.11.2 Stainless steel version with connectors

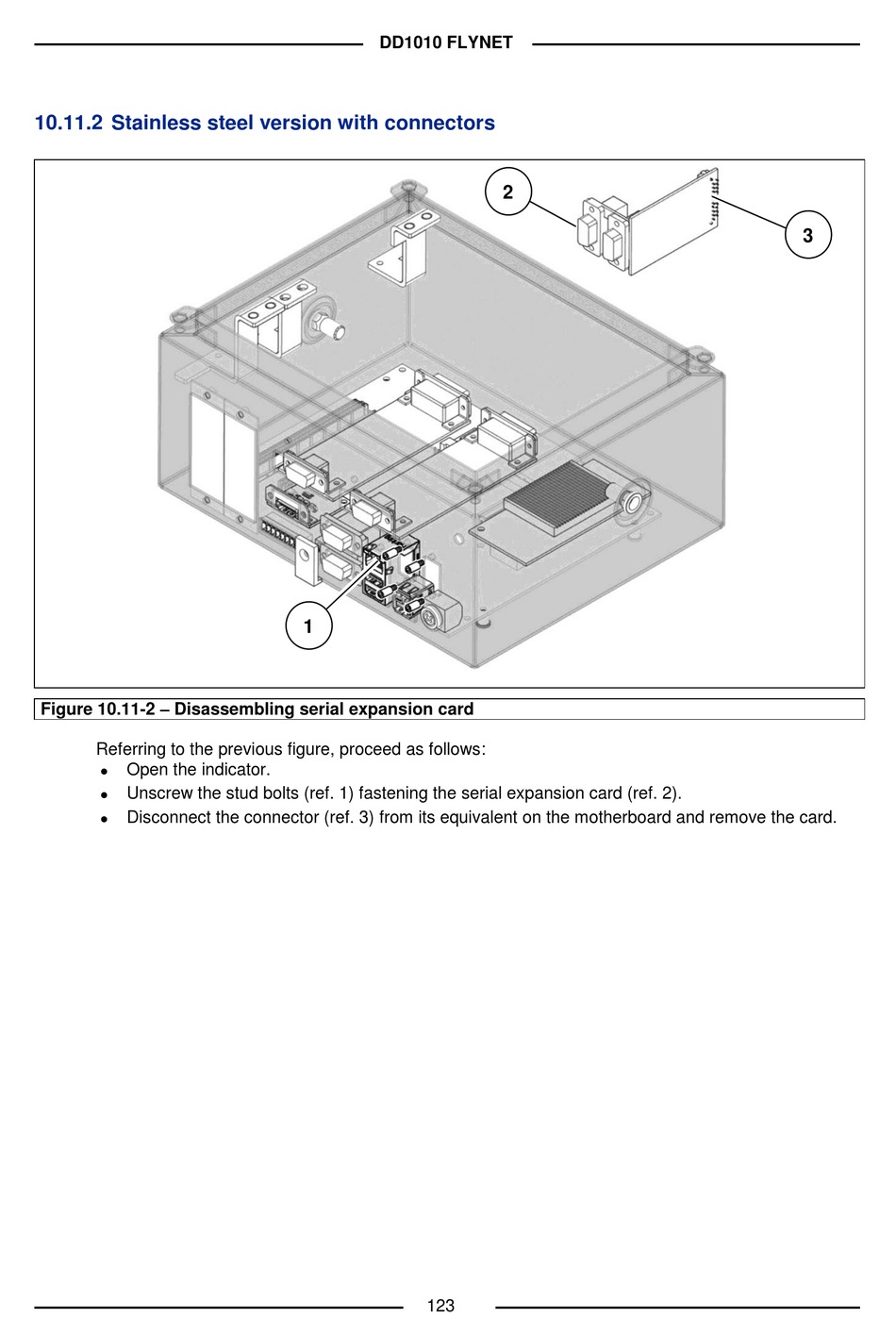

Figure 10.11-2 – Disassembling serial expansion card
Referring to the previous figure, proceed as follows:
Open the indicator.
Unscrew the stud bolts (ref. 1) fastening the serial expansion card (ref. 2).
Disconnect the connector (ref. 3) from its equivalent on the motherboard and remove the card.
DD1010 FLYNET
1
123
2
3
