10.5.2 Stainless steel version
1

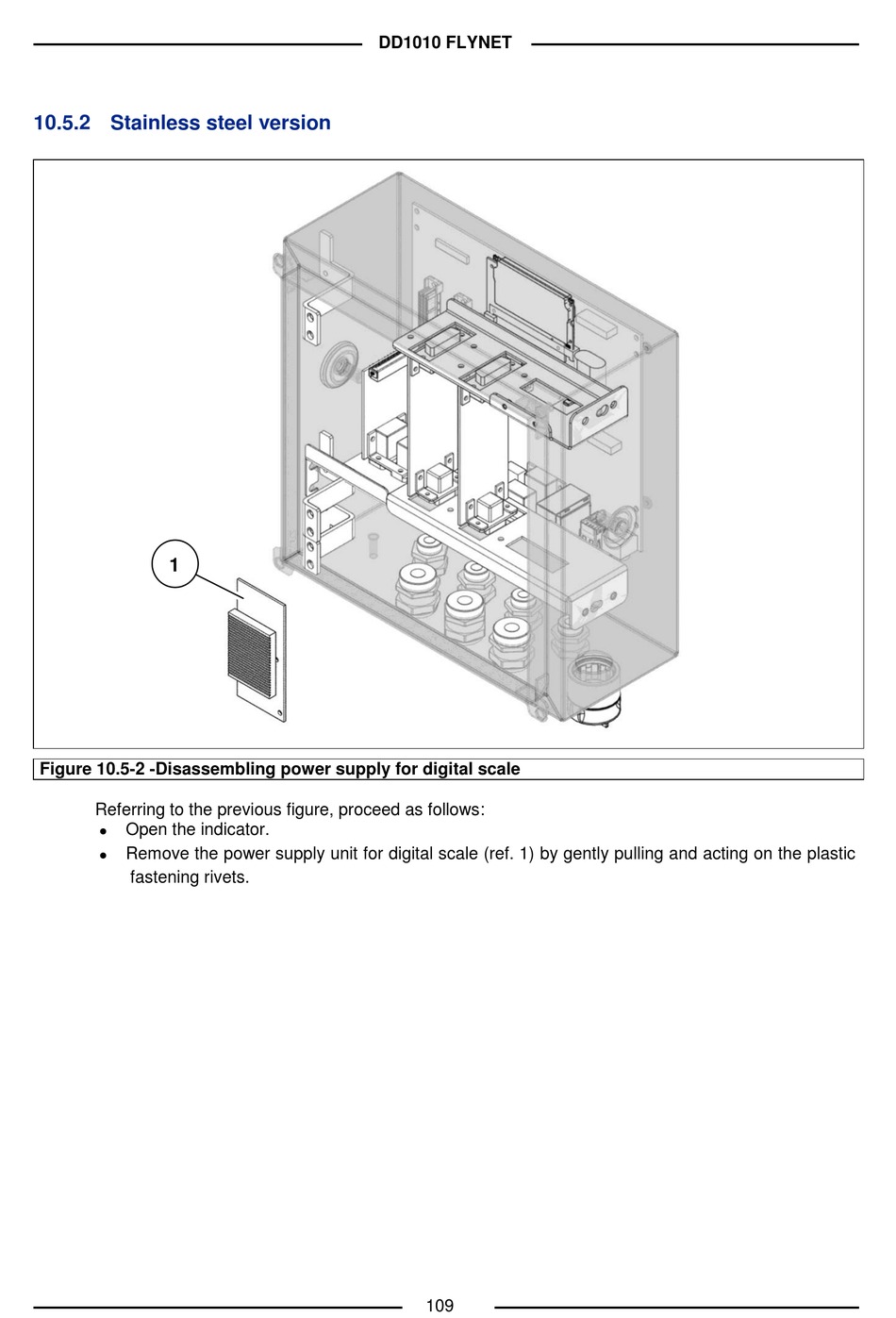

Figure 10.5-2 -Disassembling power supply for digital scale
Referring to the previous figure, proceed as follows:
Open the indicator.
Remove the power supply unit for digital scale (ref. 1) by gently pulling and acting on the plastic
fastening rivets.
DD1010 FLYNET
109
