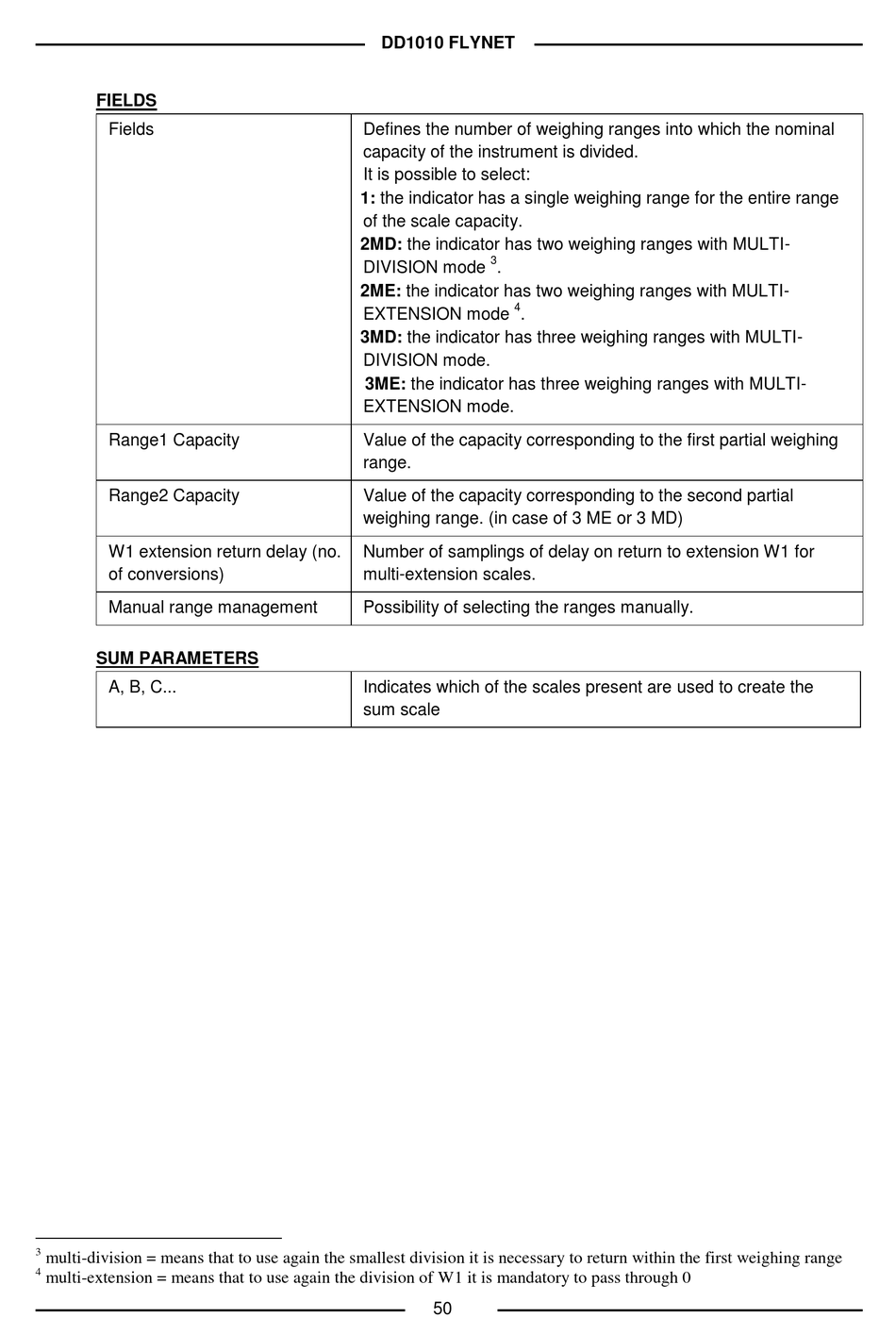

Bilanciai DD1010 FLYNET Use, Maintenance And Installation Manual page 52

FIELDS
Fields
Range1 Capacity
Range2 Capacity
W1 extension return delay (no.
of conversions)
Manual range management
SUM PARAMETERS
A, B, C...
3
multi-division = means that to use again the smallest division it is necessary to return within the first weighing range
4
multi-extension = means that to use again the division of W1 it is mandatory to pass through 0
DD1010 FLYNET
Defines the number of weighing ranges into which the nominal
capacity of the instrument is divided.
It is possible to select:

1: the indicator has a single weighing range for the entire range
of the scale capacity.

2MD: the indicator has two weighing ranges with MULTI-
3
DIVISION mode .

2ME: the indicator has two weighing ranges with MULTI-
EXTENSION mode

3MD: the indicator has three weighing ranges with MULTI-
DIVISION mode.

3ME: the indicator has three weighing ranges with MULTI-
EXTENSION mode.
Value of the capacity corresponding to the first partial weighing
range.
Value of the capacity corresponding to the second partial
weighing range. (in case of 3 ME or 3 MD)
Number of samplings of delay on return to extension W1 for
multi-extension scales.
Possibility of selecting the ranges manually.
Indicates which of the scales present are used to create the
sum scale
