Disassembling digital scale input
10.9.1 Plastic version

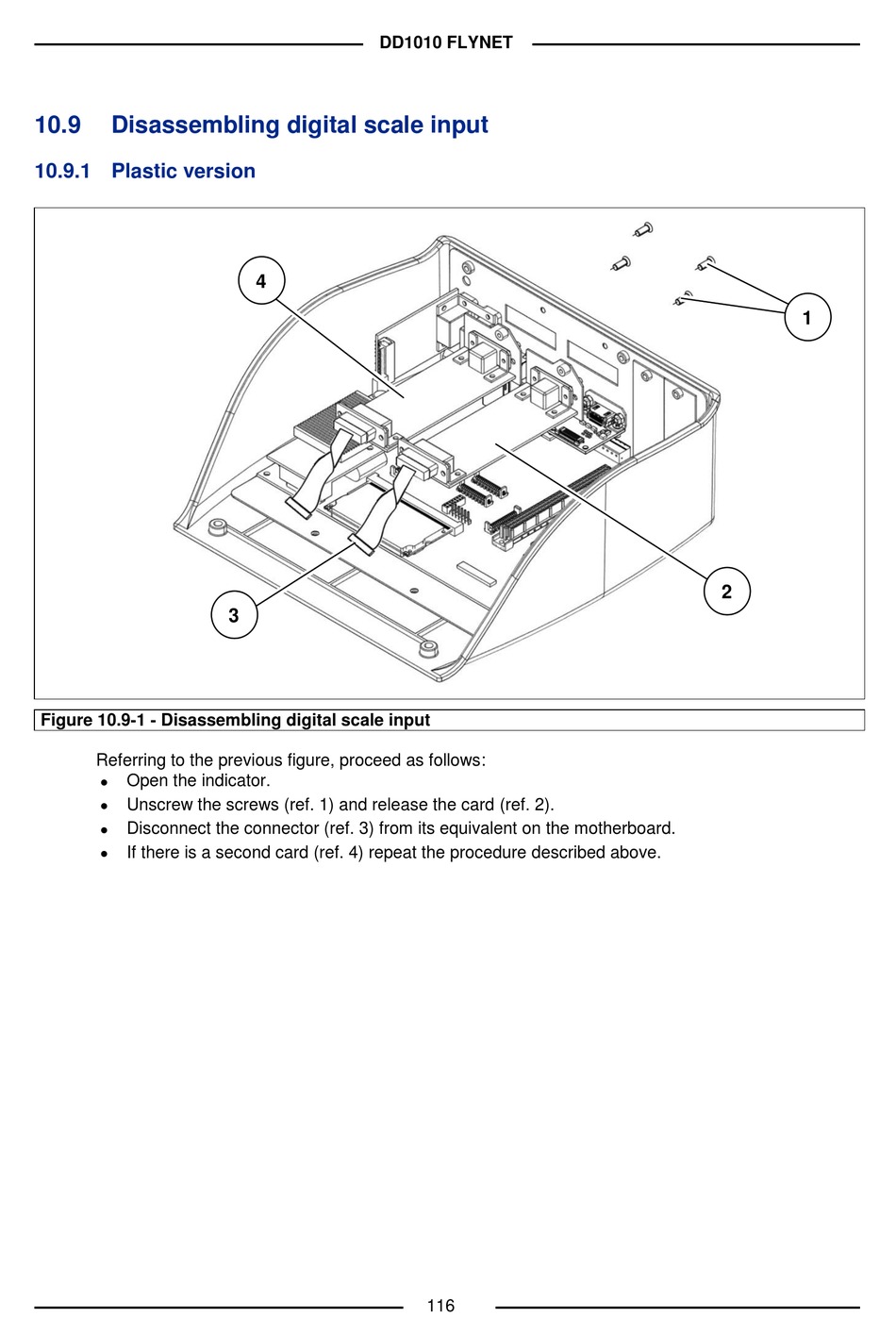

Figure 10.9-1 - Disassembling digital scale input
Referring to the previous figure, proceed as follows:
Open the indicator.
Unscrew the screws (ref. 1) and release the card (ref. 2).
Disconnect the connector (ref. 3) from its equivalent on the motherboard.
If there is a second card (ref. 4) repeat the procedure described above.
DD1010 FLYNET
4
3
116
1
2
