10.13.2 Stainless steel version with connectors

2

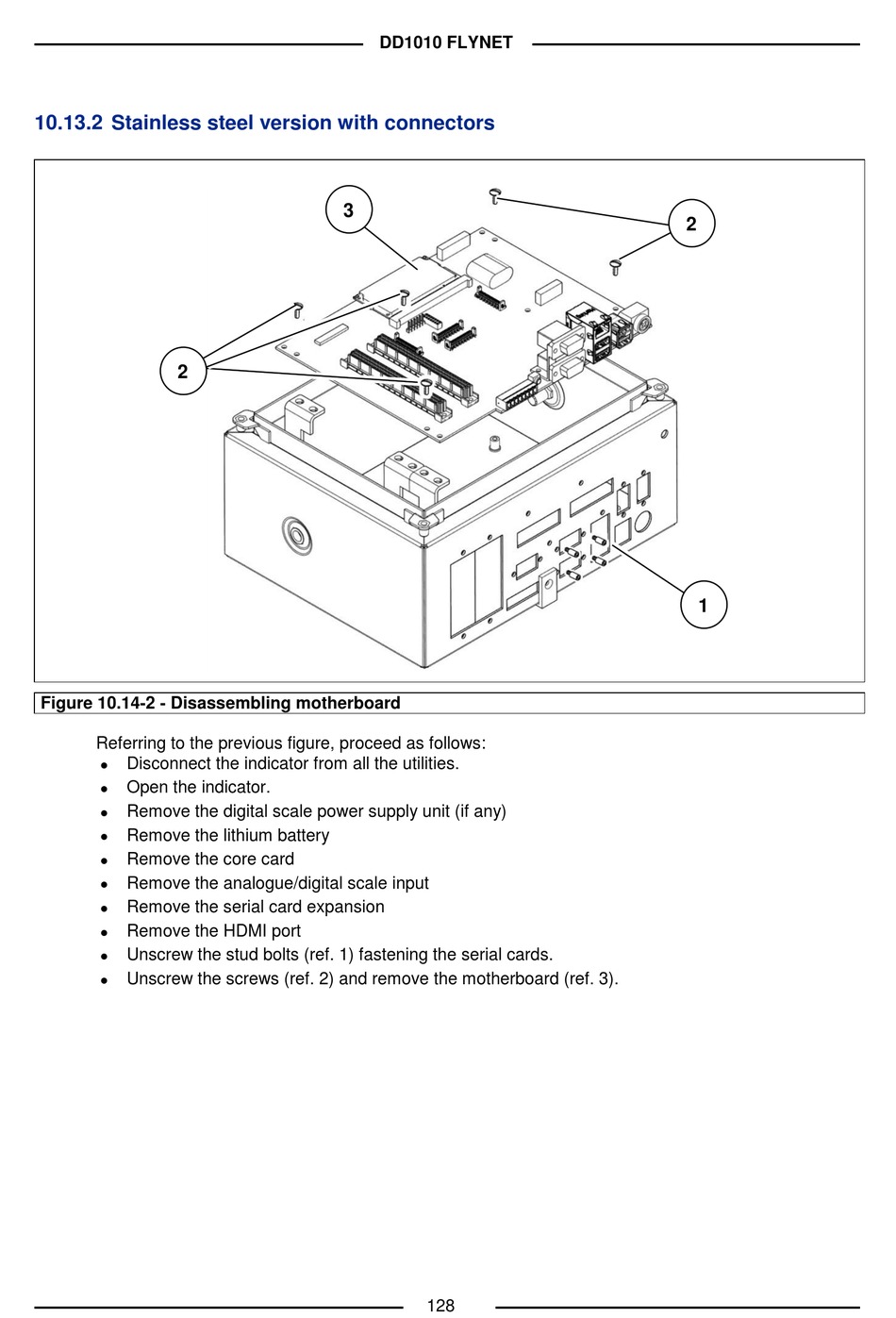

Figure 10.14-2 - Disassembling motherboard
Referring to the previous figure, proceed as follows:

Disconnect the indicator from all the utilities.

Open the indicator.

Remove the digital scale power supply unit (if any)

Remove the lithium battery

Remove the core card

Remove the analogue/digital scale input

Remove the serial card expansion

Remove the HDMI port

Unscrew the stud bolts (ref. 1) fastening the serial cards.

Unscrew the screws (ref. 2) and remove the motherboard (ref. 3).
