10.13.3 Stainless steel version with cable glands

1
3
4

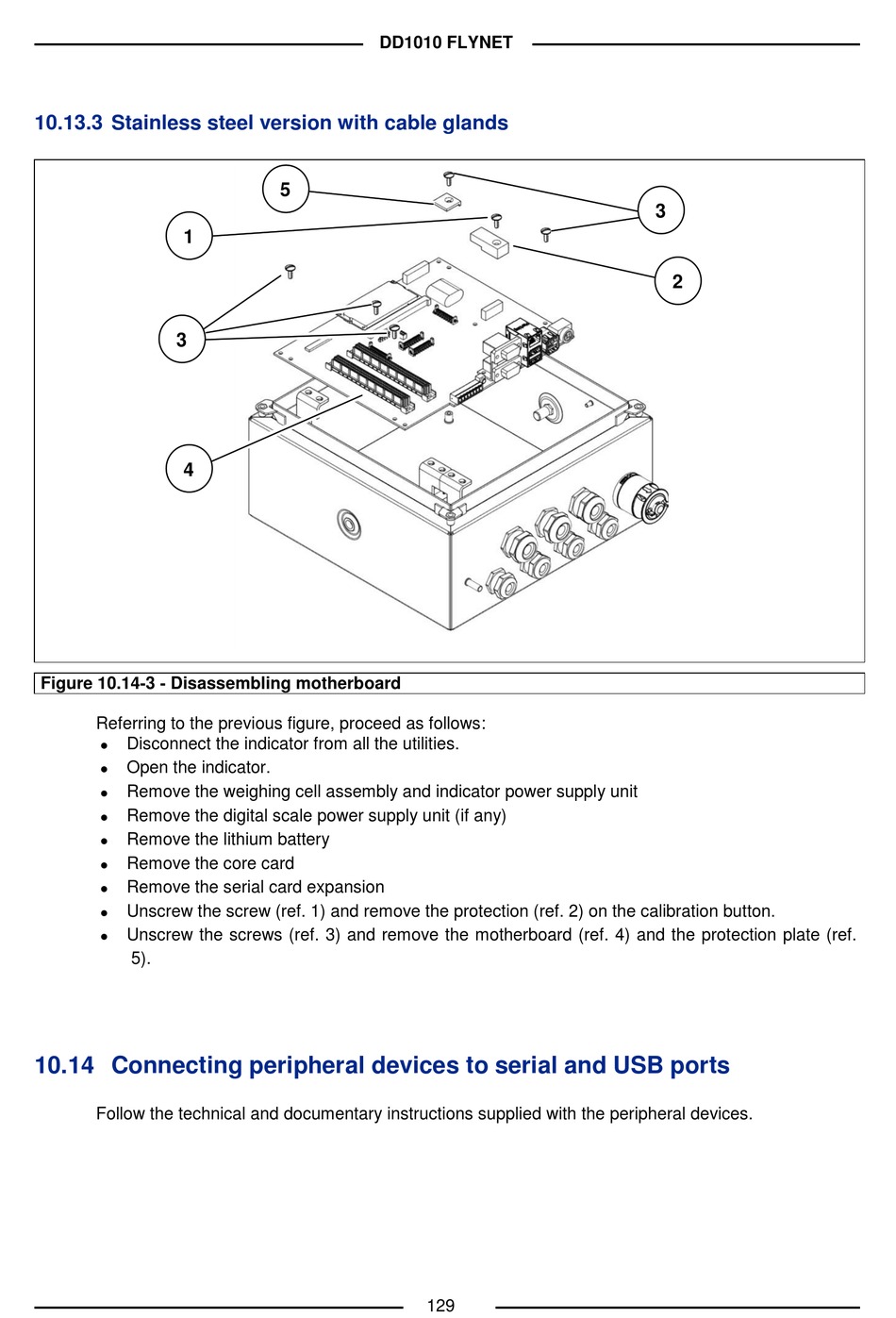

Figure 10.14-3 - Disassembling motherboard
Referring to the previous figure, proceed as follows:

Disconnect the indicator from all the utilities.

Open the indicator.

Remove the weighing cell assembly and indicator power supply unit

Remove the digital scale power supply unit (if any)

Remove the lithium battery

Remove the core card

Remove the serial card expansion

Unscrew the screw (ref. 1) and remove the protection (ref. 2) on the calibration button.

Unscrew the screws (ref. 3) and remove the motherboard (ref. 4) and the protection plate (ref.
5).

10.14 Connecting peripheral devices to serial and USB ports

Follow the technical and documentary instructions supplied with the peripheral devices.
